Sensor Installation
Modline 5
Rev. L6 Feb 2017 41

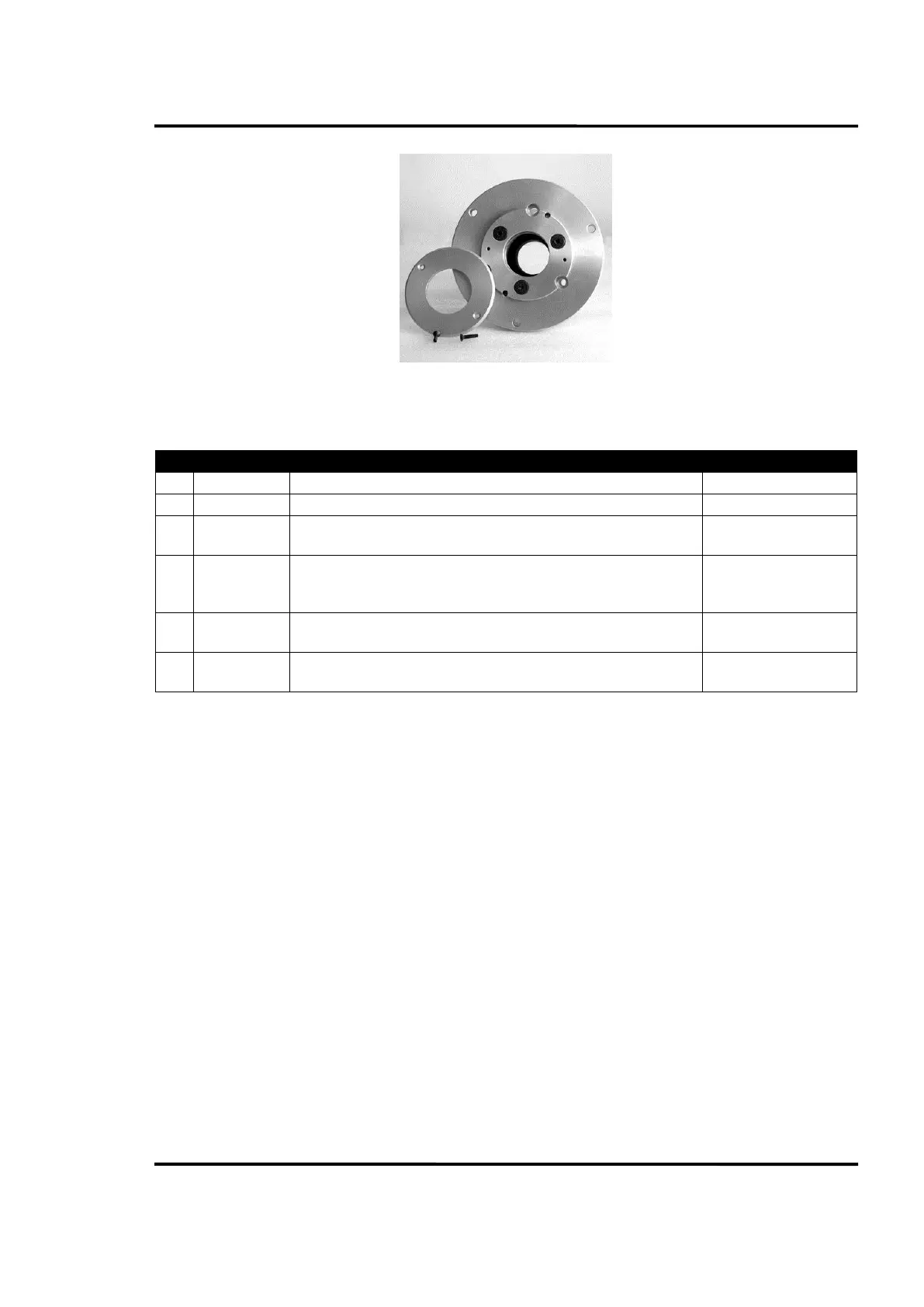

Figure 27: MFL Accessory
Material: Clear Anodized Aluminum
Weight: Approximately 1 pound (0.5 kilograms)
Table 4: MFL Mounting and Assembly Supplied Parts List
Qty
Part No.
Description and use
User Supplied Tools
1
482172
Metal Gasket Cover
2
230312C60
M3 X 12 mm flat head cap screw to secure gasket cover
2 mm hex key wrench
3
230630C60
M6 x 30 mm flat head cap screw to assemble the MFL with the APA
air purge
5 mm hex key, long arm
L style wrench
3
230670C60
M6 x 70 mm socket head cap screw to assemble the MFL to the UAA
and ESA extension sleeve. (Not for use with the WJA. Use last item
below)
5 mm hex key, long arm
L style wrench
3
230620C60
M6 x 20 mm socket head cap screw to assemble the MFL directly to
the WJA water jacket or the UAA adapter.
5 mm hex key, long arm
L style wrench
3
230665C60
M6 x 65 mm socket head cap screw to assemble the MFL to WJA
water jacket with ESA extension sleeve.
5 mm hex key, long arm
L style wrench
