ircon Modline 5 - Page 61

Sensor Installation
Modline 5
Rev. L6 Feb 2017 59
Figure 51
Insert Sensor into the WJA assembly with moderate force until it “snaps” into the
spring catch. Secure the Sensor rear protection and sighting window. Swing safety
clamp into position and tighten.

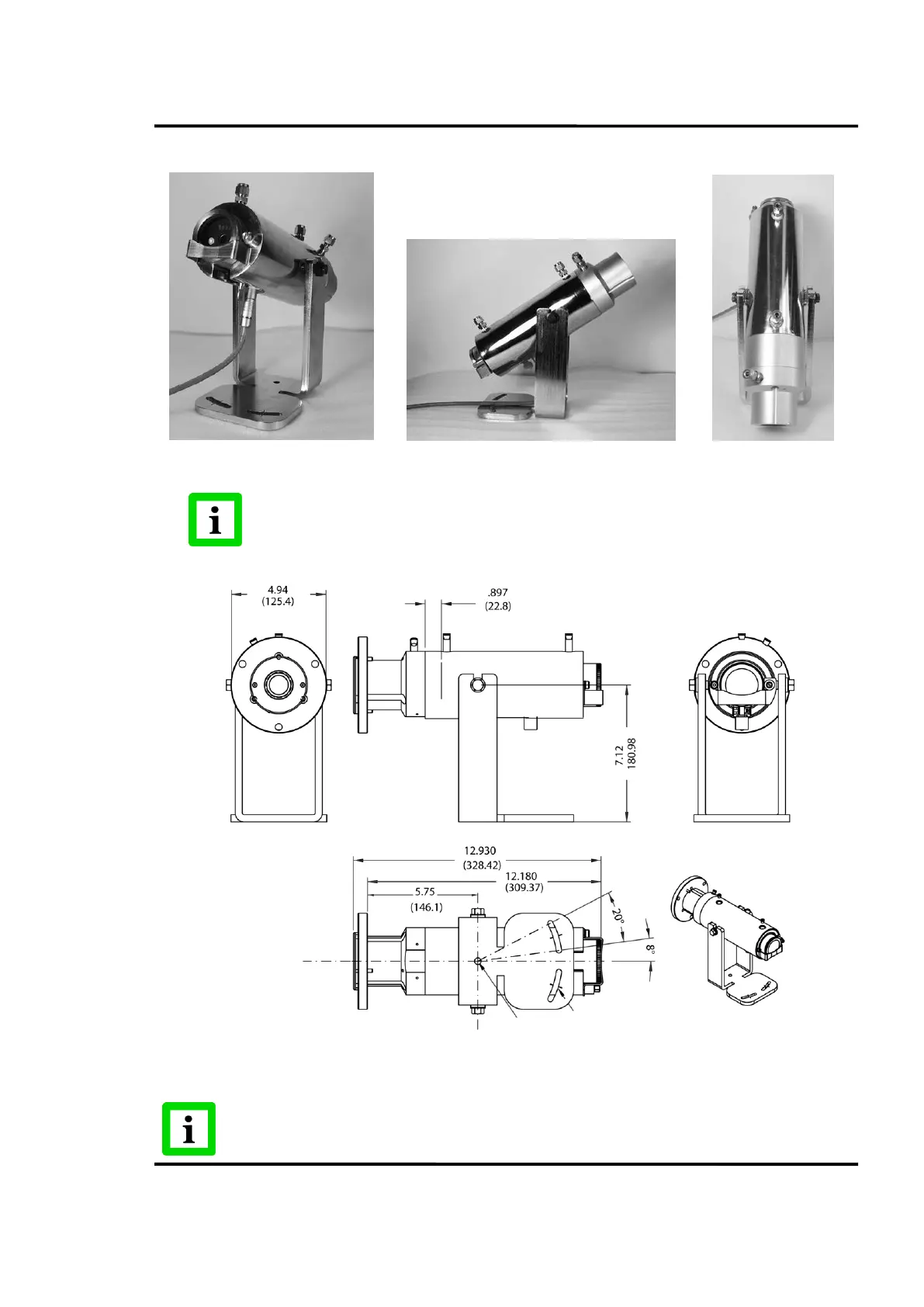

Figure 52: Group 18 shown (BMA, WJA and MFL).
Dimensions are in inches and (millimeters). Do not scale.
See individual Accessory drawings.
Front of Sensor (without DWD) with Reference to WJA
Through Holes for 5/16 Inch or M6 Bolts (3 Places)
Sensor Axis of
Rotation
(Also Optical Axis)
WJA Mounting Axis
Dia.
