Sensor Installation
Modline 5
Rev. L6 Feb 2017 49
Figure 37
The ESA is also used with the MFL Flange when as an interface with the Right Angle Mounting Bracket.
Material: Clear Anodized Aluminum
Weight: Approximately 1 Pound (0.5 kg)
Mounting and Assembly Supplied Parts List:
No hardware is supplied with the ESA.
Assembly screws are supplied with the APA and MFL.

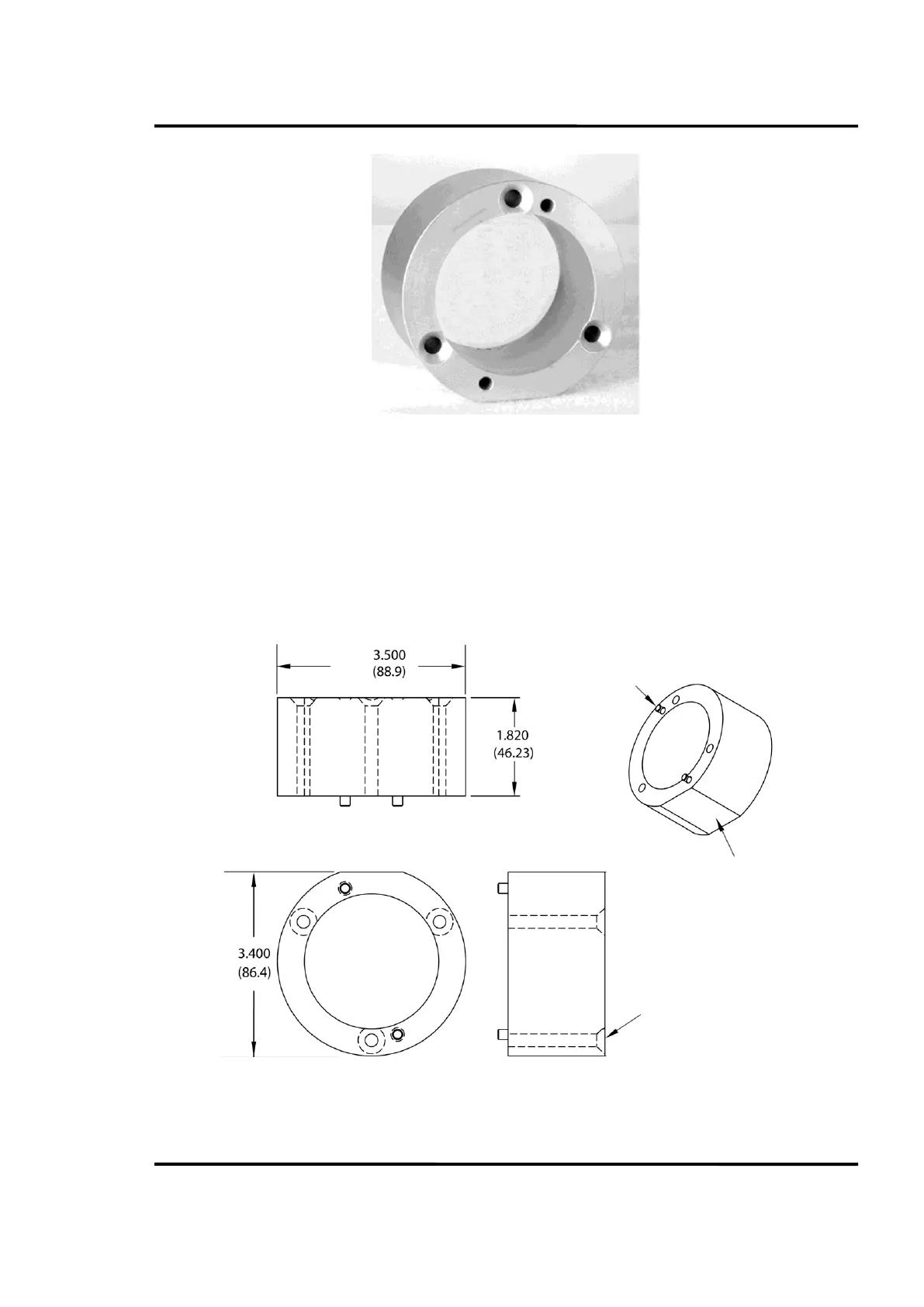

Figure 38: ESA Dimensions
