Sensor Installation
Modline 5
Rev. L6 Feb 2017 53
Accessory Illustrations for Groups using WJA:

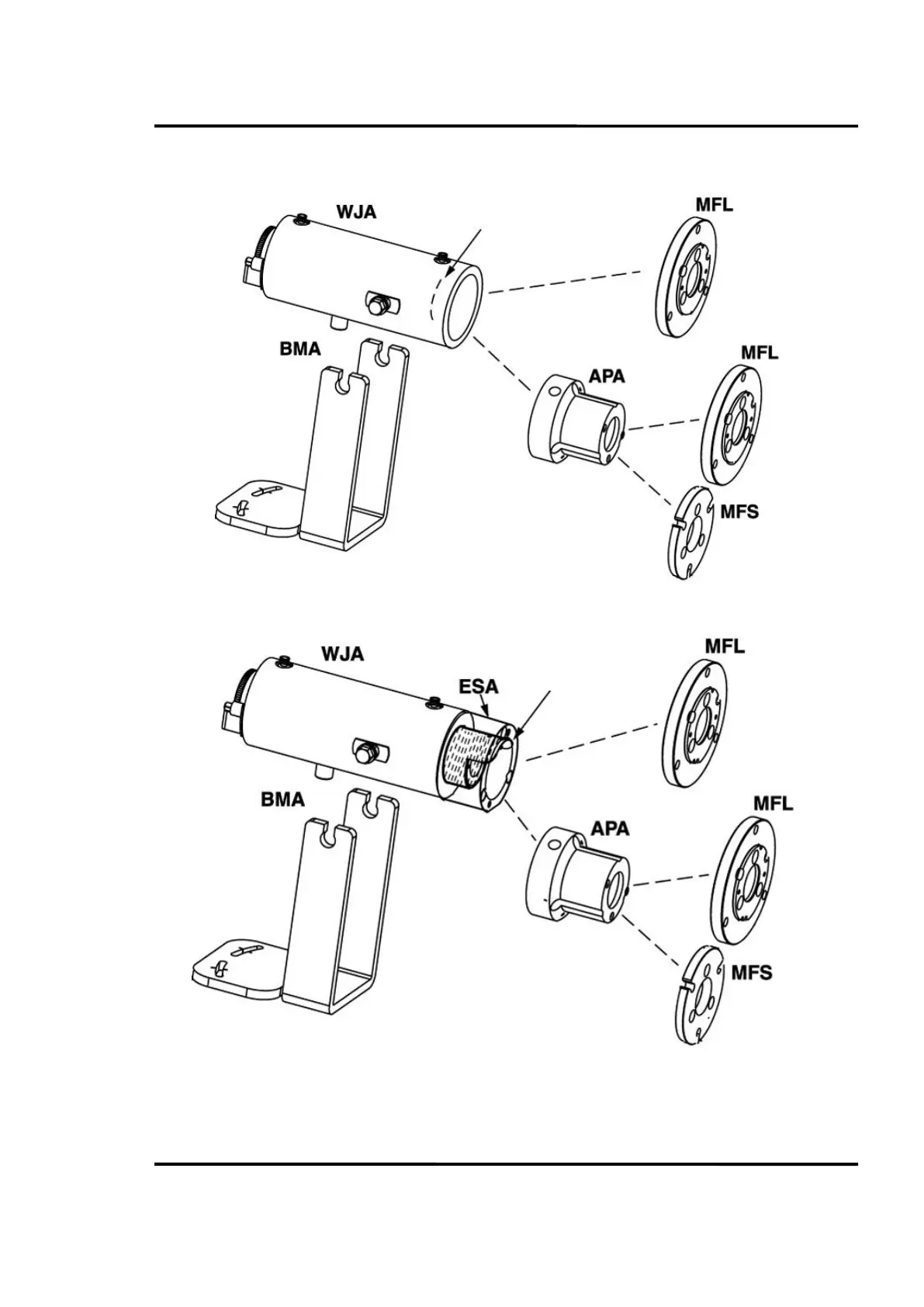

Figure 41: Sensor without DWD – WJA Accessory Groups 11 through 18
Figure 42: Sensor with DWD – WJA Accessory Groups 11, 12, 13, 15, 16, 17, 18
Front of Sensor
Front of Sensor
