ISHIDA INS-100 - Replacing the Transformer

Chapter 3 MAINTENANCE

3.5 Replacing the Transformer
 Disassembly procedure
1. Remove the connector CN2 on the main
board.
2. Cut the harness binding clip.
3. Remove the screw of the clamp.
4. Remove the 2 transformer input lead wires
using the soldering tool.
5. Remove the transformer by removing the 2
screws.

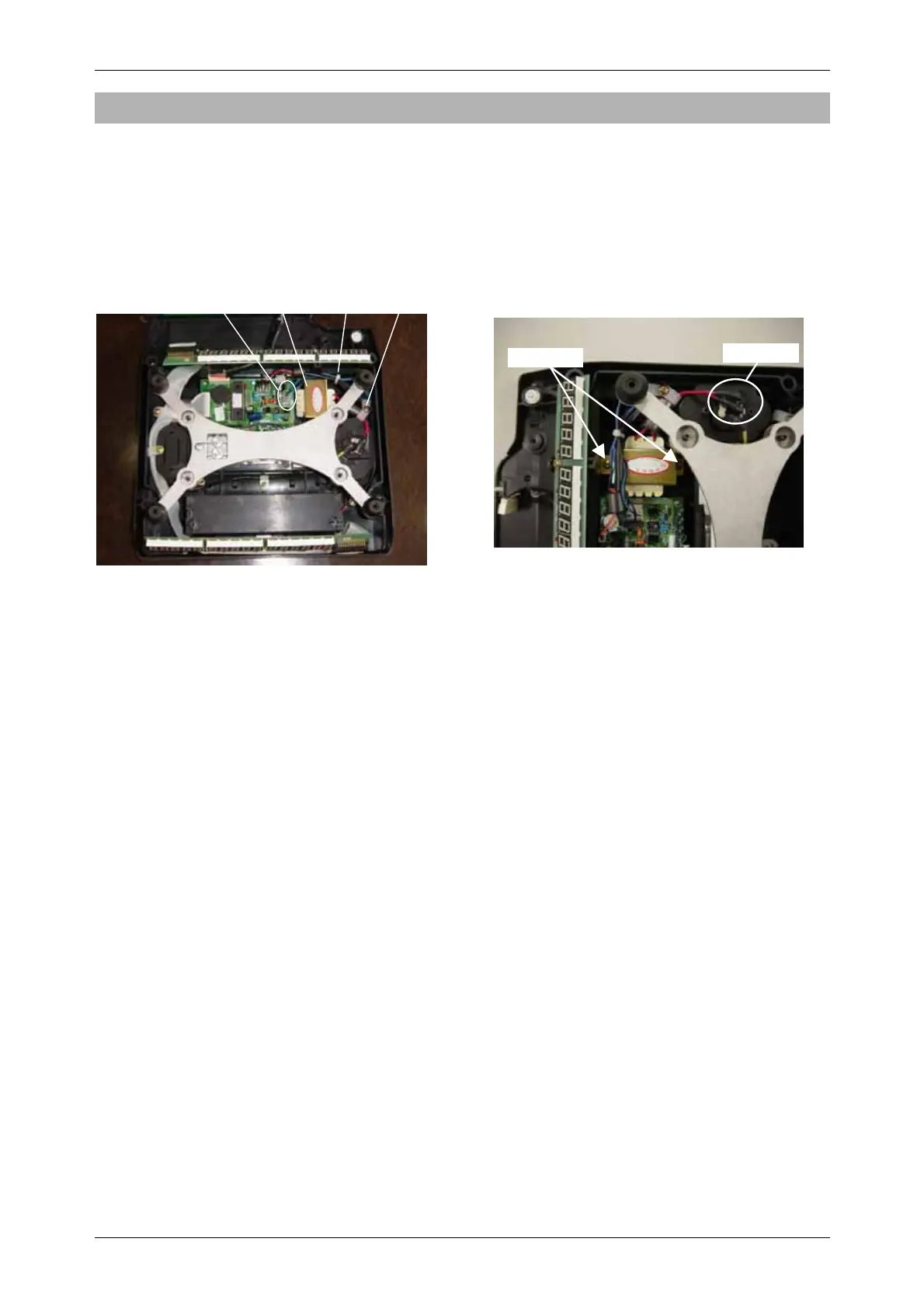

CN2 Transformer Clip Screw
Lead wires
Screws
 Assembly procedure
1. Fix the transformer with the 2 screws.
2. Solder the 2 transformer input lead wires.
3. Fix the clamp with the screw.
4. Bind harnesses with the binding clip.
5. Insert the CN2 connector on the main board.
30 INS-100 Service Manual No. 085-6692-09
