Inspection and Installation
• Before connecting test cables, be sure to switch off the power
supply. Power switch is in Off position, otherwise touching
the output terminals on the rear panel may result in personal
injury or death due to electric shock.
• To avoid electrical shock, before testing, please make sure
the rating values of the testing lines, and do not measure the
current that higher than the rating value. All test lines shall be
capable of withstanding the maximum short circuit output
current of the power supply without causing overheat.
• If several loads are provided, each pair of load wires shall
safely withstand the rated short circuit output current of the
power supply under full load.
• To avoid battery short circuit, be sure to check that the test
line end is not connected when connecting or disassembling
the test line. When the test line end is connected with battery,
short circuit may cause severe accident.
• Always use test lines provided by ITECH to connect the
equipment. If test lines from other factories are used, please
check that the test line can withstand maximum current.
• During wiring, check that the anode and cathode of the test
lines are properly and tightly connected; anode ON and
cathode OFF are prohibited.
Specification
Test cables are not standard accessories for the instrument. Please select
optional red and black test cables for individual sales based on the maximum
current value. For specifications of test cables and maximum current values,
refer to the A.1 Specifications of Red and Black Test Cables in chapter A Ap-
pendix for more information.

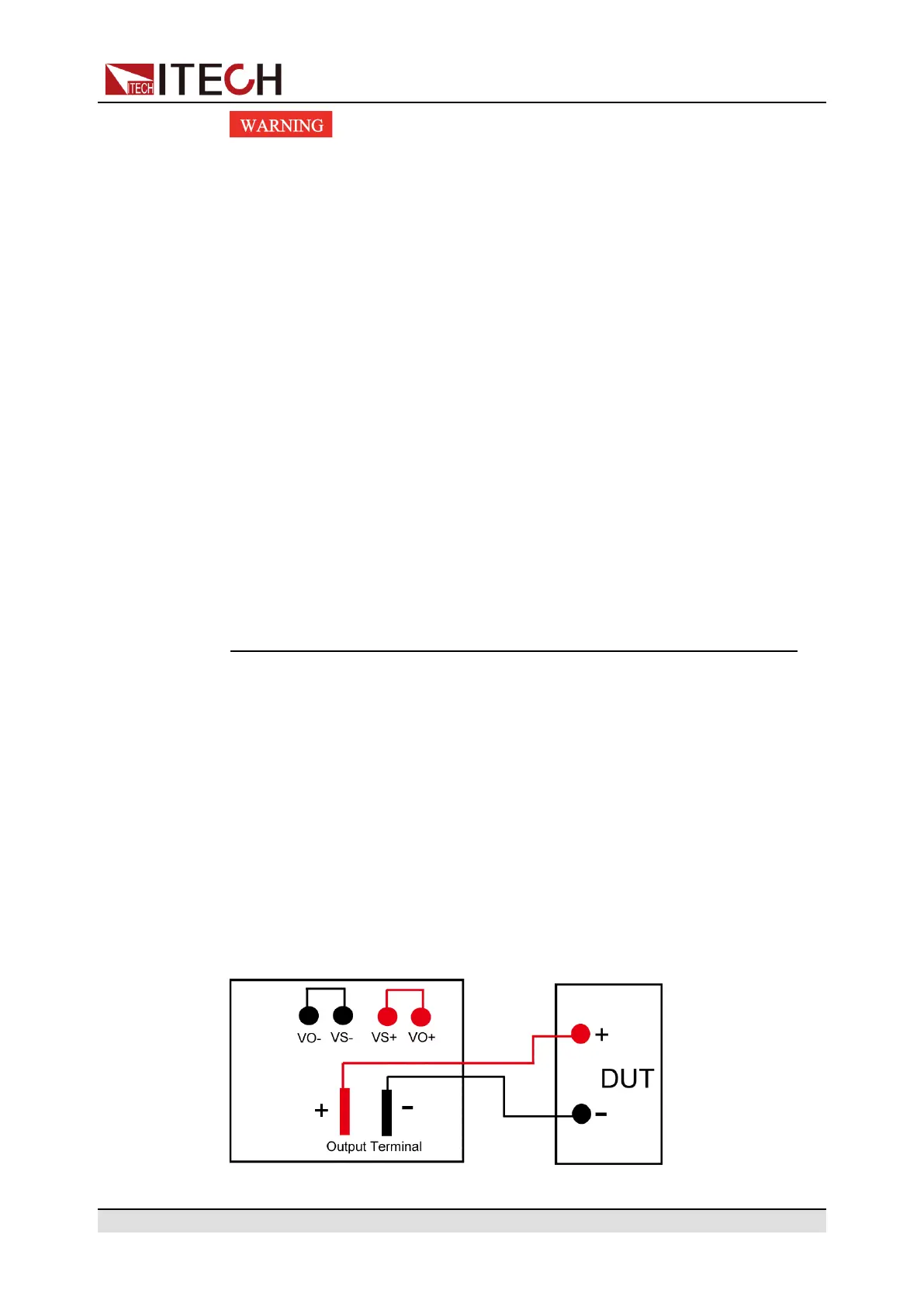

Local Measurement
The connection diagram and steps of local sensing are as follows:
Copyright © Itech Electronic Co., Ltd.
6
