Inspection and Installation

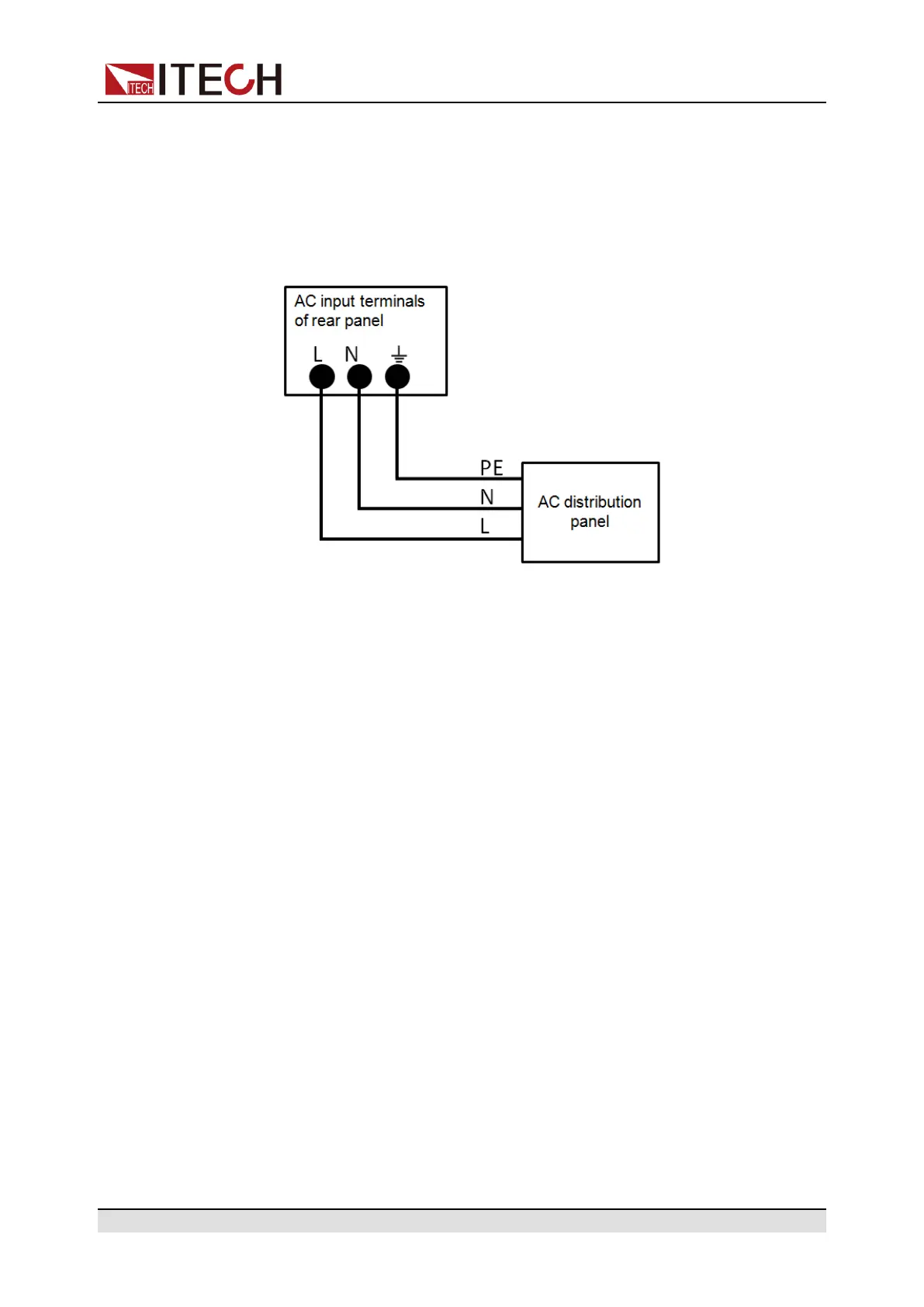

1. See the below illustration, one end of the AC power cord is connected to
the AC input terminal in the rear board of the power supply. Connect the
fire wire, zero line and ground to the corresponding terminal of the
device.
2. Connect the plug on the other end of the power cord to your AC 220V
power source. Connect the three terminals brown to line (L), blue to
neutral (N), and yellow-green to ground (PE) on the other end of the
power cord to your AC distribution panel.
1.4 Connecting the Device Under Test (DUT)
Precautions
To prevent electric shock and damage to the instrument, observe the following
precautions.
