3.20.4 SAEJ1113-11 Waveform protocol
When recalling this waveform, to ensure the validity of the waveform，the
user needs to enable the internal load function at first and then set the
current of internal load to the maximum value. Please refer to 3.9.8 Load
Function for the detailed operation.

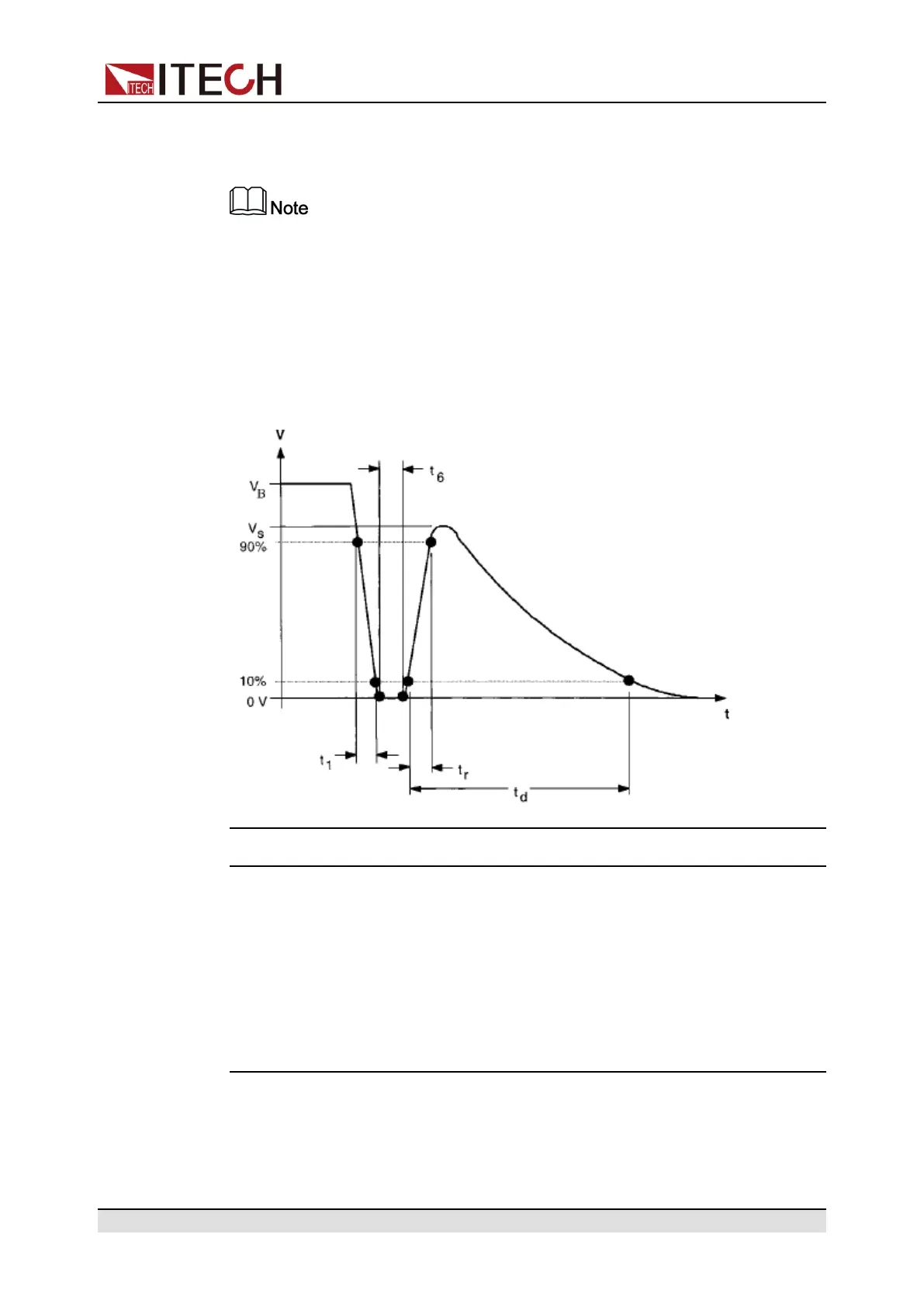

Test 2b
Transient from DC motors acting as generators after ignition switch OFF
Parameters 12V System 24V System
V
S
10V 20V
R
i
≤0.05Ω ≤0.05Ω
t
d
0.2 to 2s 0.2 to 2s
t
1
1ms±50% 1ms±50%
t
r
1ms±50% 1ms±50%
t
6
1ms±50% 1ms±50%
Test 4
Starter motor engagement disturbance pulse.
