Function and Features
0.9U
low
, and so on. As shown in the figure, drop the voltage from U
low
to 0V by
5% and raise the voltage to U
low
. The Rise and Fall time shall be between 10ms
and 1s.
• t: time (in s)
• Y: U
low
, %

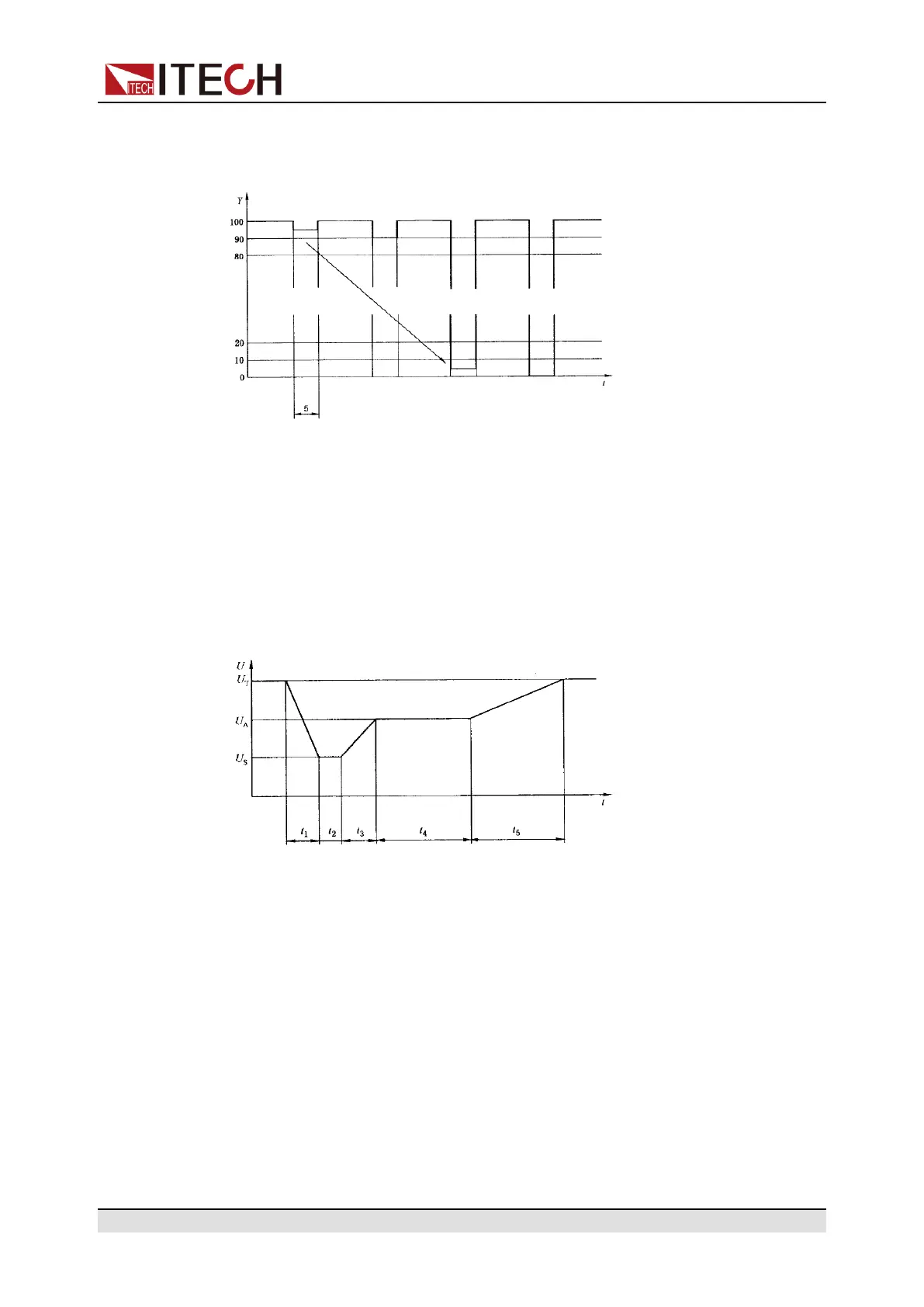

Start-up Characteristics
Detect DUT characteristics before and after vehicle startup.
Apply the startup characteristic parameters as shown in the figure and table to
related input terminals of the DUT simultaneously.
• t: time (in s) t1: 5ms
• U: voltage (in V) t2:15ms
• U
s
: 18V t3: 50ms
• U
A
: 21V t4: 10000ms
• UT: 42V t5: 100ms
