ITech IT8811 User Manual

Function and Features
Copyright © ITECH Electronic Co., Ltd. 23
10A
5A
TRG
TRG

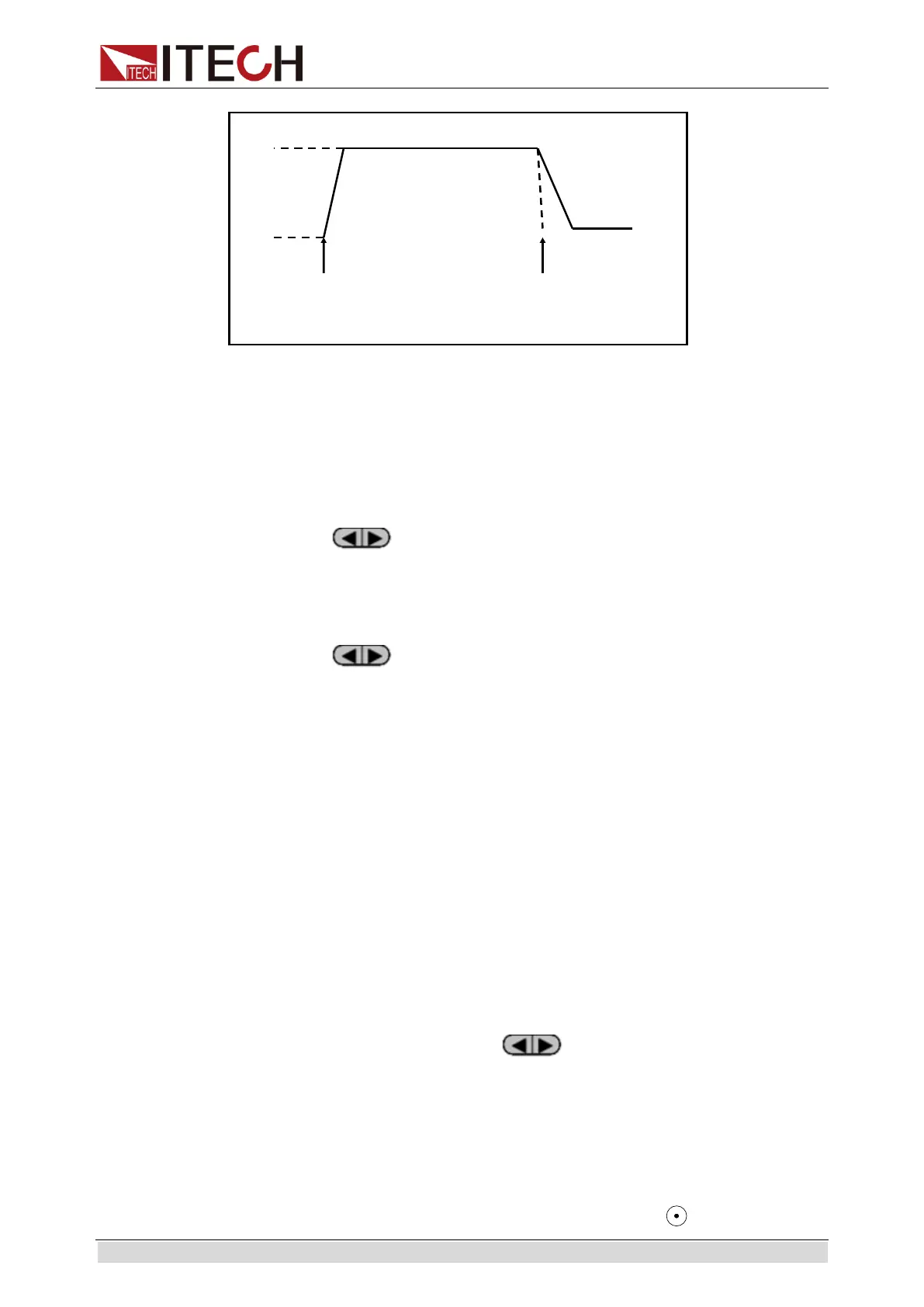

Toggled Transient Operation
Taking CC mode as example (operations under other modes are similar), when
output voltage and current of the tested instrument are 10 V and 3 A
respectively, the load current will switch from 1 A and 2 A. Set the dynamic test
parameters and perform the test as follows:
1. Press [Shift] + [2] keys.
TRANSITION
On Off
2. Operate
key and move it to on. Press [Enter] key and move the
cursor to Toggle. And press [Enter] key (The Trig lamp that indicates VFD
screen status is on)
TRANSITION
Continuous Pulse Toggle
3. Operate
key and select high rate and low rate. Move to the
High-Rate and press [Enter] key.
TRANSITION
High-Rate Low-Rate
4. Set ascending slope and press [Enter] key.
TRANSITION
Rise up=30.000A/uS
5. Set descending slope and press [Enter] key.
TRANSITION
Rise down=30.000A/uS
6. Set A value and press [Enter] key.
TRANSITION
Level A=1A
7. Set B value and press [Enter] key.
TRANSITION
Level B=2A
8. Start dynamic test and operate
key. Move to On and press
[Enter] key.
TRANSITION
On Off
9. Enter the dynamic test mode.
10.0000V 0.0000A
0.00W 0 TRAN
10. Press [On/Off] key to open input and press [Shift] +
key (Triggering
