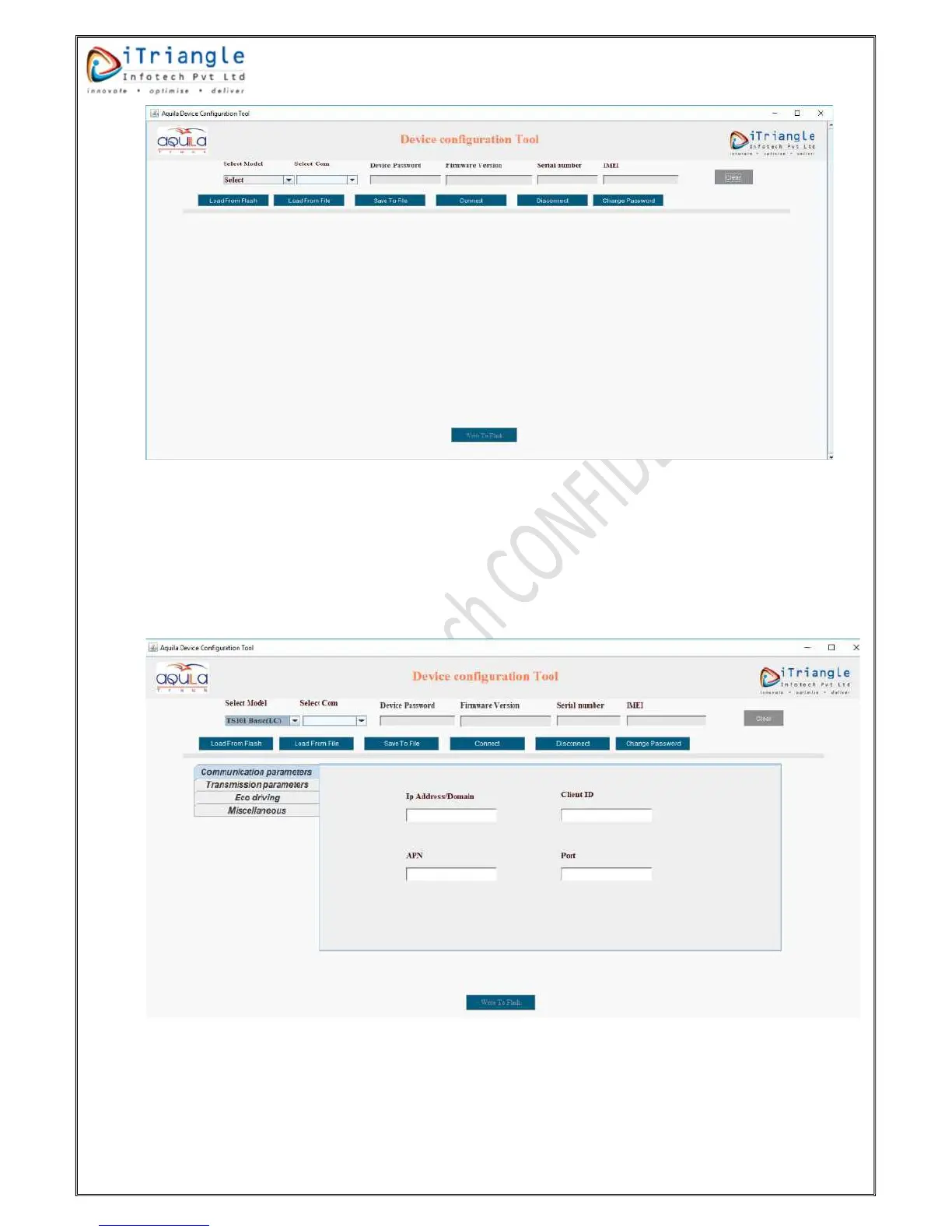

Figure 22:Device configuration tool
The device configuration tool contains below options.
 Select Model: This dropdown is used to select the model of the device which need to be
configured. TS101 Basic(GC) should be selected to configure the device. Once the device
is selected different configuration option will be populated in the configuration area.
Below is the figure of the populated interface after selecting the device model. By
default, all the configuration parameters will be shown as blank.
Figure 23:Model Selection
