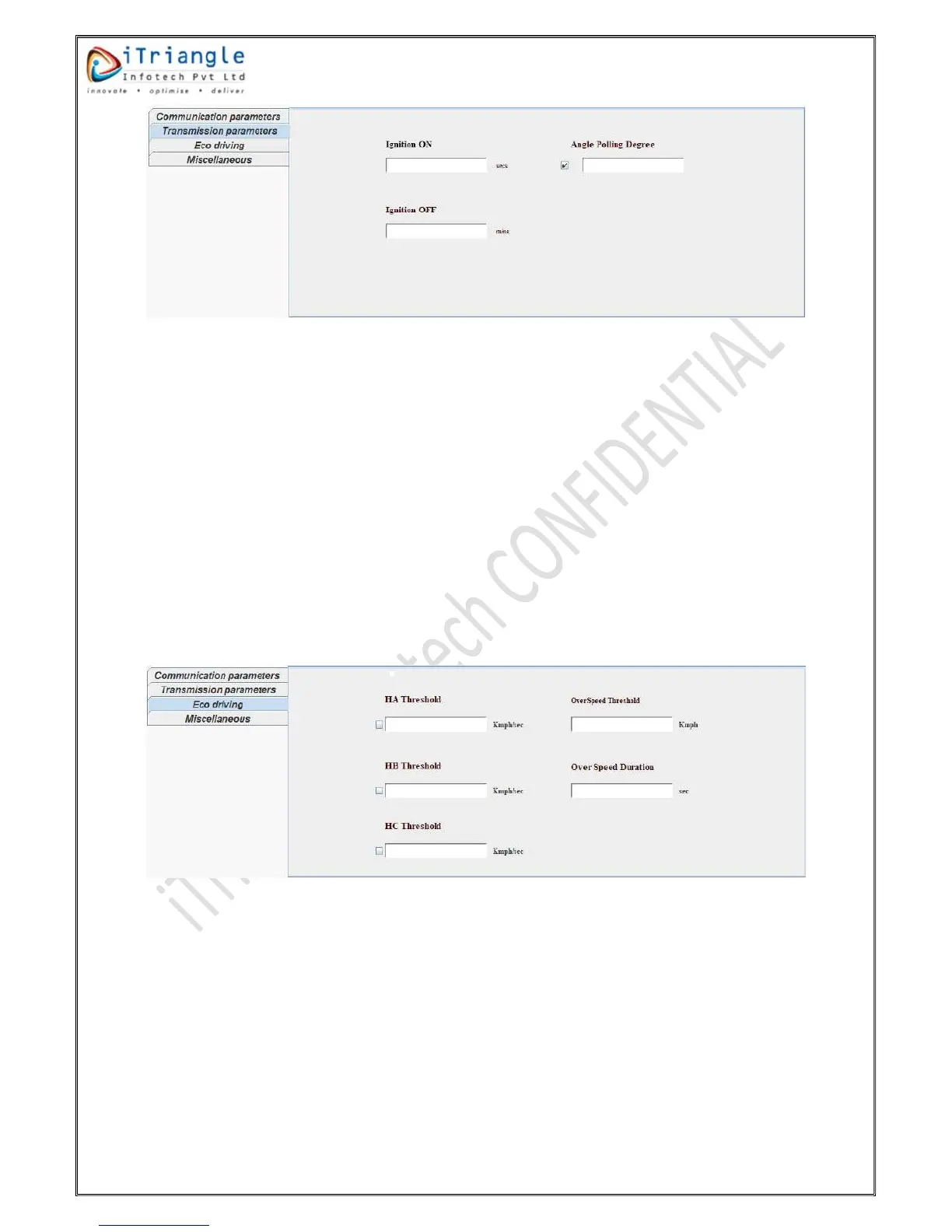

Figure 28:Transmission parameters
Ignition On interval: This parameter is used to configure the data transmission interval when
the ignition is ON. This should be configured in seconds.
Ignition off interval: This parameter is used to configure the data transmission interval when
the ignition is OFF. This should be configured in minutes.
Angle Polling: This parameter configuration contains 2 fields. One is enable/disable
checkbox. If the checkbox is ticked the angle polling will be enabled and vice versa. The
second parameter is an entry field in which the heading threshold value is entered. If the
heading value changes more than the threshold an event packet will get generated.
7.5.2.3 Eco Driving
This group contains configuration parameters related to eco driving. Please find the below figure for
the reference. The source for all the events/alerts is the GNSS data. Device will not use the
accelerometer data for generation of below events.
Figure 29:Eco Driving
HA Threshold: This parameter configuration contains 2 fields. One is enable/disable
checkbox. If the checkbox is ticked the Harsh Acceleration will be enabled and vice versa.
The second parameter is an entry field in which, harsh acceleration threshold value in
kmph/sec is entered. If the Acceleration value changes more than the threshold an event
packet will get generated.
HB Threshold: This parameter configuration contains 2 fields. One is enable/disable
checkbox. If the checkbox is ticked the Harsh Braking will be enabled and vice versa. The
second parameter is an entry field in which, harsh braking threshold value in kmph/sec is
