iTriangle Infotech Pvt Ltd
Interface 42 of 43
Note: Engineering Documents are Highly Confidential
Connect the device power/ground wire before cut-off switch to proper operation (For
commercial vehicles) functionality of the device. Ensure that the connection is firm and
insulated properly. Please find the below figure for your reference.

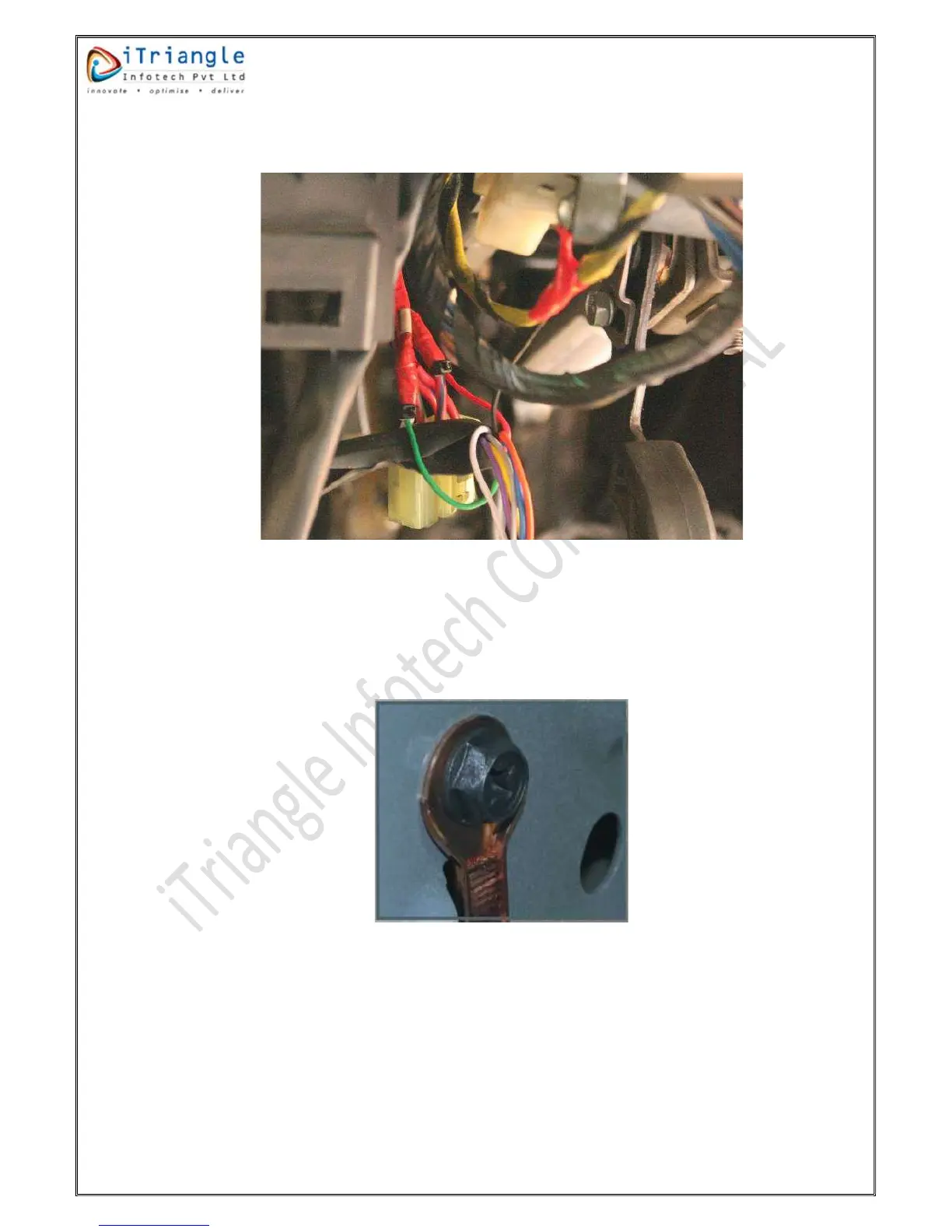

Figure 42:Power connection
8.3.2 Ground Connection
Its good use the chassis ground to connect the ground wire.
To connect the -ve terminal of the device, connect a lug properly crimped to the negative
wire of the device and screw it to chassis using crews or a bolt. Ensure that connection is
good and stable.
Figure 43: Chassis ground connection
8.3.3 Ignition Connection
Identify the ignition wire by with the help of multi-meter.
Make sure that you will get power in the wire identified only when the key is in “ON”
position.
Connect the device’s green wire to the identified wire in the vehicles.
