8.1.4 Materials required
Cable Ties
Insulation tapes
Conduit plastic/metal tubes (As per requirement)
Wires for extension of field wiring harness.
Self-tapping screws (As per requirement)
8.2 Installation Instructions
8.2.1 General
The device has internal GSM and GNSS antenna.
Internal battery terminal should be connected to the PCB.
SIM card should be inserted in the SIM card slot.
Device should be configured and ready for installation.
8.2.2 Installation Location in the vehicles
8.2.2.1 Preferred location
Behind the dashboard
On top or behind the glove box compartment.

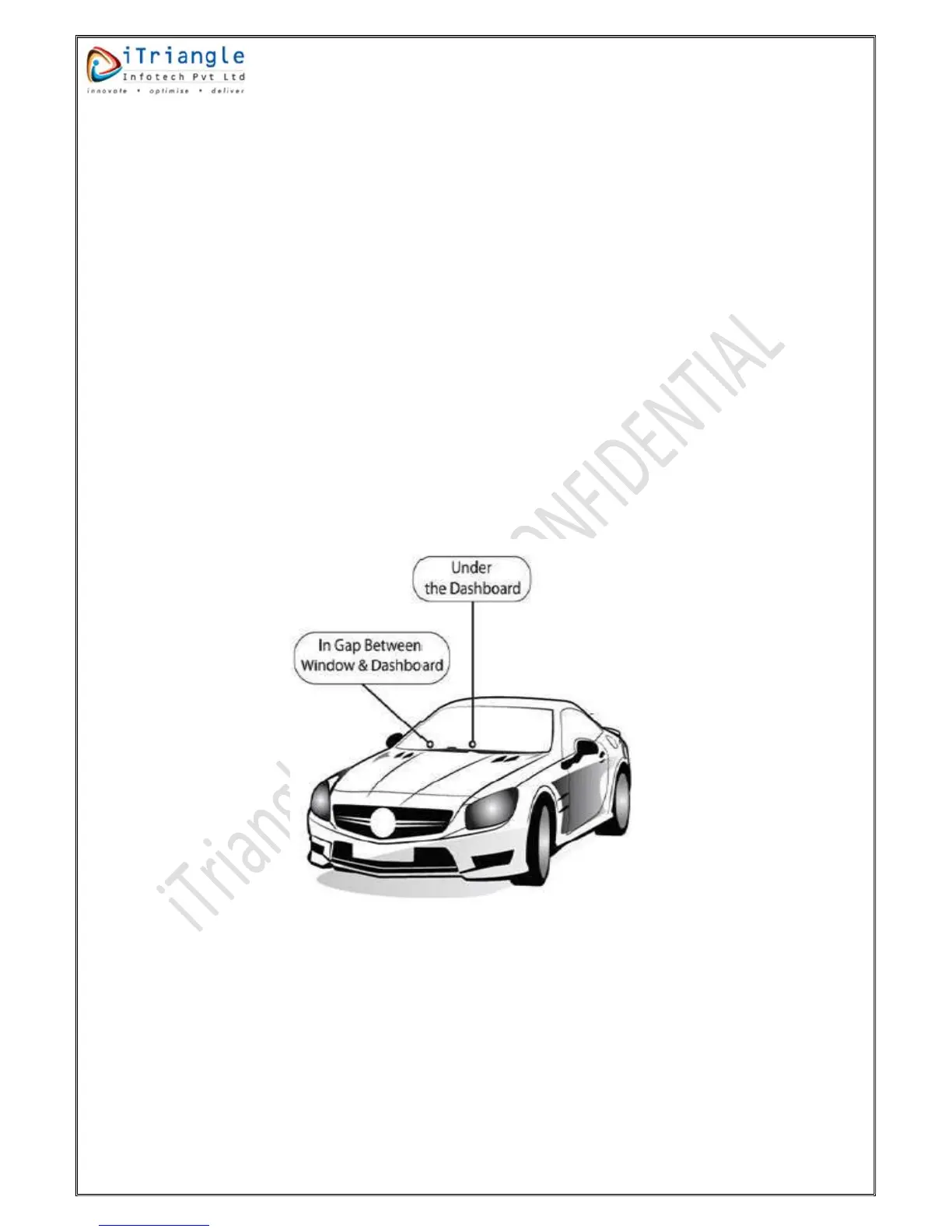

Figure 33: Preferred location for installation in LMV
