iTriangle Infotech Pvt Ltd
Interface 40 of 43
Note: Engineering Documents are Highly Confidential
8.2.4 SIM Card Insertion Scheme
While inserting the SIM card, if the SIM card has the Nano SIM cut, then please use Sellotape on top
of micro SIM card. Otherwise there are the chances of Nano SIM will come little out of the Nano
holder, intern there will be issues in SIM card detection by the device.

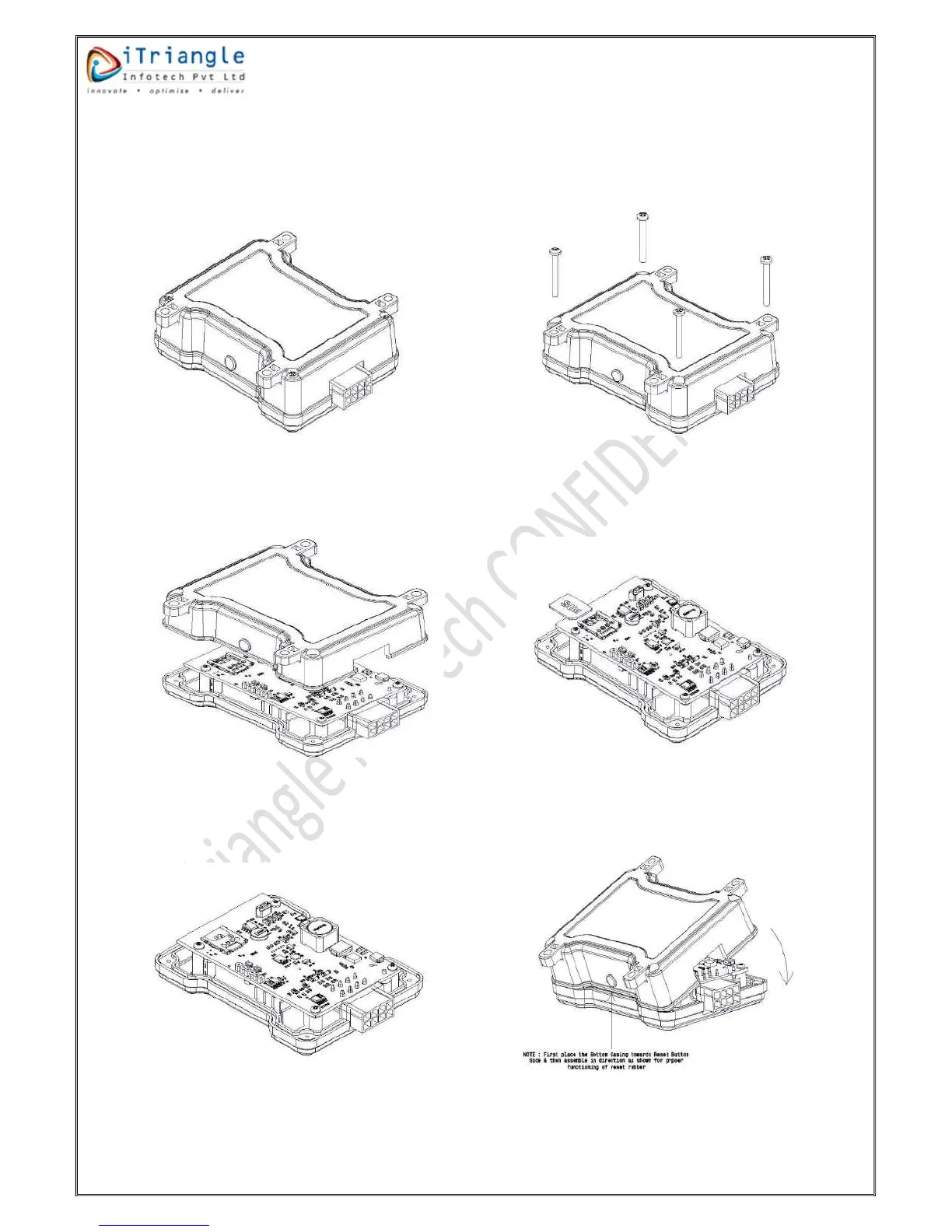

Figure 35: Unfasten the screws using Star screwdriver Figure 36: Separation of the screws from
casing
Figure 37: Remove back covers Figure 38: Inserting SIM card
Figure 39: Inserting the SIM card in to the holder Figure 40: Put back the back cover
