ITRON ACE6000 User Manual

ACE6000 User Guide
72
4 wire asymmetrical (VDE) current transformer configuration
Terminal
Phase
Function
Terminal
Phase
Function
1
1
I1 - CT1 in
7
3
I3- CT3 in
2
1
U1 - Voltage
8
3
U3 - Voltage
3
1
I1 - CT1 out
9
3
I3 - CT3 out
4
2
I2 - CT2 in
10/11
N
Un - Neutral
5
2
U2 - Voltage
12
No connection
6
2
I2 - CT2 out

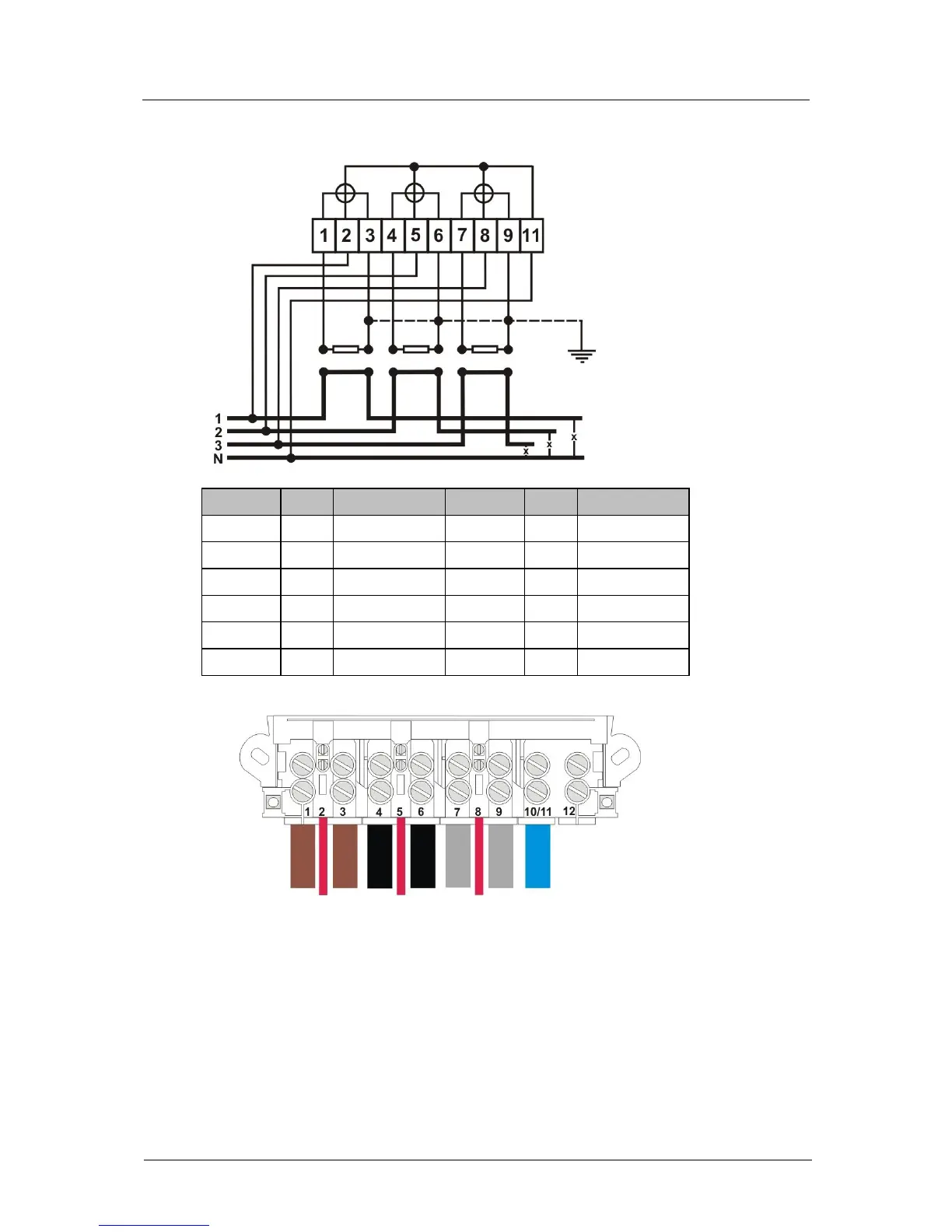

Typical wiring illustrated below:

ITRON ACE6000 Specifications

General

Voltage	230V AC
Frequency	50/60 Hz
Display	LCD
Communication	RS-485
Temperature Range	+55°C
Current	5A
Frequency Range	45Hz to 65Hz
Storage Temperature	+70°C
Humidity	95% RH (non-condensing)
