9. Complete cable routing in the vehicle and secure the cables.
10. See Connecting the Antenna to the Mounting Base.
To connect the antenna to the antenna mounting base

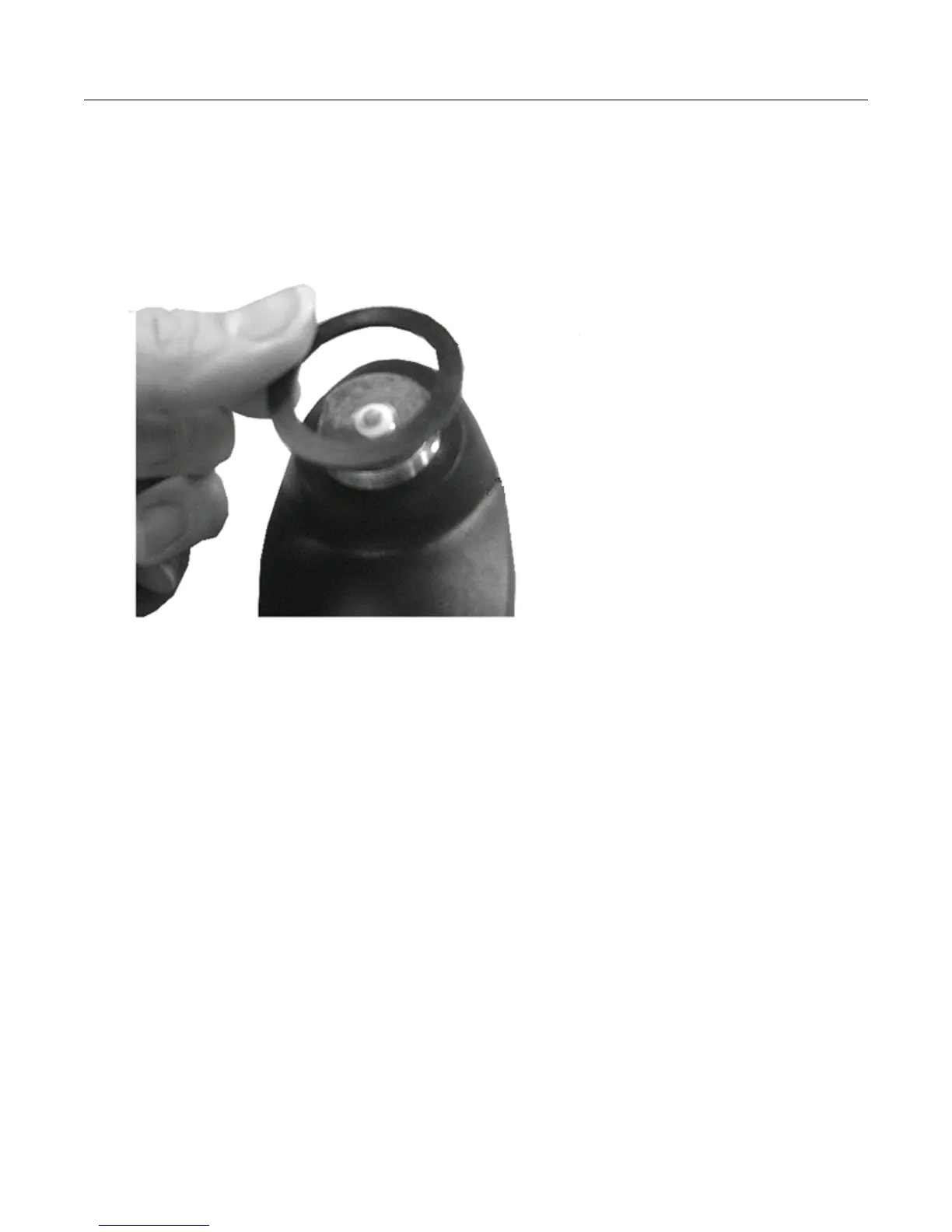

1. Place the antenna gasket on the antenna mounting base. The gasket is shipped in a
plastic bag with the antenna.
2. Press the antenna onto the thread nut of the antenna mounting base.
3. Rotate the antenna clockwise until it is firmly in place.
Vehicle Preparation
MC3Lite Vehicle Preparation and Hardware Installation Guide TDC-1548-002 9
Proprietary and Confidential
