ITRON MC3Lite - Vehicle Sled Components and Installation

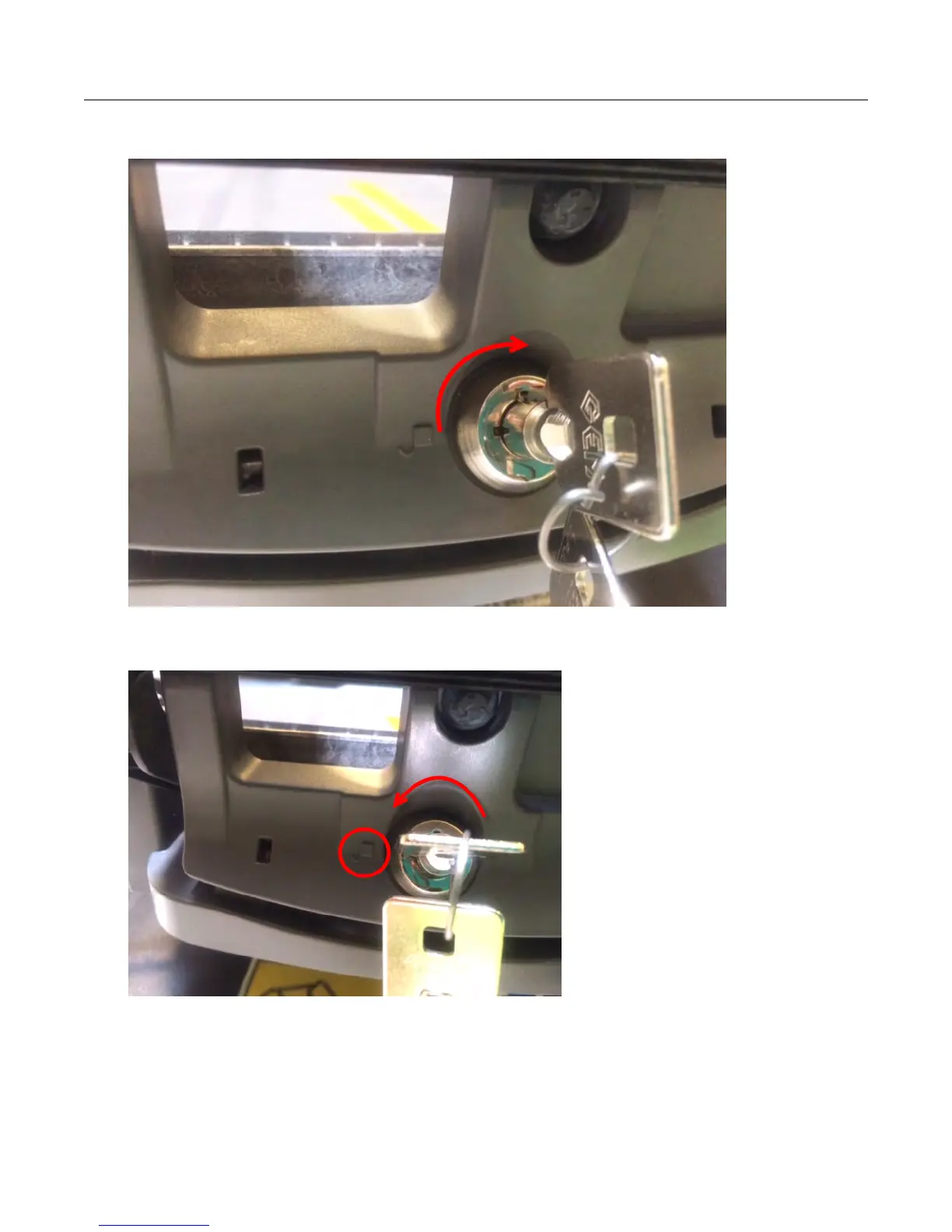

• Locking the dock. Insert the dock key in the barrel lock and turn it clockwise until the
lock is in the locked position.
• Unlocking the dock. Insert the dock key in the barrel lock and turn it counterclockwise
towards the unlock symbol until the lock is in the unlocked position.
To tilt and swivel the tablet dock
T
ilt
Installing MC3Lite Components
MC3Lite Vehicle Preparation and Hardware Installation Guide TDC-1548-002 24
