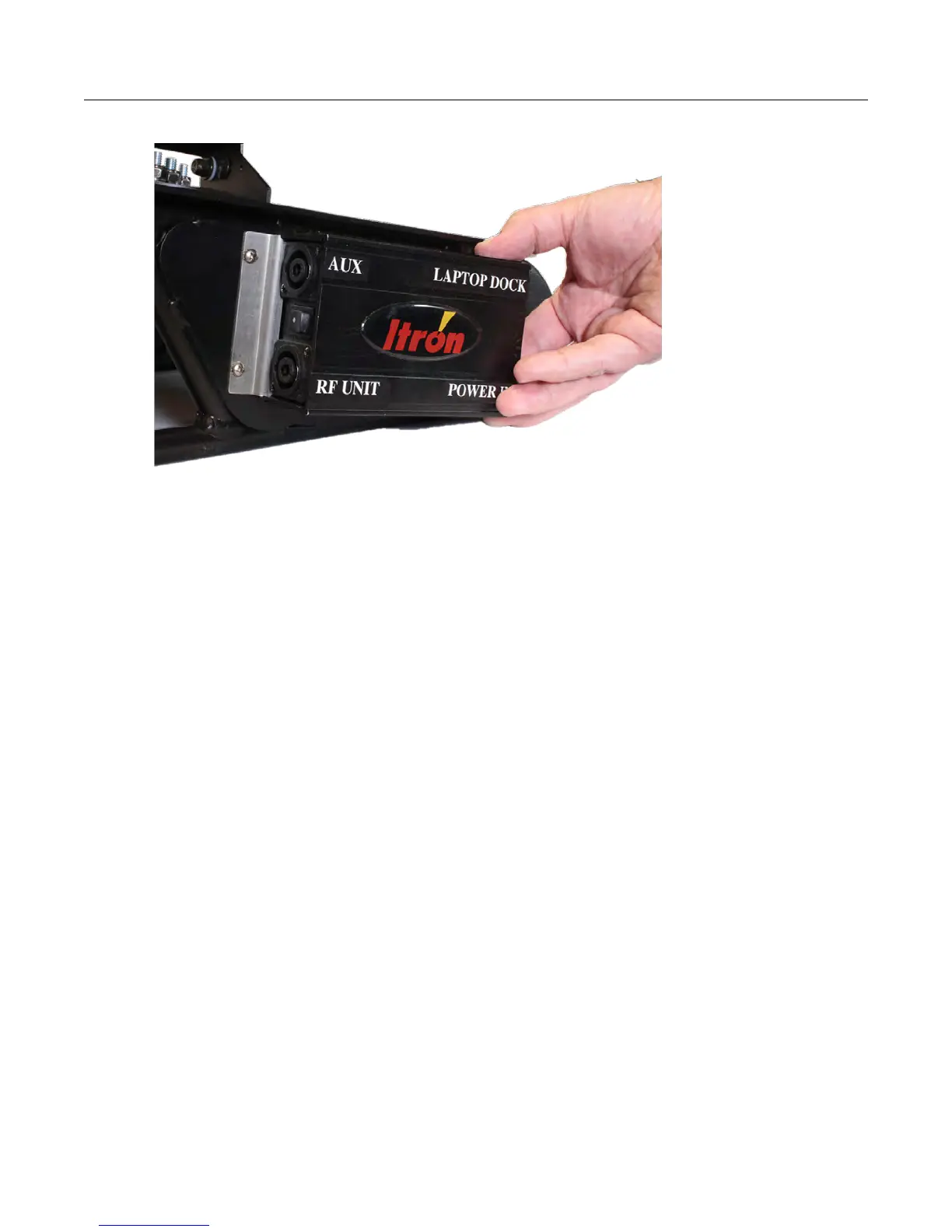

5. Insert the other bracket (the one you removed) into the junction box, making sure that
both screw holes are visible through the bracket.
6.
Insert and tighten both screws to secure the junction box to the sled or pedestal.
Vehicle Docks
Use the Mobile Collection vehicle dock to secure the Mobile Collection computer to either
the sled or a pedestal mount in your vehicle. The vehicle dock provides power and
communication connections between the Mobile Collection computer and Mobile Collector
radio. There are two types of vehicle docks, depending on your computer.
The FZ-G1 tablet dock comes with a tilt-swivel base that allows you to position the tablet for
viewing when not driving. It comes pre-attached to the sled. For more information, see To tilt
and swivel the tablet dock on page 24. The FZ-M1 tablet dock is for mounting on a
customer-supplied pedestal.
