ITRON MC3Lite Hardware Installation Guide

To install the seat belt pretensioner
• Follow the procedures in the Mobile Collector Sled and Pretensioner Installation Guide
(TDC-0708-xxx). A DVD showing the installation is also included with your kit. These
materials are located in a plastic sleeve on the underside of the sled.
Junction Box
The junction box distributes power from the vehicle to the MC3Lite radio and Mobile
Collection computer.
Install the junction box on the sled or pedestal mount before you install the MC3Lite system
for the first time. The junction box must always remain attached to the sled or pedestal.
To install the junction box
1. Remove the junction box from the MC3Lite kit.
2. Locate the sled or pedestal mount on which you are installing the junction box. In the
following example, a sled is used.

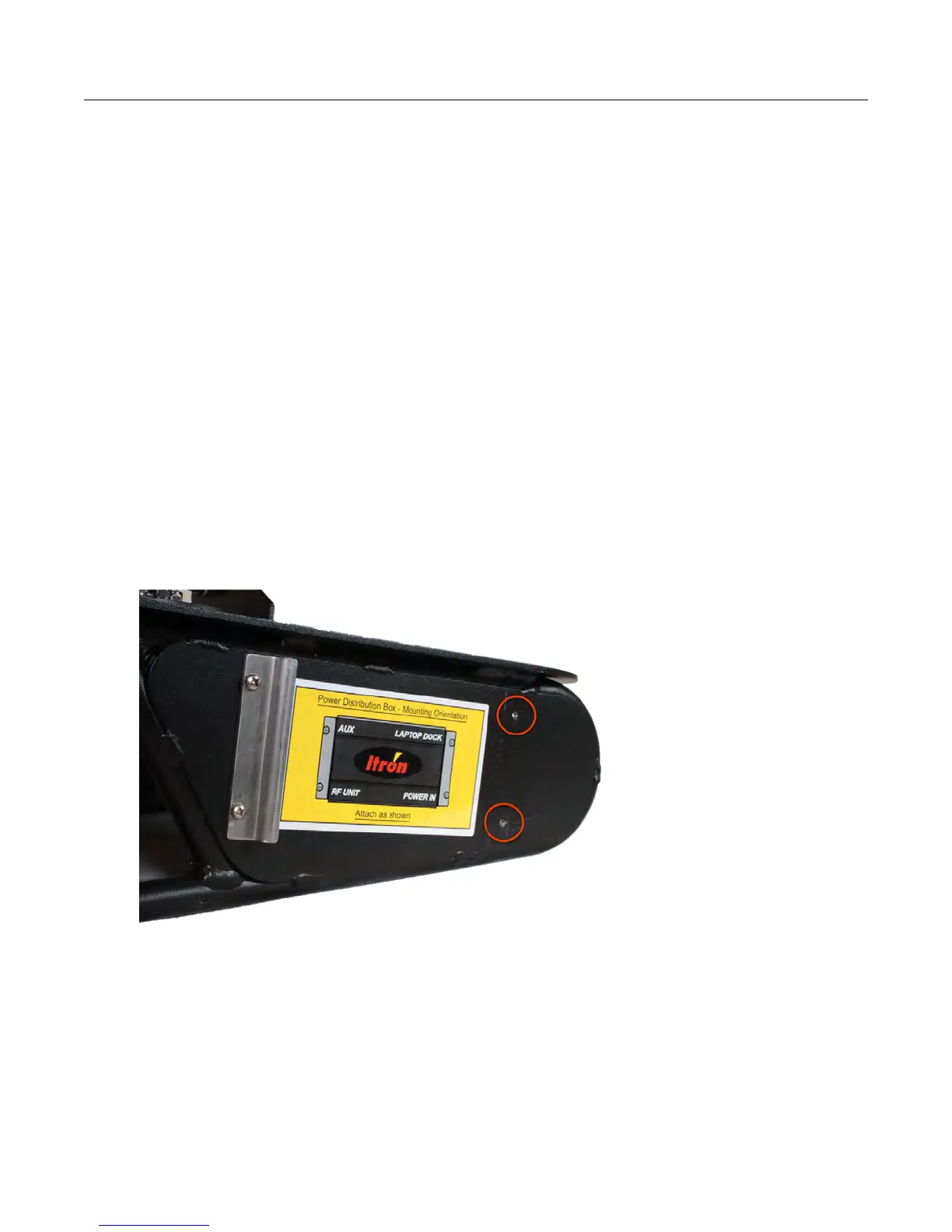

3. Use a Phillips screwdriver to remove the two screws holding the junction box bracket in
place.
4. Slide one end of the junction box into position over the bracket that is still attached. Be
sure to orient the junction box according to the label on the sled or pedestal. The bracket
fits into the recessed edge on the junction box.
Installing MC3Lite Components
MC3Lite Vehicle Preparation and Hardware Installation Guide TDC-1548-002 15
Proprietary and Confidential
