ITRON MC3Lite Hardware Installation Guide

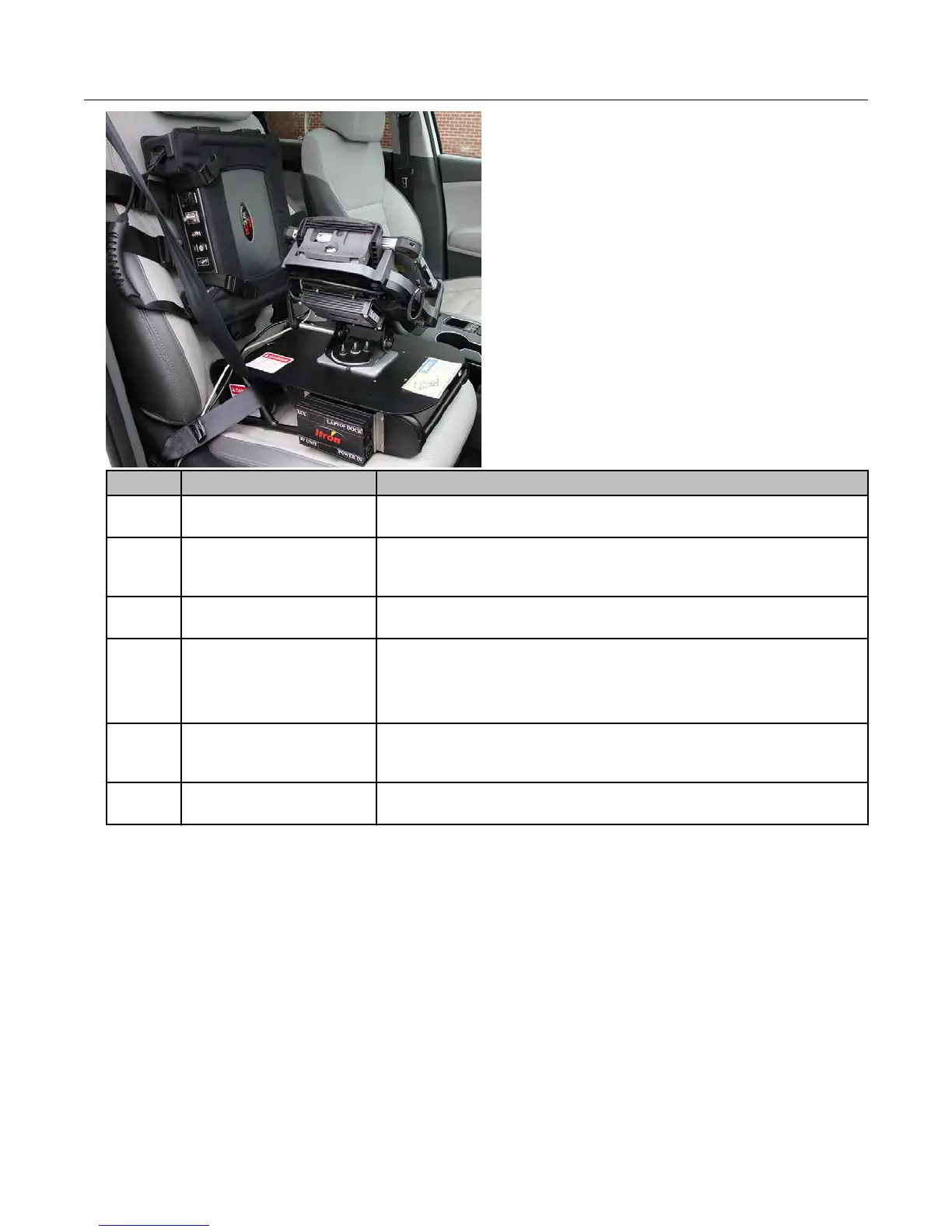

ID Item Description
1 MC3Lite radio
Contains components necessary for collecting mobile reads,
such as the processors, receivers, and GPS equipment.
2 Vehicle dock
Provides a communication link between the Mobile Collection
computer and the MC3Lite radio. Also provides power to the
computer
.
not
shown
Computer The Mobile Collection computer attaches to the vehicle dock.
3 Seat belt pretensioner
Secures the sled in the vehicle.
A properly installed sled is vital to ensure your safety while
collecting reads.
4 Junction box
Receives power from the vehicle and distributes it to the
MC3Lite radio, the Mobile Collection computer, and optional
equipment.
5 Sled
Attaches to the passenger seat of a vehicle and secures the
Mobile Collection computer and the dock in place.
MC3Lite Connectors
The top of the MC3Lite radio contains the power and communications connectors, as well
as a fabric and rubber handle used to carry the radio.
The connections on the MC3Lite include the following.
Installing MC3Lite Components
MC3Lite Vehicle Preparation and Hardware Installation Guide TDC-1548-002 30
Proprietary and Confidential

ITRON MC3Lite Specifications

General

Brand	ITRON
Model	MC3Lite
Category	Storage
Language	English
