Note: T

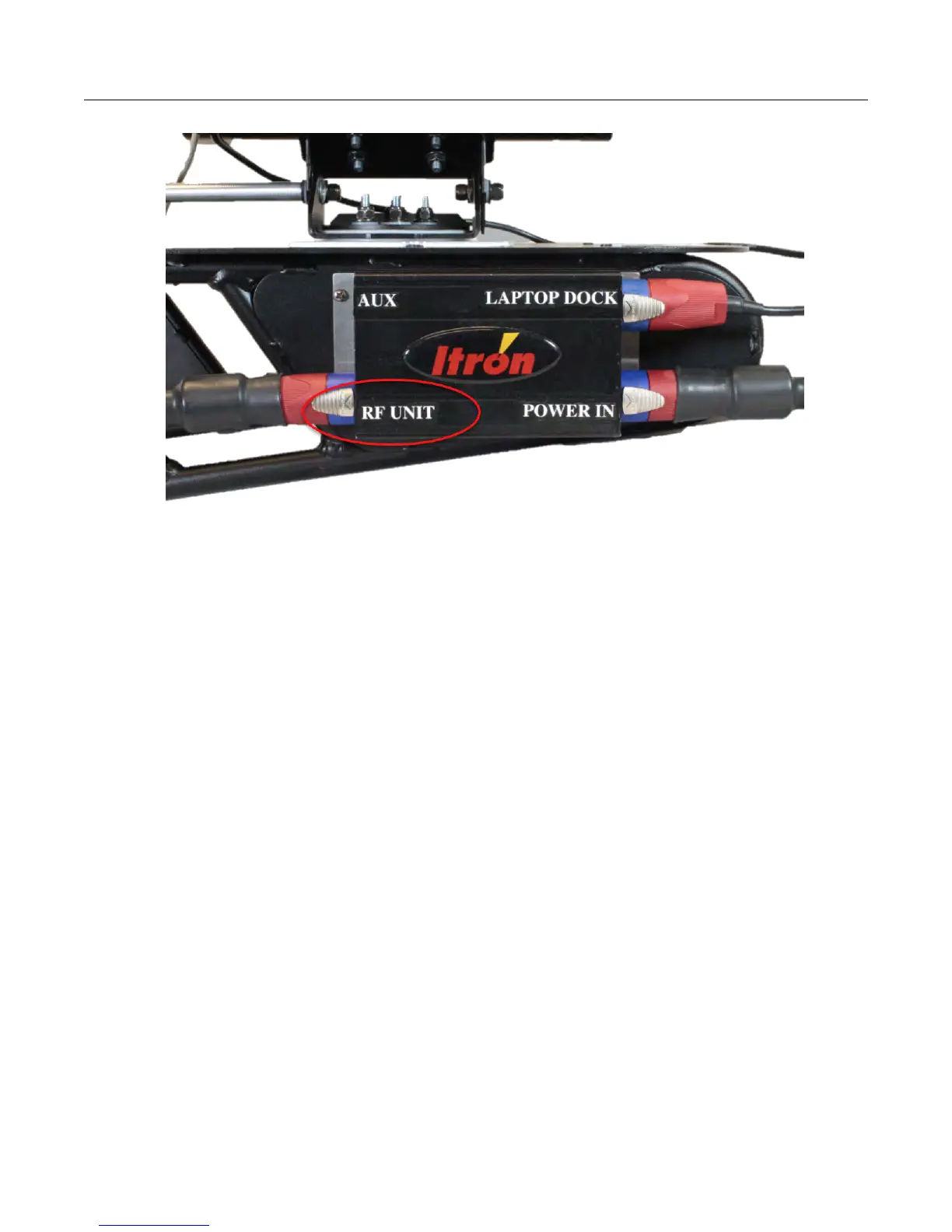

o remove the cable, pull the silver tab on the power cable back. Twist the
connector so the silver tab lines up with the labeling on the junction box, and release the
tab to unlock it. Then gently pull back on the connector to remove it.
• Plug the other end into the power in receptacle on the radio.
Connecting the Antenna
The omni-directional RF antenna has either a fixed-base that is permanently attached to the
vehicle or a magnetic base that can be attached to and removed from the vehicle as
necessary.
When deciding where to mount the antenna, consider the following.
• Choose a flat area on the vehicle's roof, where the metal of the roof is 0.02-0.04 inches
thick.
• Install the antenna a minimum of 12 inches—recommended 30 inches—from any other
antennas or metal structures on the vehicle’s roof that could disrupt communication with
endpoints.
• To meet RF exposure safety requirements, the antenna must be installed 7.9 inches (20
cm.) from where any bystanders might be.
To connect the antenna to the MC3Lite
• Connect the omni-directional RF antenna cable to the MAIN ANTENNA connector on the
MC3Lite. Be sure to properly tighten the connector. A loose connection can lead to poor
radio and read performance.
Installing MC3Lite Components
MC3Lite Vehicle Preparation and Hardware Installation Guide TDC-1548-002 35
Proprietary and Confidential
