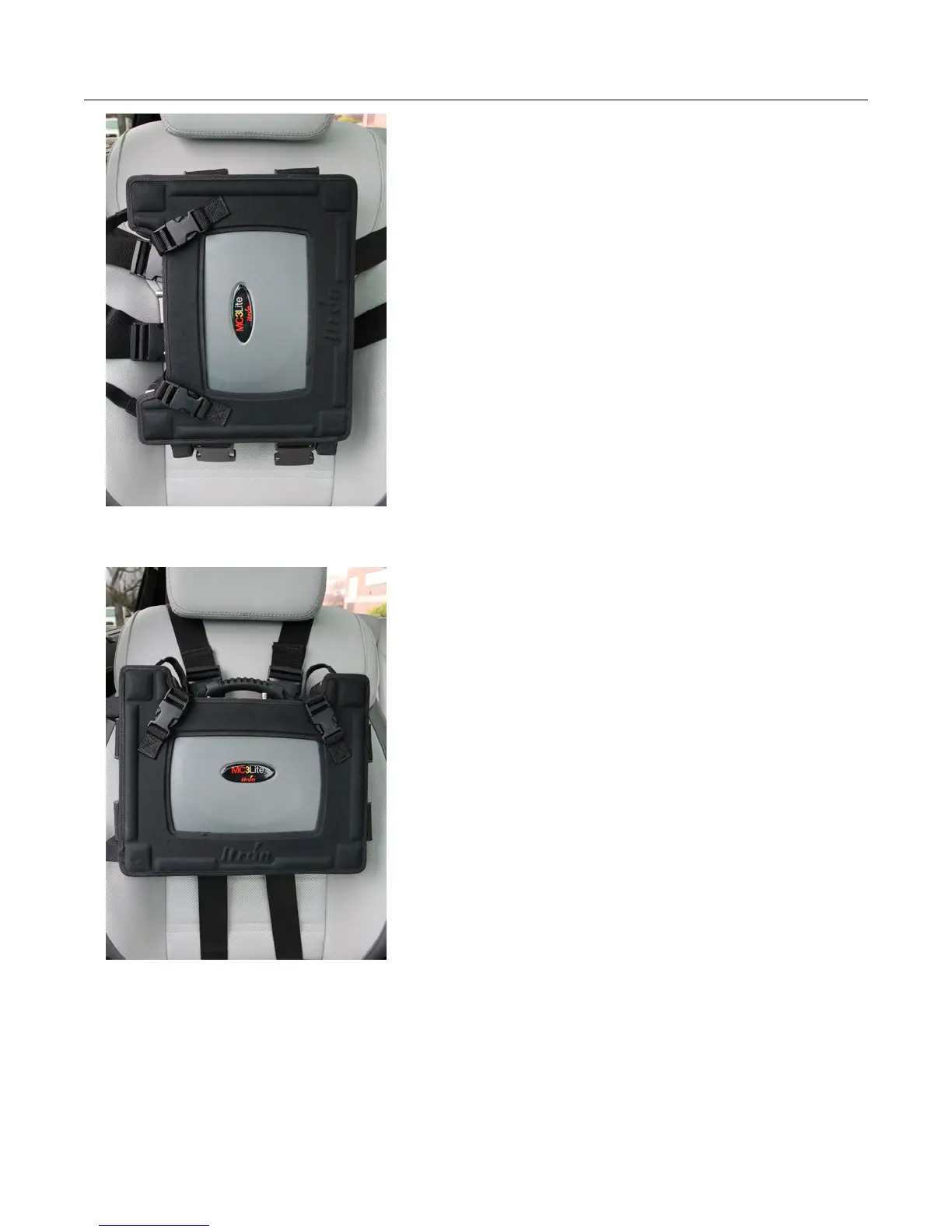

Pedestal Systems. The MC3Lite radio can be attached to the lower portion of the seat, as
shown below.
To mount the MC3Lite radio on a bucket seat
1. Position the harnessed MC3Lite radio so that the unit's connectors and handle face
towards the passenger-side door when mounted to either the front or the back of the
passenger seat.
Installing MC3Lite Components
MC3Lite Vehicle Preparation and Hardware Installation Guide TDC-1548-002 28
Proprietary and Confidential
