ITRON MC3Lite Hardware Installation Guide

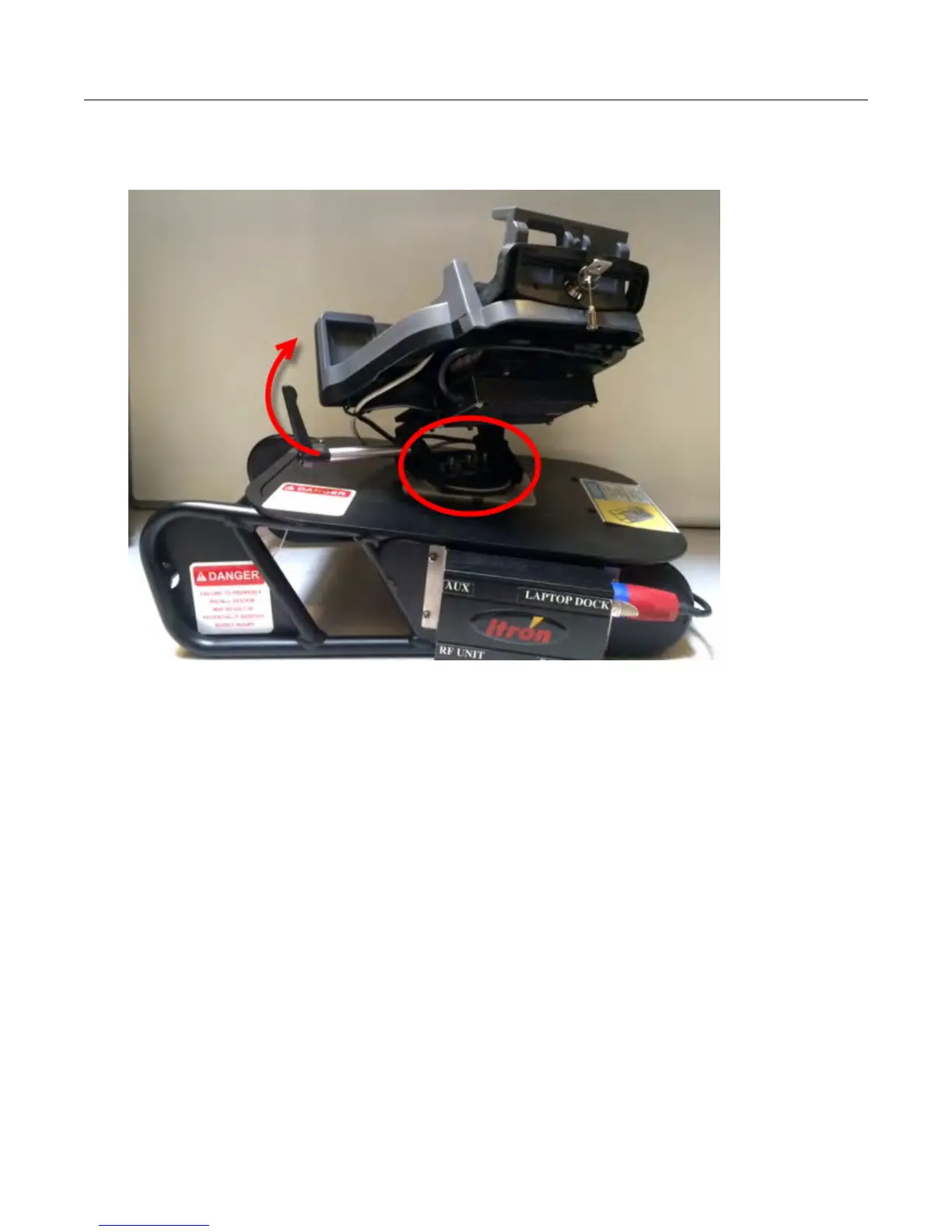

• Grasp the tablet dock with both hands. Firmly rotate the dock towards the driver until you
reach the desired position. To prevent the tablet dock from moving during its use, the
swivel mechanism is tight, thus it may be hard to swivel.
Mounting the MC3Lite in the Vehicle
The MC3Lite is mounted in a harness with clips so that it can attach to either a bucket or
bench seat in a vehicle. The MC3Lite is shipped in its vehicle mount with the straps set up
for a bucket seat. The bench straps are included with the MC3Lite.
If you are using a sled in either the bucket- or bench-style seat arrangement, you must
attach the MC3Lite radio high enough on the seat-back to leave room for the sled and
Mobile Collection computer to fit on the seat beneath the radio.
Sled Systems. Mount the MC3Lite high enough on the seat back (as shown in the following
example) so the sled and Mobile Collection computer fit beneath the radio on the seat.
Installing MC3Lite Components
MC3Lite Vehicle Preparation and Hardware Installation Guide TDC-1548-002 27
Proprietary and Confidential
