ITRON MC3Lite Hardware Installation Guide

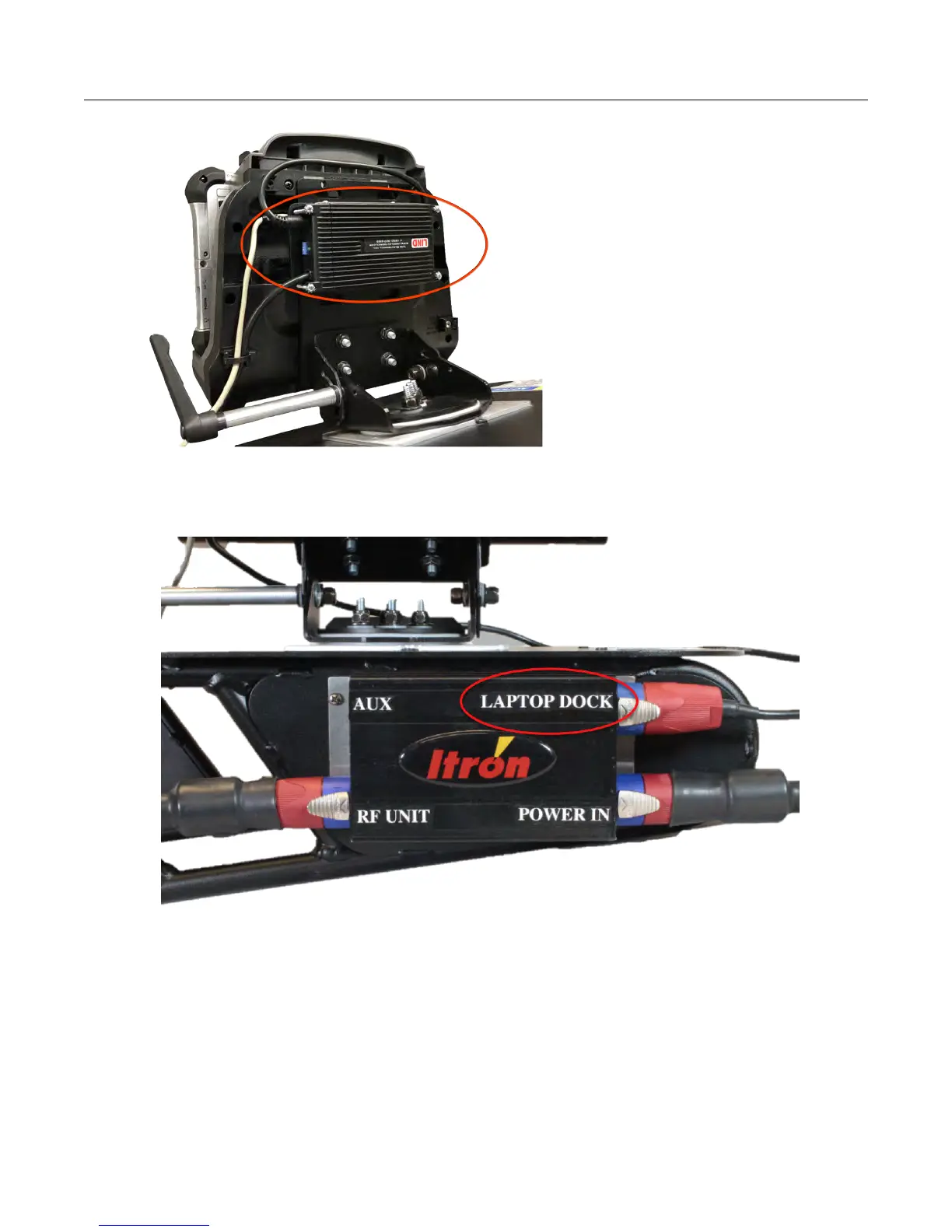

• If needed, plug the red and blue end of the cable into the LAPT
OP DOCK receptacle on
the junction box.
Note: To remove the cable, pull the silver tab on the power cable back. Twist the
connector so the silver tab lines up with the labeling on the junction box, and release the
tab to unlock it. Then gently pull back on the connector to remove it.
To connect power to the MC3Lite
• Plug one end of the Input power cable (CBA-0269-001) into the RF UNIT receptacle on
the junction box
Installing MC3Lite Components
MC3Lite Vehicle Preparation and Hardware Installation Guide TDC-1548-002 34
Proprietary and Confidential
