ID
Connection
(Label)
Description
dock is attached to either a sled or pedestal mount in the
vehicle (a sled is pictured in this example).
Note: Although this is labeled LAPTOP DOCK, it is used
for any computer dock.

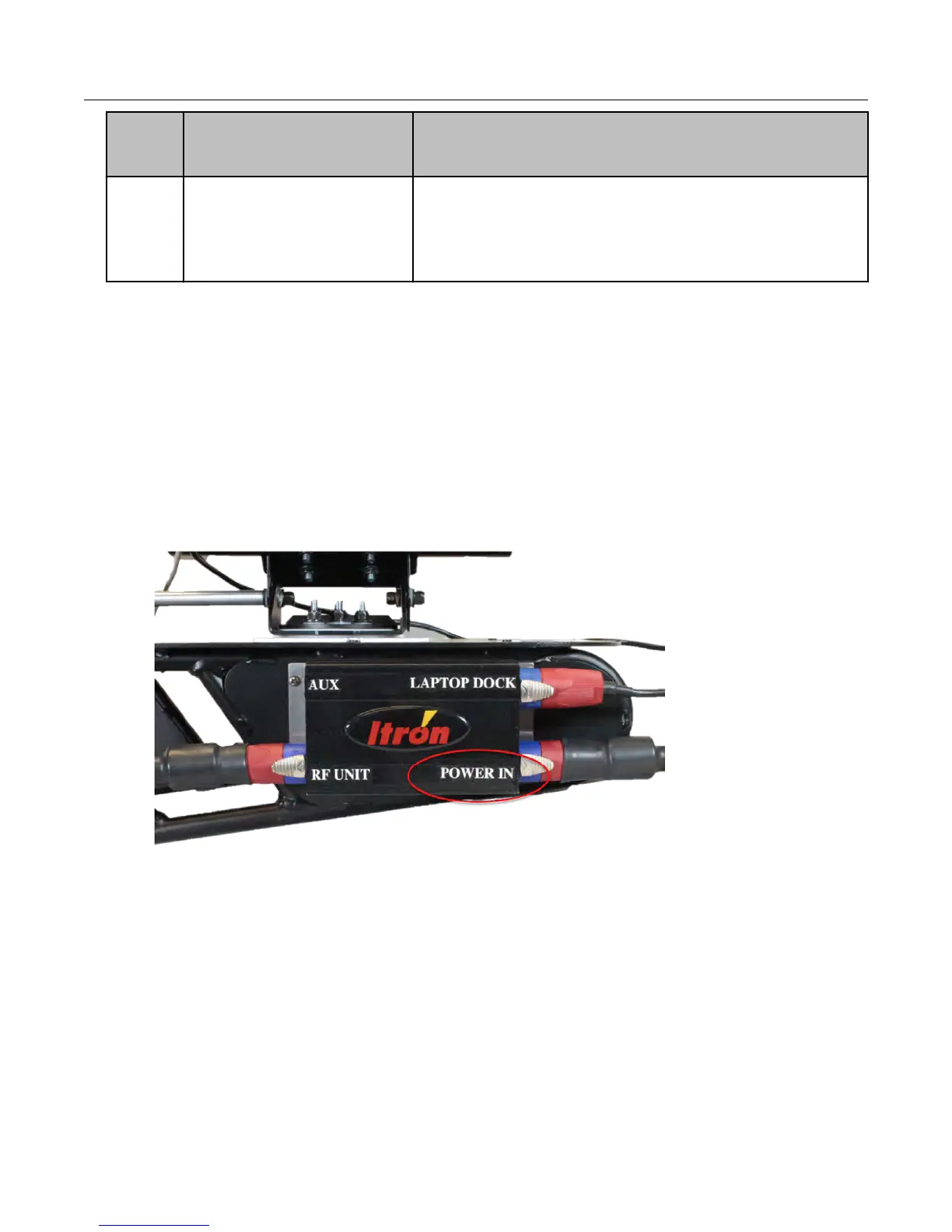

To connect the vehicle power to the sled
• Plug the vehicle power cable into the POWER IN receptacle on the junction box that is
either mounted on the sled or the pedestal.
Note: To remove the cable, pull the silver tab on the power cable back. Twist the
connector so the silver tab lines up with the labeling on the junction box, and release the
tab to unlock it. Then gently pull back on the connector to remove it.
• The other end of the power cable can be hard-wired to the vehicle battery as described in
Installing the Power Supply Cable on page 5. It can also be plugged into the 12v power
supply.
To connect power to the Mobile Collection dock
Note: The tablet power supply
, input cable, and USB cable come pre-attached to the dock.
