4.

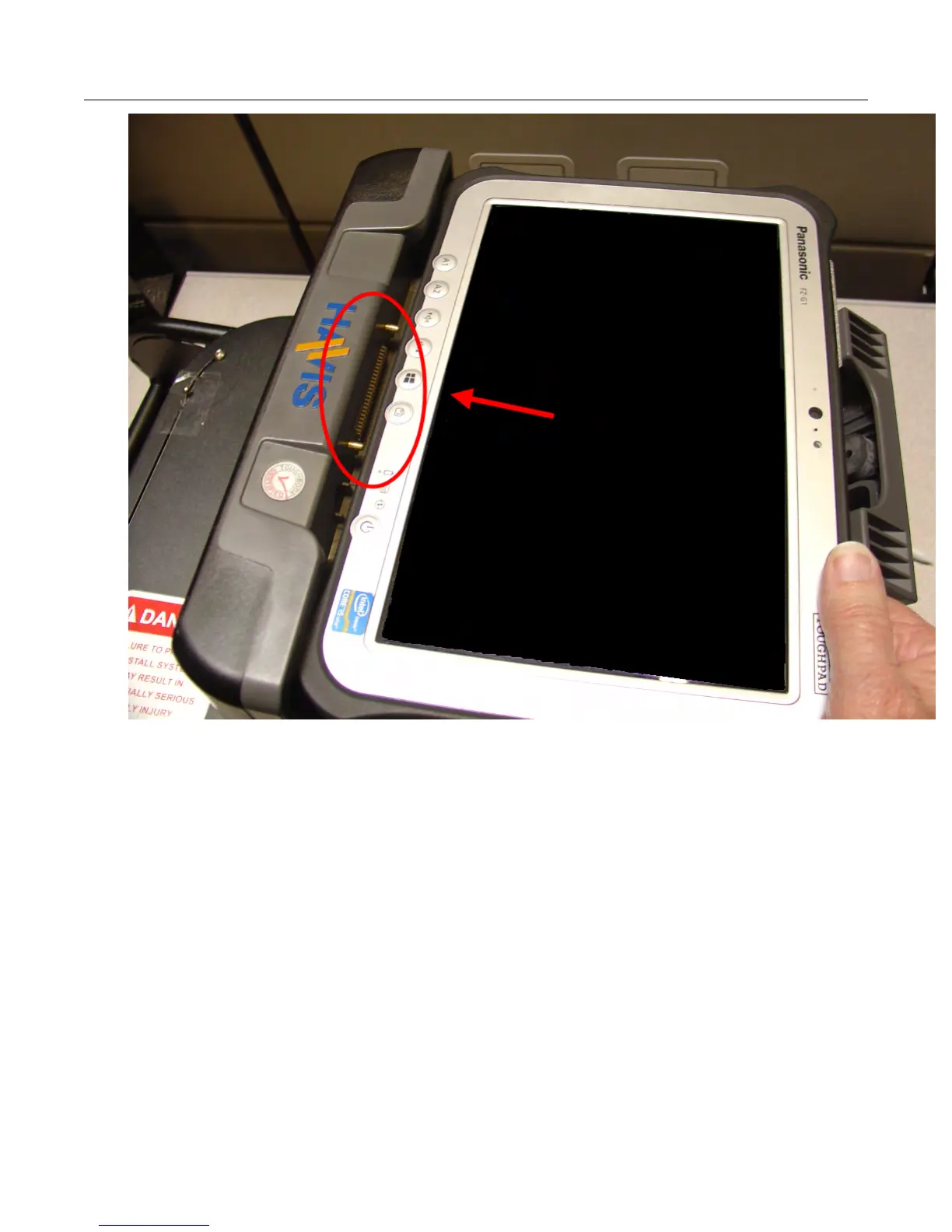

Once seated, pull the latch handle up until it snaps in place over the front of the tablet.
Note
: The latch handle moves the latch hook into place over the front of the tablet.
Installing MC3Lite Components
MC3Lite V
ehicle Preparation and Hardware Installation Guide TDC-1548-002
21
Proprietary and Confidential
24
26
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1 Before You Begin
5
Important Safety and Compliance Information
5
New in this Revision
8
Chapter 2 Vehicle Preparation
9
Tools and Materials Needed
9
Vehicle Preparation Tasks
9
Installing the Power Supply Cable
9
To Install the Power Supply Cable
10
Installing the Integrated Antenna
10
Selecting an Antenna Location on the Vehicle
11
Installing the Antenna Mounting Base
11
To Install the RF Antenna Cable and Mounting Base
12
To Connect the Antenna to the Antenna Mounting Base
13
Chapter 3 Installing Mc3Lite Components
14
Pre-Installation Requirements
14
Mobile Collection Hardware Kit
14
Installing the Mc3Lite Components
15
Mobile Collector Sled
16
Seat Belt Pretensioner
17
To Install the Seat Belt Pretensioner
19
Junction Box
19
To Install the Junction Box
19
Vehicle Docks
20
Tablet and Computer Dock Parts List
21
To Attach the Tablet to the Vehicle Dock
22
To Lock and Unlock the Tablet Dock
27
To Tilt and Swivel the Tablet Dock
28
Mounting the Mc3Lite in the Vehicle
31
To Mount the Mc3Lite Radio on a Bucket Seat
32
Vehicle Sled
33
Vehicle Sled Parts List
33
Mc3Lite Connectors
34
Connecting the Power Cables
35
Connecting the Antenna
39
Connecting the GPS and Data Cables
40
Removing the Mc3Lite System
42
To Remove the Mobile Collection Computer from the Vehicle Dock
42
To Disconnect the Cables
42
Chapter 4 Mc3Lite System Maintenance
43
Inspecting the Antenna Connectors and Cables
43
Inspecting the Antenna Base and Whip
43
To Inspect the Antenna Base and Whip
44
Cleaning the Antenna
44
