Electrical Installation and Wiring
8.
4.1
In
pu
t V
o
lta
ge
T
erm
ina
ls

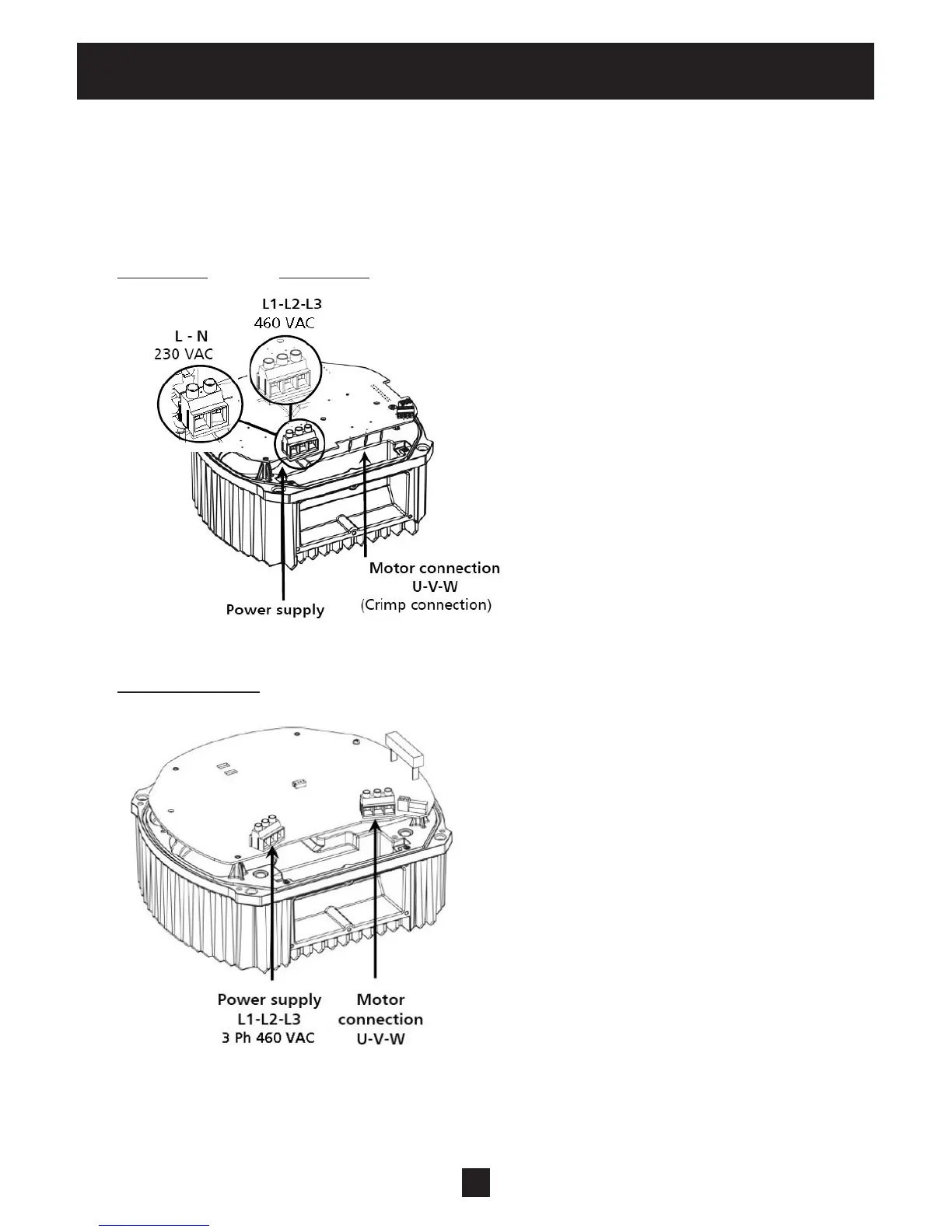

The power supply is connected to the power section:
T
erminal L + N
(230 V
AC, single-phase)
T
erminal L1+ L2 + L3
(460 V
AC, three-phase)
2, 3 HP / 1Ø
3, 5 HP / 3Ø
7.5, 10, 15 HP / 3Ø
22
24
