Electrical Installation and Wiring

8.4.2 Motor Connection

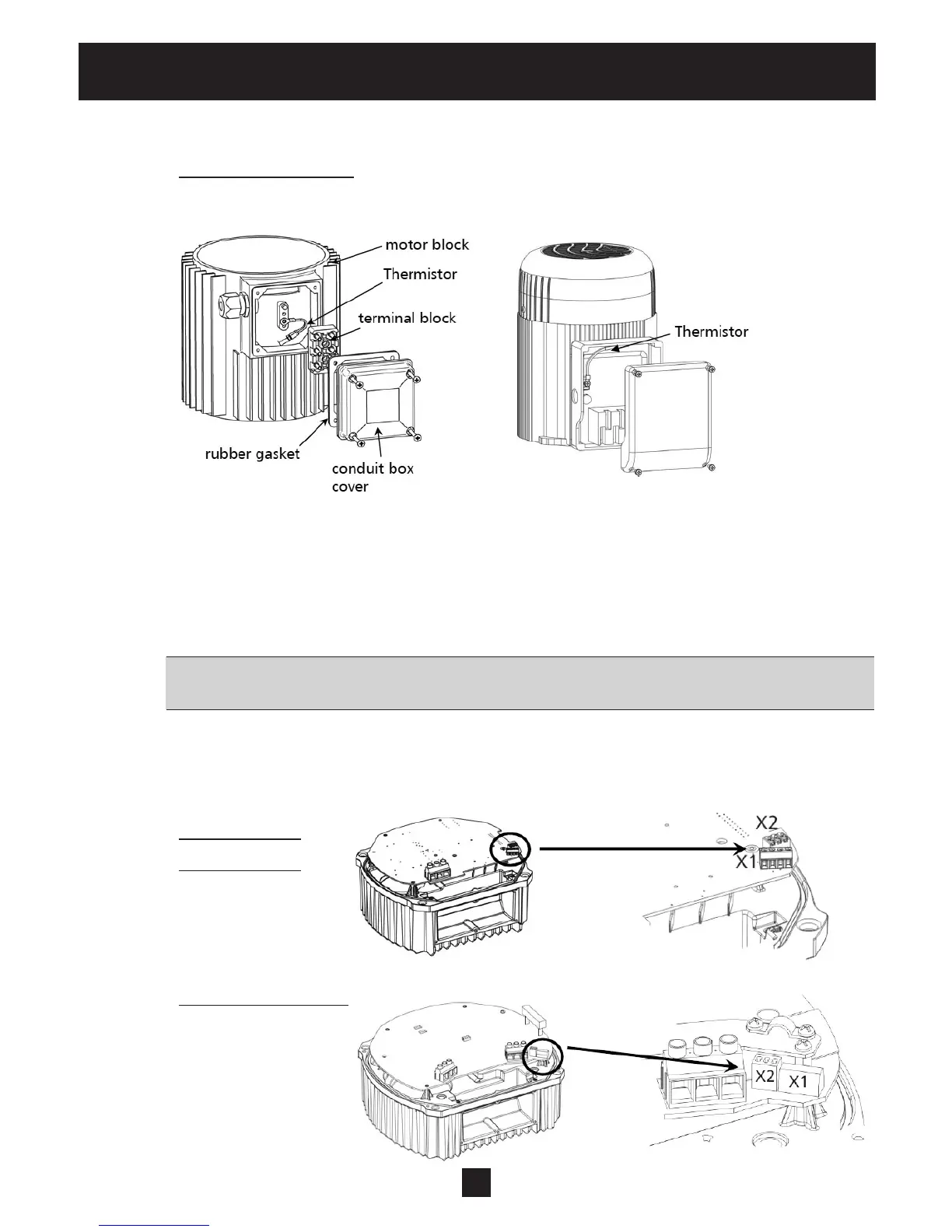

Attaching the Thermistor

Method A : Method B :

1. Remove conduit box cover

2. Attach the thermistor (Method A or B)

3. Replace the terminal block, if necessary

4. Wire the motor according to the motor manufacturer's instructions.

NOTE! The thermistor must be attached to the motor. This is required to measure

the motor temperature!

8.4.3 Power Unit

The basic drive has two control terminal blocks.

HVB 1202, 1203

HVB 3403, 3405

HVB 3407, 3410, 3415
