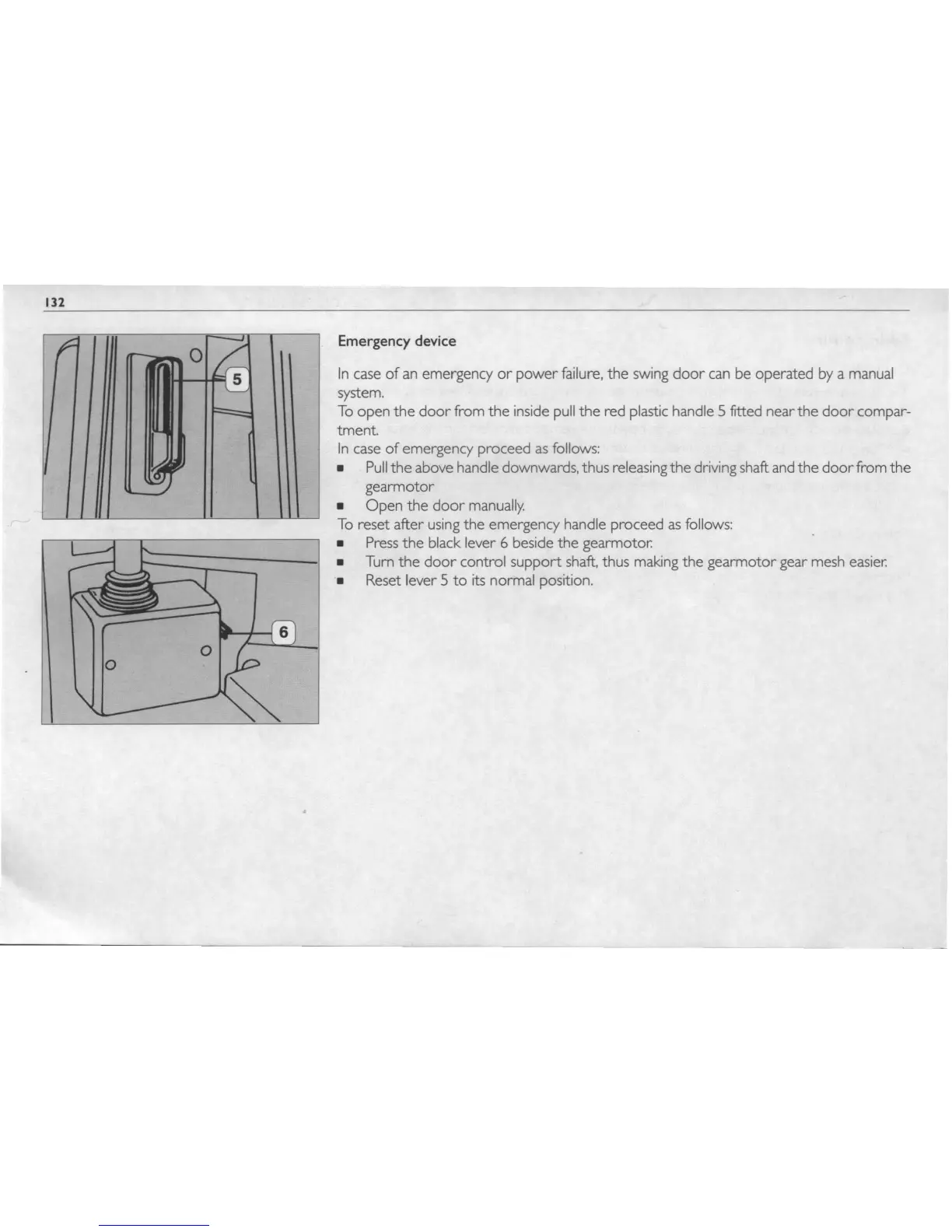

Emergency device
In case of an emergency or power failure. the swing door can be operated by a manual
system.
To open the door from the inside pull the red plastic handle 5 fitted near the door compar-
tment.
In case of emergency proceed as follows:
• Pull the above handle downwards, thus releasing the driving shaft and the door from the
gearmotor
•
Open the door manually
To reset after using the emergency handle proceed as follows:
• Press the black lever 6 beside the gearmotor.
• Turn the door control support shaft. thus making the gearmotor gear mesh easier.
• Reset lever 5
to its normal position.
