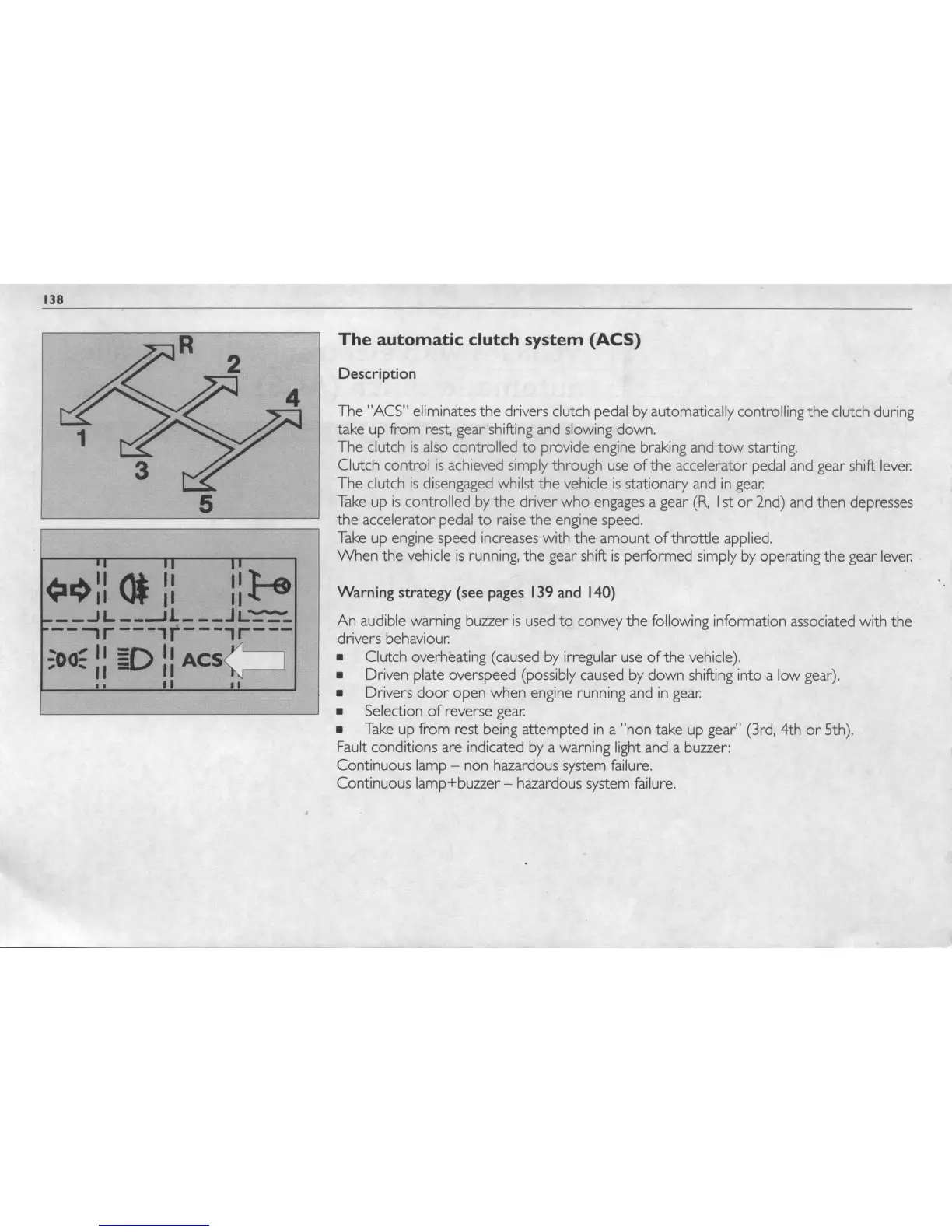

The
automatic
clutch
system
(ACS)
The
"ACS"
eliminates
the
drivers clutch pedal by automatically controlling
the
clutch during
take up
from
rest, gear shifting and slowing down.
The
clutch
is
also controlled
to
provide engine braking and
tow
starting.
Clutch control
is
achieved simply through
use
of
the
accelerator pedal and gear shift lever.
The
clutch
is
disengaged whilst
the
vehicle
is
stationary and
in
gear.
Take
up
is
controlled by
the
driver
who
engages a gear
(R,
Ist
or
2nd) and then depresses
the
accelerator pedal
to
raise
the
engine speed.
Take up engine speed increases
with
the
amount
of
throttle
applied.
When
the
vehicle
is
running,
the
gear shift
is
performed simply by operating the gear lever.
Description
Warning strategy (see pages 139
and
140)
An
audible warning buzzer
is
used
to
convey
the
following information associated
with
the
drivers behaviour.
• Clutch overheating (caused by irregular
use
ofthe
vehicle).
• Driven plate overspeed (possibly caused by
down
shifting into a
low
gear).
• Drivers
door
open
when
engine running and
in
gear.
• Selection
of
reverse
gear.
•
Take
up
from
rest being attempted
in
a
"non
take up gear" (3rd,
4th
or
5th).
Fault conditions are indicated by a warning light and a buzzer:
Continuous lamp - non hazardous system failure.
Continuous lamp+buzzer - hazardous system failure.
