Iveco daily - Heating and Ventilation Controls

Use of controls

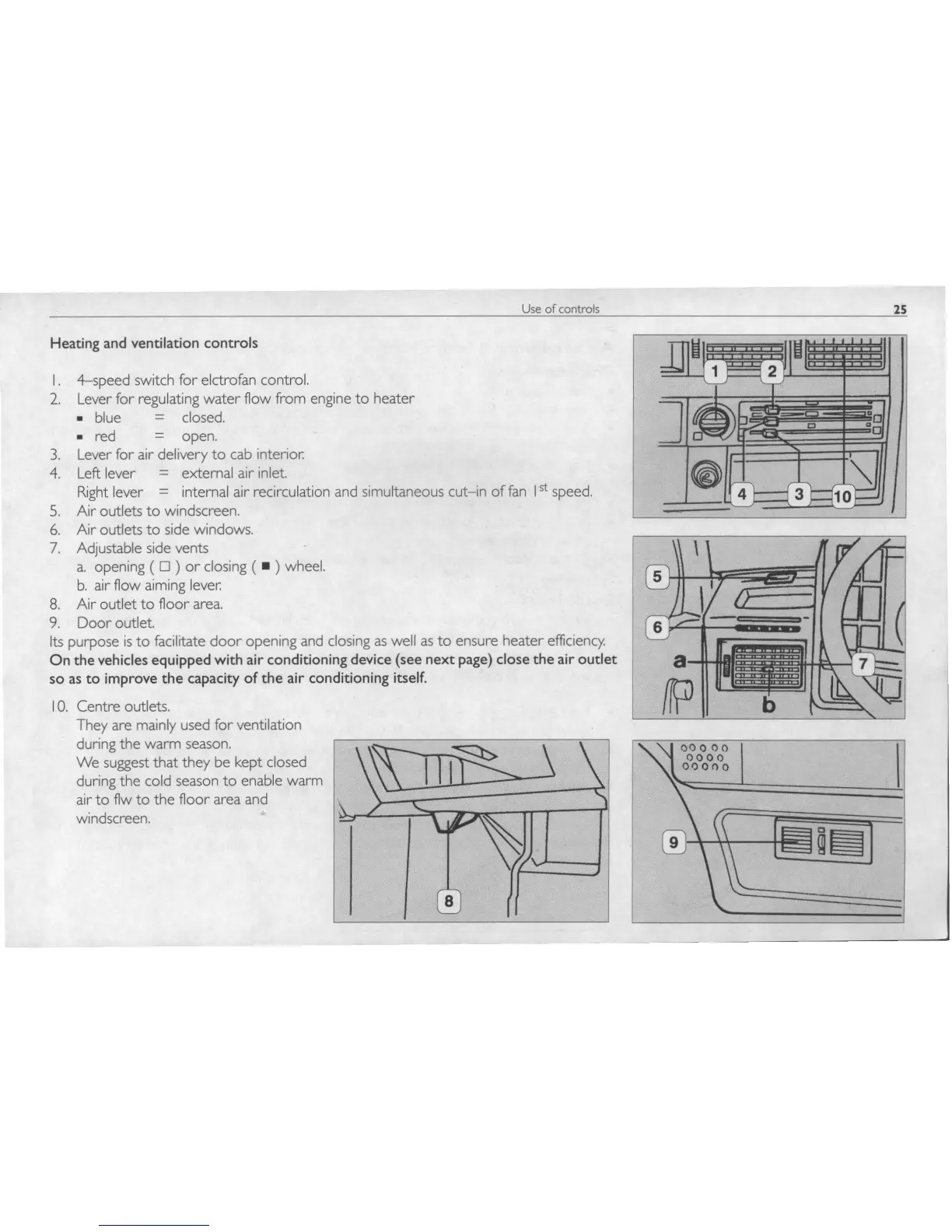

Heating and ventilation controls
I. 4-speed switch for elctrofan control.
2. Lever for regulating water flow from engine to heater
•
blue closed.
• red open.
3. Lever for air delivery to cab interior.
4. Left lever = external air inlet.
Right lever = internal air recirculation and simultaneous cut-in of fan Ist speed.
5. Air outlets to windscreen.
6. Air outlets to side windows.
7. Adjustable side vents
a. opening ( D ) or closing ( • ) wheel.
b. air flow aiming lever.
8. Air outlet to floor area.
9. Door outlet.
Its purpose is to facilitate door opening and closing as well as to ensure heater efficiency
On the vehicles equipped with air conditioning device (see next page) close the air outlet
so as to improve the capacity of the air conditioning itself.
10. Centre outlets.
They
are mainly used for ventilation
during the warm
season.
We suggest that they be kept closed
during the cold
season to enable warm
air
to flw to the floor area and
windscreen.
