S4
Electrical system

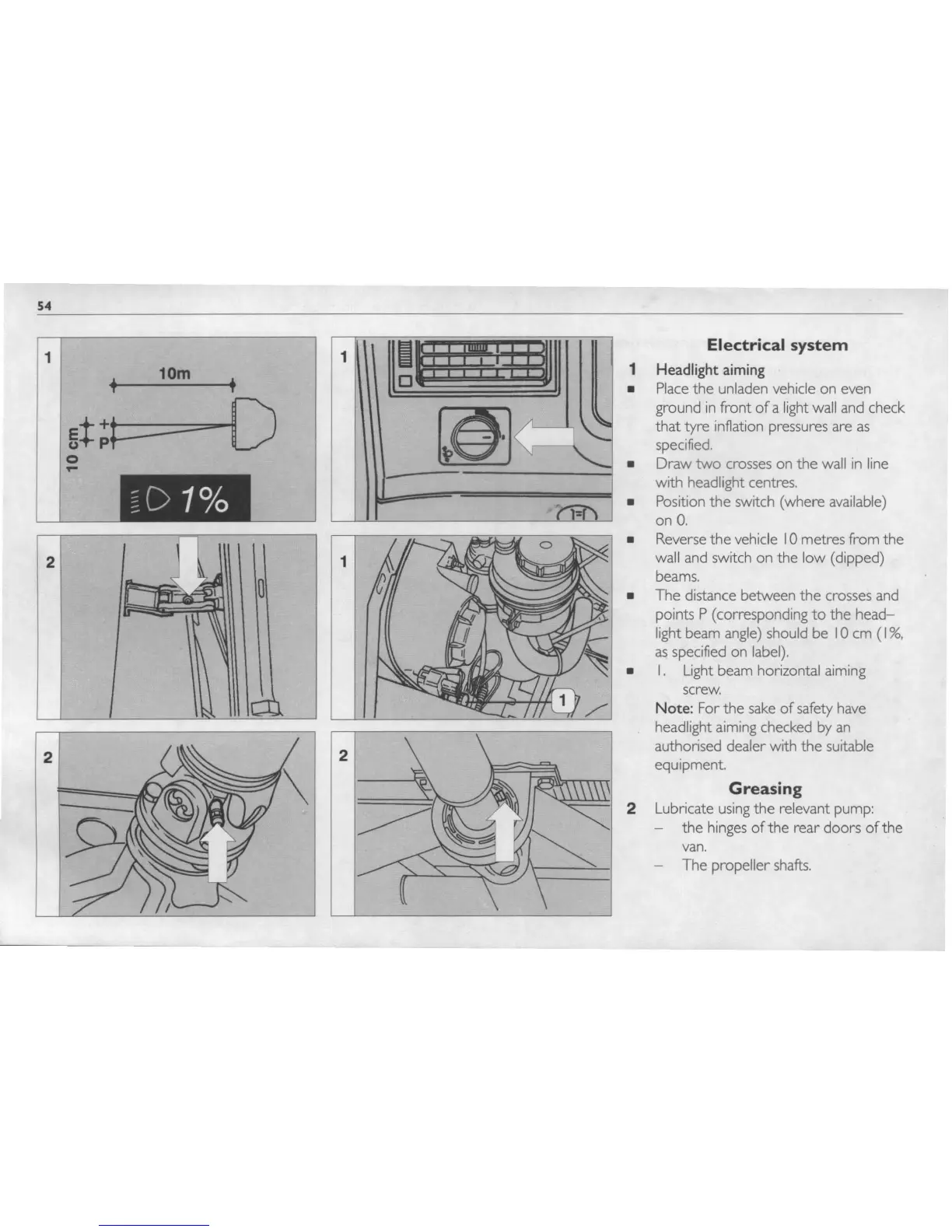

Headlight aiming
Place the unladen vehicle on even
ground
in front of a light wall and check
that tyre inflation pressures are as
specified.
Draw
two crosses on the wall in line
with headlight centres.
Position
the switch (where available)
on
O.
Reverse the vehicle 10 metres from the
wall and switch on the low (dipped)
beams.
The distance between the crosses and
points P (corresponding
to the head-
light beam angle) should be 10 cm (I %,
as specified on label).
I. Light beam horizontal aiming
screw.
Note: For the sake of safety have
headlight aiming checked
by an
authorised dealer with
the suitable
equipment.
Greasing
Lubricate using the relevant pump:
the hinges of the rear doors of the
van.
The propeller shafts.
1
2
•
•
•
•
•
•
-
II!HmII
~
1
2
1
o
leu
+
10m
-
...
p-
+
2
2
1
