Iveco daily - Warning Lamp Cluster

Vehicle interior
11
11 11 11 11 11 11 11 11
EDC II D' 11 •• \ 1 .• 11 "X"X' I1 ~ 11 ......... 11 I\l. Iln 10 II~
TESTII T 11 ·i\· 11 VV 11 ~IIV""'YII \If 1IL6~II~
___ J L __ JL- __ .JL __ JL __ ...JL.. __ .J~ __ ....JL Ja.:.=.:
- --, r--1r- -, r- -,r- -, r-- -,r ---'r---,r--
r-, 11 fQ'1I f0' 11 ffP" 11 ~ 11 :OO~ 11 :t"'\ I1 §J 11 •
Id 11 \~)II \\..:.)) IJ \\V)II ~ 1
1
" .. 11 =v 11 " 11

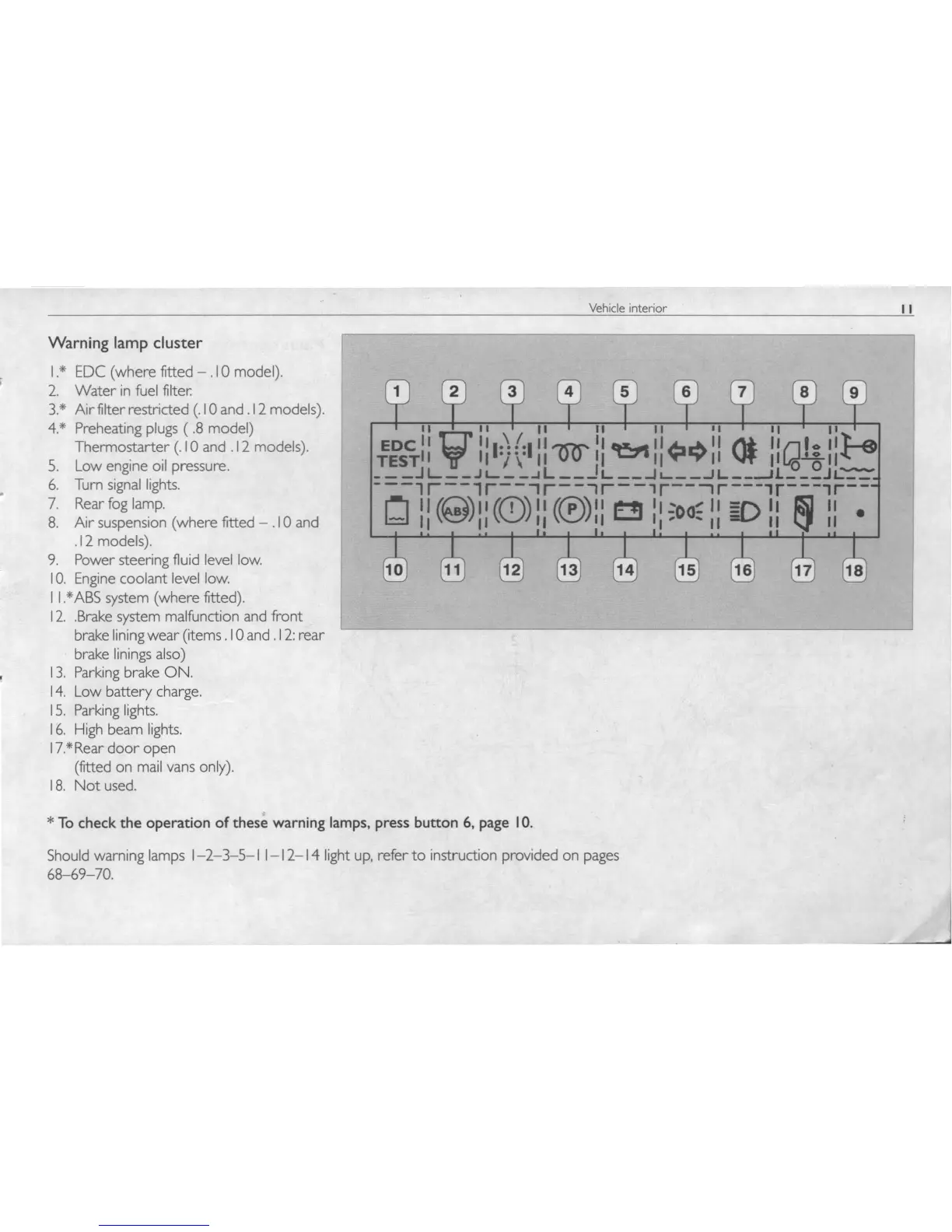

Warning lamp cluster
1.* EDC (where fitted - .10 model).
2. Water in fuel filter.
3* Air filter restricted (.10 and .12 models).
4.* Preheating plugs ( .8 model)
Thenmostarter
(.10 and .12 models).
5. Low engine oil pressure.
6. Turn signal lights.
7. Rear fog lamp.
8. Air suspension (where fitted - .10 and
.12 models).
9. Power steering fluid level low.
10. Engine coolant level low.
I
1.* ABS system (where fitted).
12. .Brake system malfunction and front
brake lining wear (items
.10 and .12: rear
brake linings also)
13. Parking brake ON.
14. Low battery charge.
15. Parking lights.
16. High beam lights.
I 7.* Rear door open
(fitted on mail
vans only).
18. Not used.
* To check the operation of these warning lamps, press button 6, page 10.
Should warning lamps 1-2-3-5-1 1-12-14 light up, refer to instruction provided on pages
68-69-70.
