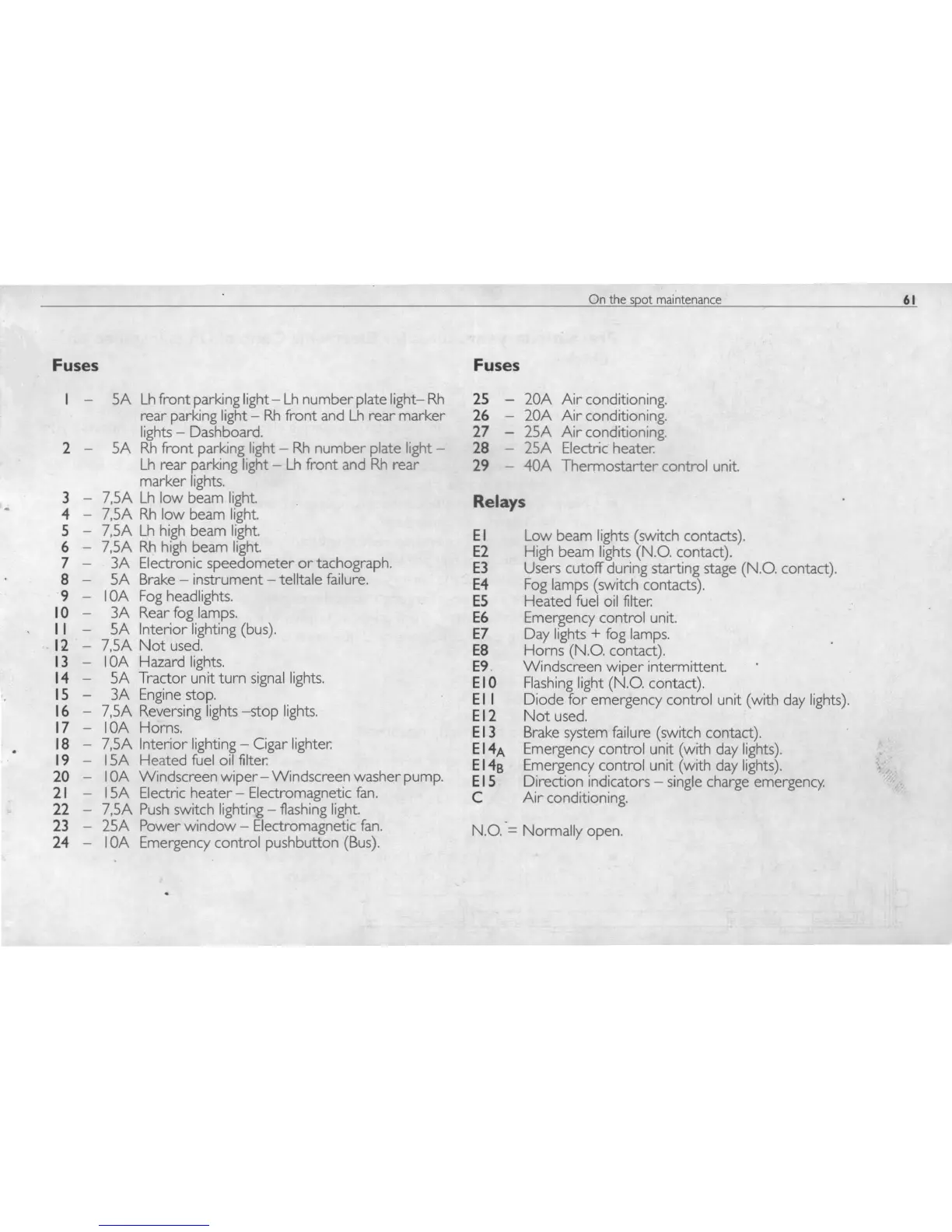

Fuses
SA Lh front parking light - Lh numberplate light- Rh
rear parking light - Rh front and Lh rear marker
lights - Dashboard. .
2 SA
Rh front parking light - Rh number plate light -
Lh rear parking light - Lh front and Rh rear
marker
lights.
3 - 7,SA Lh low beam light.
4 7,SA
Rh low beam light.
5 - 7,SA
Lh high beam light.
6 - 7,SA
Rh high beam light.
7 -
3A Electronic speedometer or tachograph.
8 - SA Brake - instrument - telltale failure.
9 - lOA
Fog headlights.
10 - 3A Rear fog lamps.
11 - SA Interior lighting (bus).
12 - 7,SA Not used.
13 lOA Hazard lights.
14 - SA Tractor unit turn signal lights.
15 - 3A Engine stop.
16 - 7,SA Reversing lights -stop lights.
17 - lOA Horns.
18 - 7,SA Interior lighting - Cigar lighter.
19 - ISA Heated fuel oil filter.
20 - lOA Windscreen wiper- Windscreen washer pump.
21 - ISA Electric heater - Electromagnetic fan.
22 - 7,SA Push switch lighti,..,g - flashing light.
23 - 2SA Power window - Electromagnetic fan.
24 - lOA Emergency control pushbutton (Bus).
On the spot maintenance
Fuses
25 - 20A Air conditioning.
26 - 20A Air conditioning.
27 - 2SA Air conditioning.
28 - 2SA Electric heater.
29 - 40A Thermostarter control unit.
Relays
EI Low beam lights (switch contacts).
E2 High beam lights (N.o. contact).
E3 Users cutoffduring starting stage (N.o. contact).
E4 Fog lamps (switch contacts).
E5 Heated fuel oil filter.
E6 Emergency control unit.
E7 Day lights + fog lamps.
E8 Horns (N.o. contact).
E9. Windscreen wiper intermittent.
EIO
Flashing light (N.o. contact).
Ell Diode for emergency control unit (with day lights).
E 12 Not used.
E 13 Brake system failure (switch contact).
E 14A Emergency control unit (with day lights).
E 14B Emergency control unit (with day lights).
EIS Direction indicators - single charge emergency.
C
Air conditioning.
N.o.·= Normally open.
