Iveco daily - Clutch, Transmission, and Rear Axle Specifications

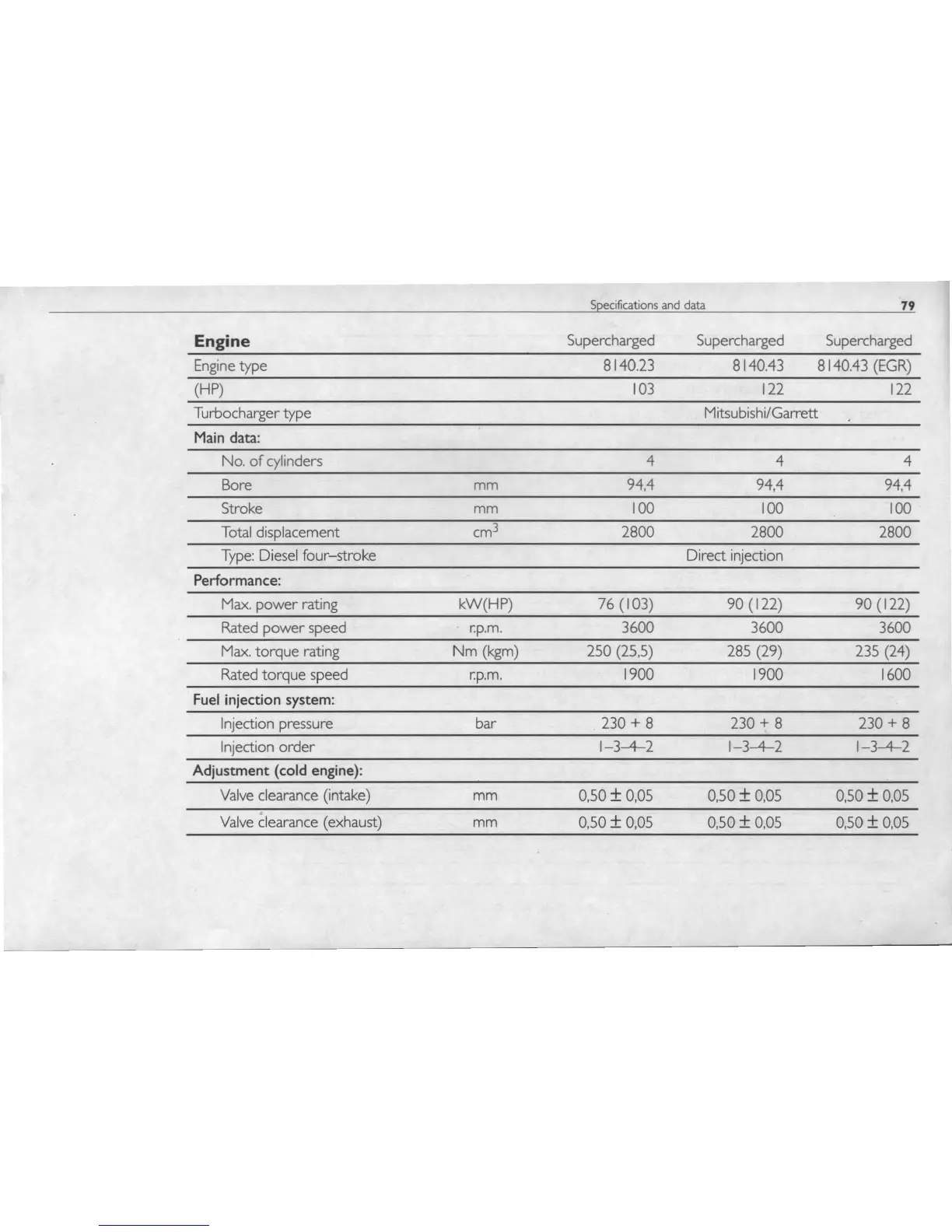

Specifications and data
79
Engine
Supercharged Supercharged
Supercharged
Engine type 8140.23 8140.43 8 140.43 (EGR)
(HP) 103
122 122
Turbocharger type Mitsubishi/Garrett
Main data:
No. of cylinders 4 4 4
Bore mm
94,4
94,4 94,4
Stroke
mm
100 100 100
Total displacement cm
3
2800 2800 2800
Type: Diesel four-stroke Direct injection
Performance:
Max. power rating
kW(HP)
76 (103) 90 (122) 90 (122)
Rated
power speed r.p.m. 3600
3600 3600
Max. torque rating Nm (kgm)
250 (25,5)
285 (29) 235 (24)
Rated
torque speed r.p.m. 1900 1900
1600
Fuel injection system:
Injection pressure bar
230
+ 8 230 + 8 230 + 8
Injection
order 1-3-4-2 1-3-4-2 1-3-4-2
Adjustment (cold engine):
Valve clearance (intake) mm
0,50
±0,05 0,50 ±0,05 0,50 ±0,05
Valve clearance (exhaust) mm
0,50
±0,05 0,50 ±0,05 0,50 ±0,05
