Figure 47

112864

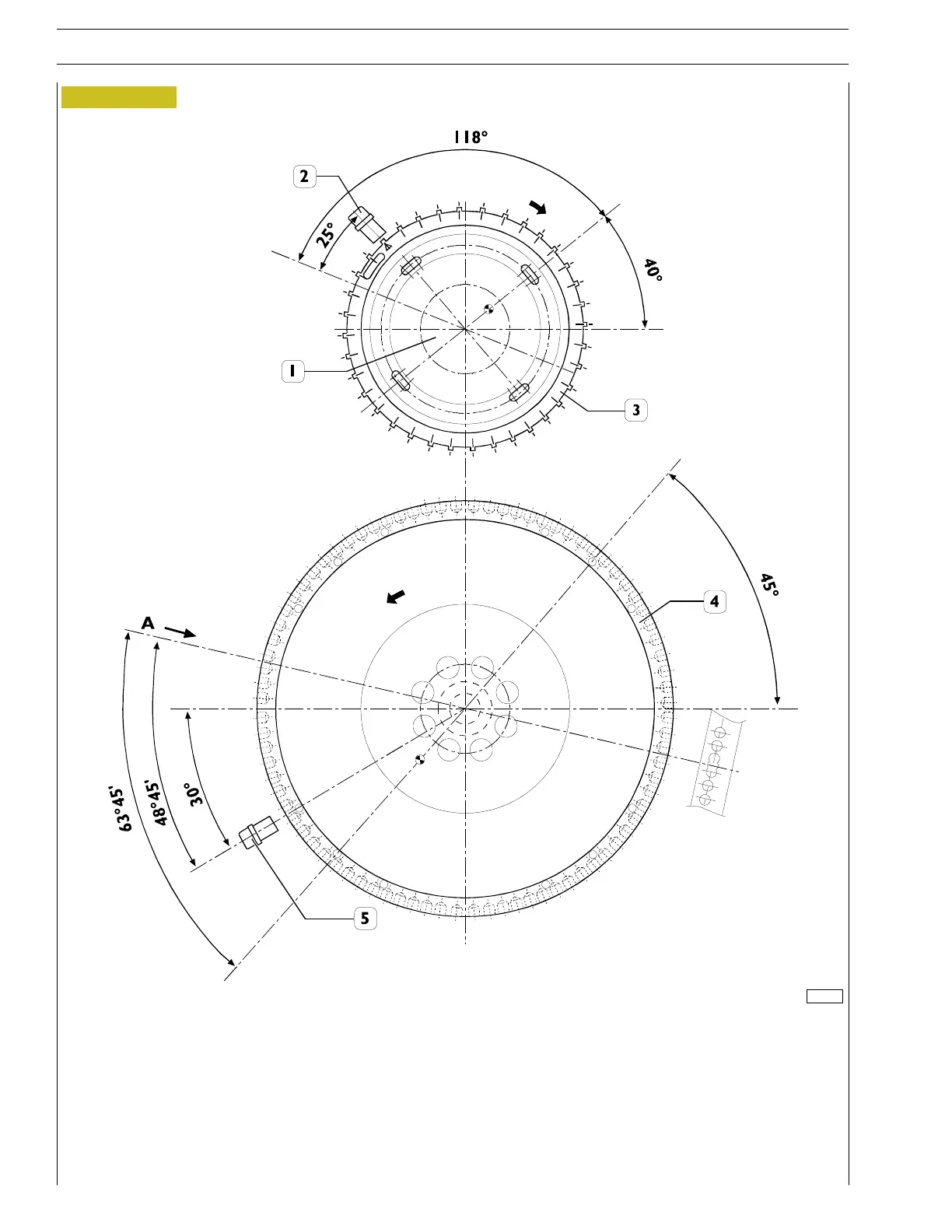

TIMING DIAGRAMS FOR THE FOLLOWING APPLICATIONS:

DRAGON

1. Camshaft - 2. Camshaft rpm sensor - 3. Camshaft flywheel - 4. Engine flywheel -

5. Crankshaft rpm sensor fitted on the flywheel casing

26

SECTION 4 - OVERHAUL AND TECHNICAL SPECIFICATIONS

VECTOR 8 ENGINES

Base - April 2006 Print P2D32V001E
