mP4G/mP4GL Series Motherboard
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
User’s Manual
2•4
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Key Features & Components
This section explains the function and use of key fea-
tures and components on the motherboard. It also indi-
cates where to look in the manual for additional infor-
mation on configuring and using them.
This motherboard uses an Micro ATX form factor PCB in
a design that integrates many features onto the board
including several external ports.
Rear I/O Panel Ports:

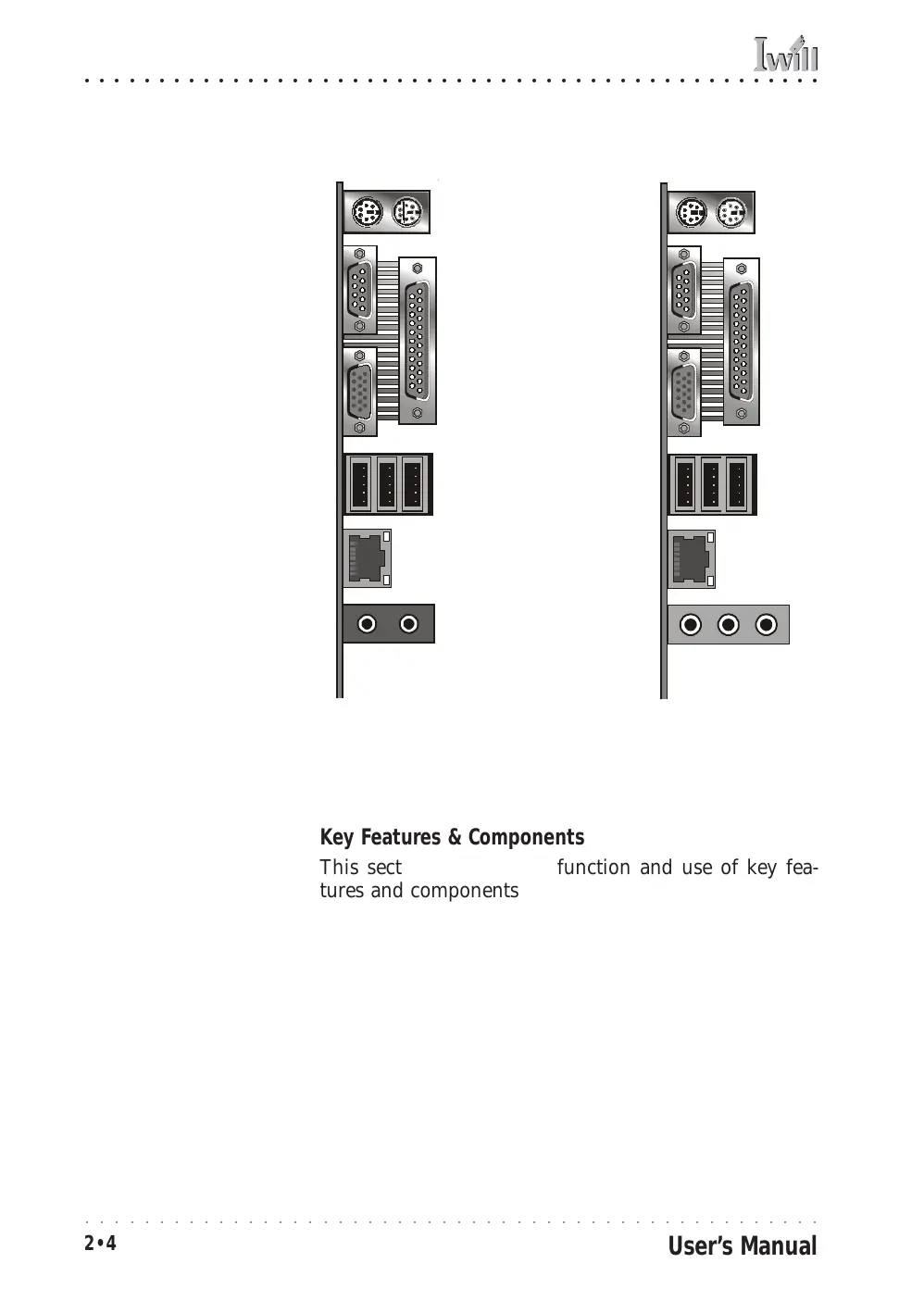

This figure show the ports
on the rear I/O panel. The
ports include, from top to
bottom:
PS/2 ports
Serial, Parallel & VGA ports
Three USB ports
LAN port
Audio ports
The ports have standard
color-coding as follows:
PS/2 Keyboard: Purple
PS/2 Mouse: Green
Serial Port: Teal
Parallel Port: Burgundy
VGA Port: Blue
USB Ports: Black
LAN jack: None
Line Out jack: Lime
Line In jack: Light Blue
Mic In jack: Pink
PS/2 Keyboard, Mouse
USB1, USB2, USB3
Serial (COM1)
VGA display
Parallel
Mic, Line Out
LAN RJ-45
mP4G, mP4GLmP4G-U
Mic
Line In
Line Out
