2: Key Features & Components
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
User’s Manual
2•15
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

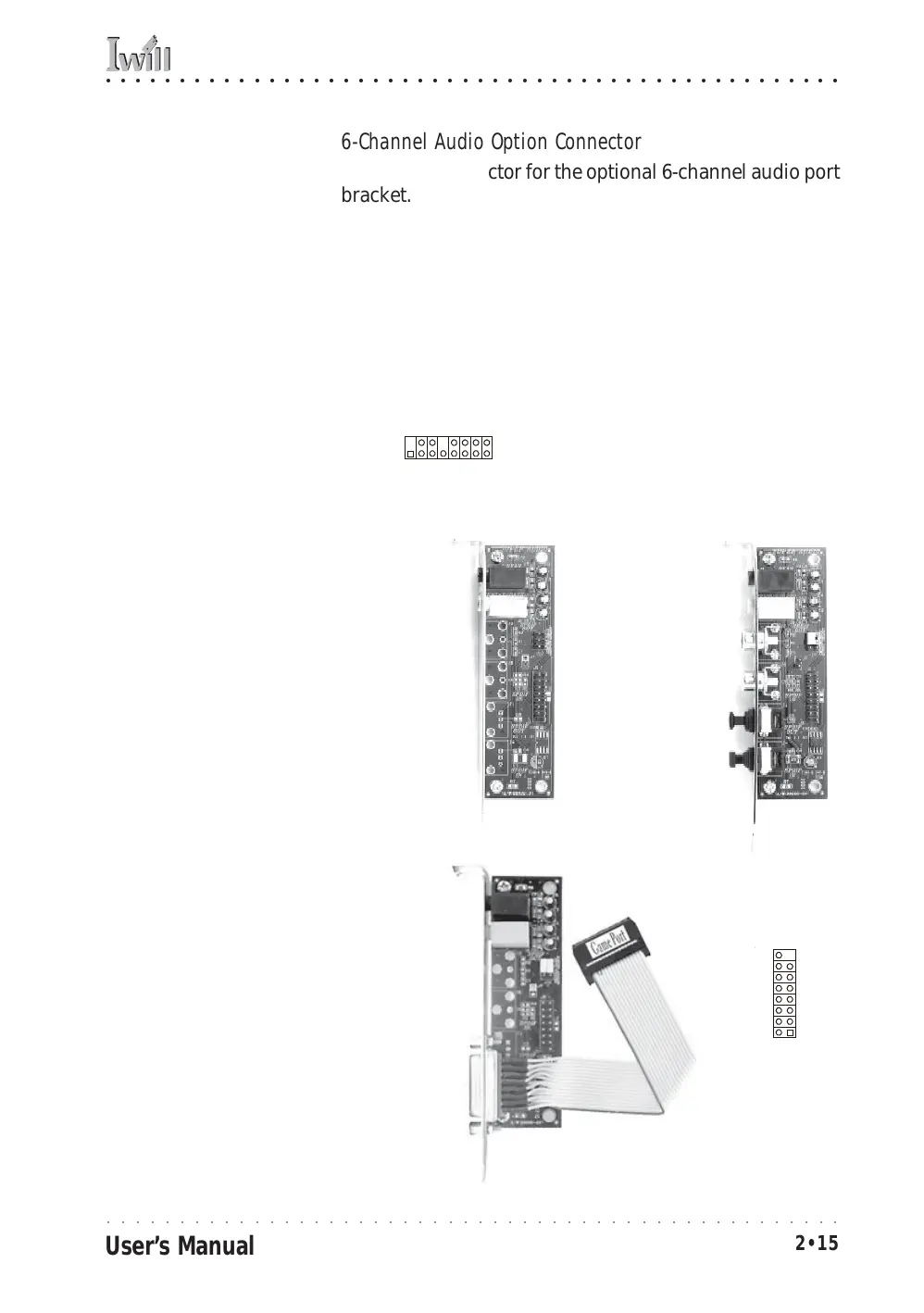

6-Channel Audio Option Connector J1
Function: Connector for the optional 6-channel audio port
bracket.
Description: The 6-channel audio connector supports any
of the three optional 6-channel audio port brackets, 6CH,
6CHG and SuperAudio. The port bracket provides addi-
tional audio connections for a 5.1 speaker system.
More Information: Please see “Connecting Internal Pe-
ripherals” section in Chapter 5 and the “System Features”
section in Chapter 6.
6-Channel Audio:
This combined connector
is for either of the optional
audio port brackets which
provide additional audio
connections for a 5.1
speaker system.
J1 Connector:
S/PDIF
Sub-Woofer & Rear Speakers
6CH Audio Port Bracket SuperAudio Port Bracket
JGAME1 Game
port connector
6CHG Audio Port Bracket
Rear Speakers
Center/Bass
Rear Speakers
Center/Bass
RCA Out
RCA In
SP/DIF Out
SP/DIF In
Rear Speakers
Center/Bass
Game Port
J1
Pin1
Pin1
JGAME1
