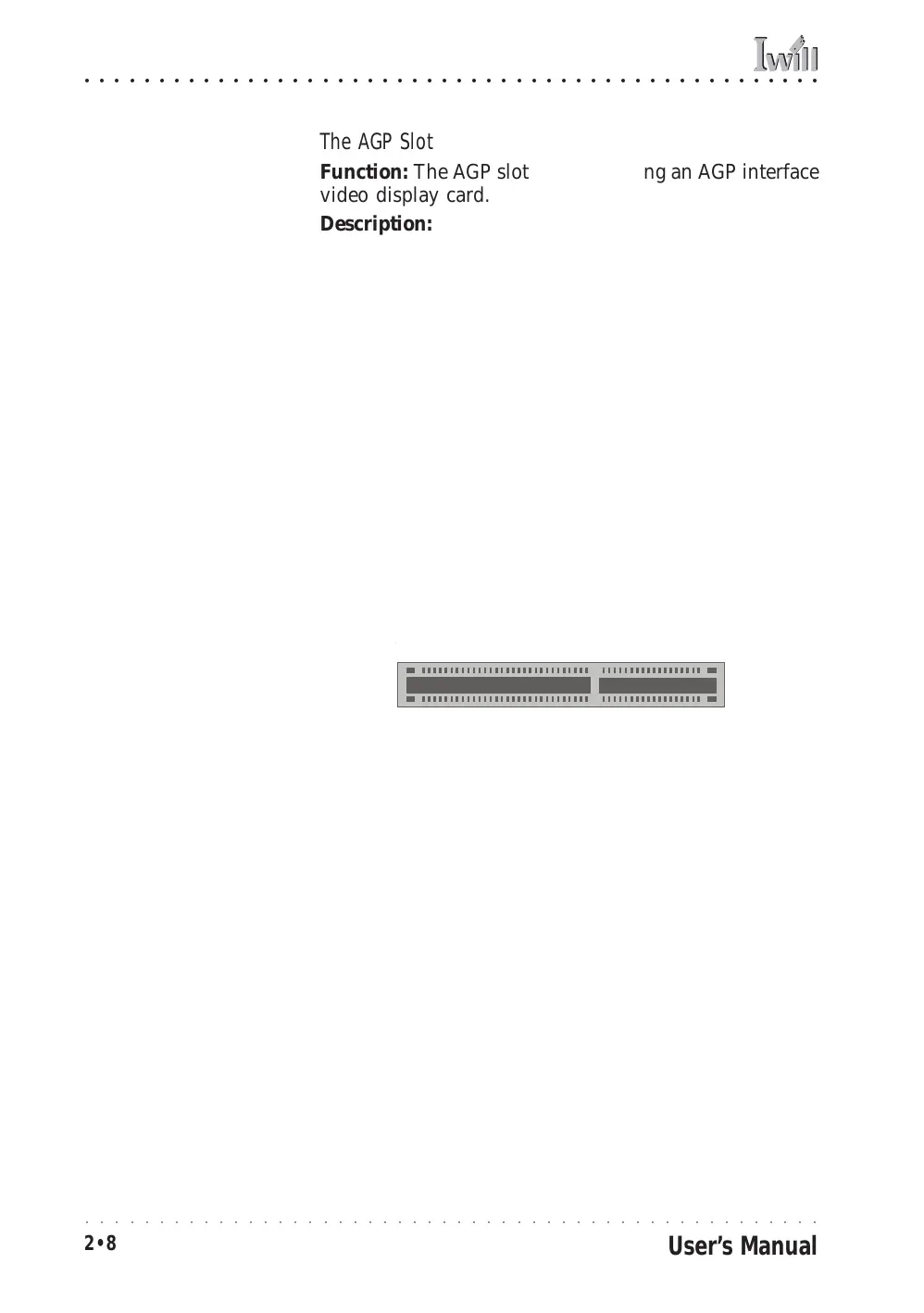

The AGP Slot
Function: The AGP slot is for installing an AGP interface
video display card.
Description: The AGP slot is a high-speed slot exclusively
designed for an AGP video display card. The AGP slot
supports the following type of AGP card:
• AGP 4X – 266MHz data transfer, maximum 1064MB/
second data throughput
The slot only supports 1.5V devices. Do not use a 3.3V
AGP card with this motherboard.
More Information: See the section “Connecting & In-
stalling Internal Peripherals” in Chapter 4. Technical speci-
fications are listed in Chapter 7. Also, see the Advanced
Chipset Features section of “Configuring the CMOS Setup
Utility” in Chapter 5 for information on setting the AGP
memory aperture size.
AGP Slot:
For AGP 4X 1.5V cards
only. Do not use 3.3V
cards.
Important Note:
The AGP slot on the mP4GL
is only for use with DVI
and TV-Out expansion
cards. You CAN NOT use
an AGP display card on the
mP4GL.
AGP slot is for a AGP 4X card
(For DVI & TV-Out only on mP4GL)
AGP1
