mP4G/mP4GL Motherboard
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
User’s Manual
4•10
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
System Memory Recognition
The BIOS will automatically recognize the installed
memory and configure the CMOS Setup Utility. No other
action is required to complete system memory installa-
tion.

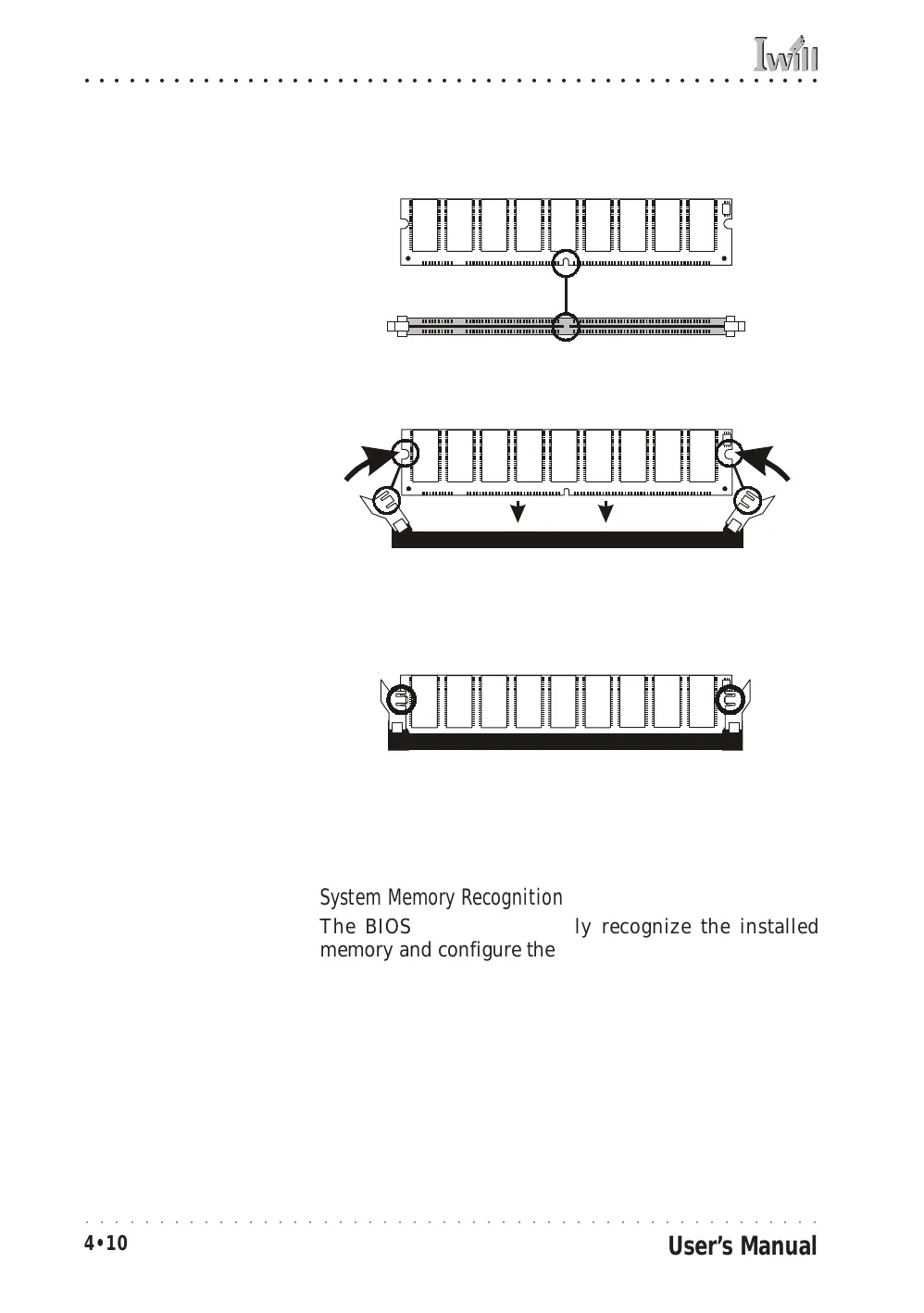

Module Installation:
All modules insert in the
DIMM sockets in the same
way:
1. Align the module to the
socket.
2. The socket retaining
arms should rotate up and
engage the module’s re-
taining notches as you
press it into the socket.
3. The retaining arms must
engage for the module to
be properly installed.
