PCI Expansion Slots
Function: The PCI expansion slots are for installing sys-
tem expansion or “add-on” cards to add additional sys-
tem hardware.
Description: This motherboard has three Bus Master ca-
pable PCI expansion slots. The slots are 32-bit, 33MHz
slots and are PCI 2.2-compliant. The slots provide a fast
high-bandwidth pathway between the motherboard and
expansion cards.
More Information: See the section “Connecting & In-
stalling Internal Peripherals” in Chapter 4. Technical speci-
fications are listed in Chapter 7.

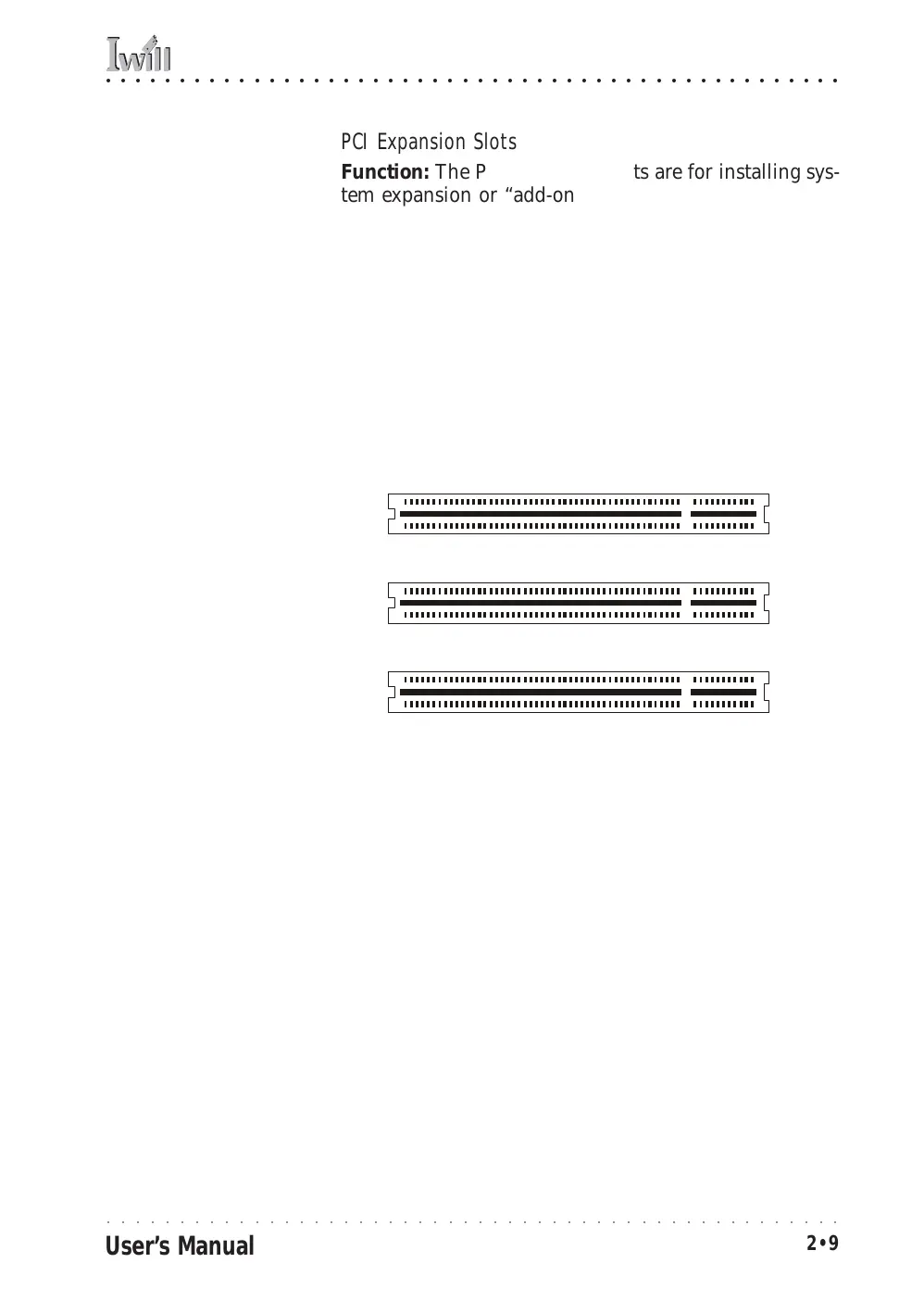

PCI Expansion Slots
All slots are Bus Master
capable and PCI 2.2 com-
pliant
PCI1
PCI2
PCI3
PCI slots are numbered on the board
