5-30 4181384 First Edition
HYDROSTATIC POWER TRAIN
5

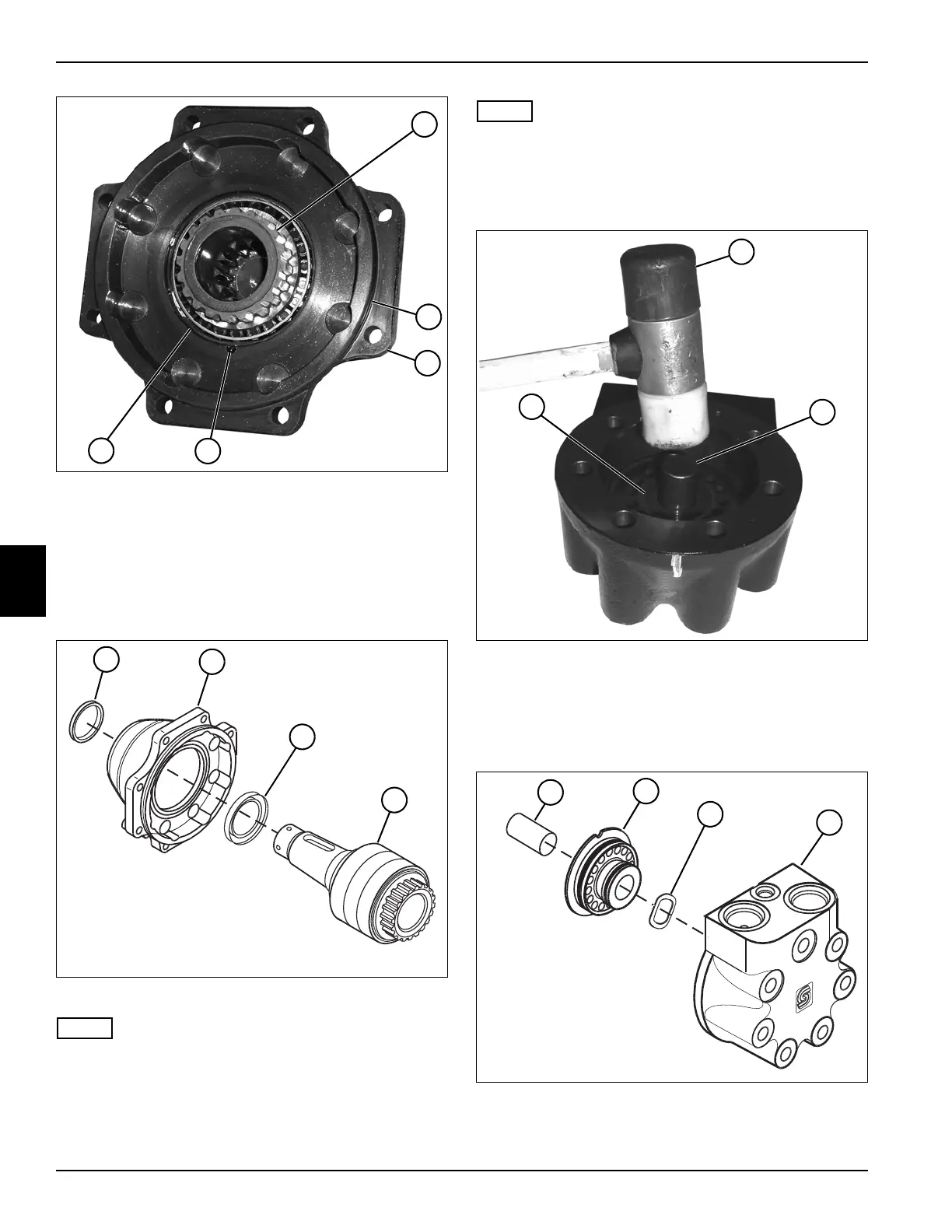

Figure 5-42
17. Remove O-ring (37) from the bearing housing (38).
18. Remove the retaining ring (40) from the bearing
housing (38) by inserting a pick or small screwdriver
in the opening (39) in the bearing housing and
carefully prying the end of the retaining ring out of the
groove.
Figure 5-43
NOTE
Support the base of the bearing housing (42) and apply
pressure to the end of the shaft assembly.
19. Remove the shaft assembly (44) from the bearing
housing (42) using a press.
NOTE
Record the orientation of the dust (41) and shaft (43)
seals before removing to ensure correct installation.
20. Remove dust seal (41) and shaft seal (43) from the
bearing housing (42).
Figure 5-44
21. Fill the hole in the center of the balance plate (47)
with oil, and install the spacer (46).
22. Tap the spacer (46) using a soft-faced hammer (45)
to loosen the balance plate (47).
Figure 5-45
23. Remove the spacer (48), balance plate (49), and
spring washers (50) from the end cover (51).
TN1317
39
37
40
36
38
TN1340
41
42
43
44
TN1341
45
46
~
47
TN1342
48
49
51
50
To Next Page
