Jacobsen AR-3 User Manual

HYDROSTATIC POWER TRAIN
4181384 First Edition 5-41
5

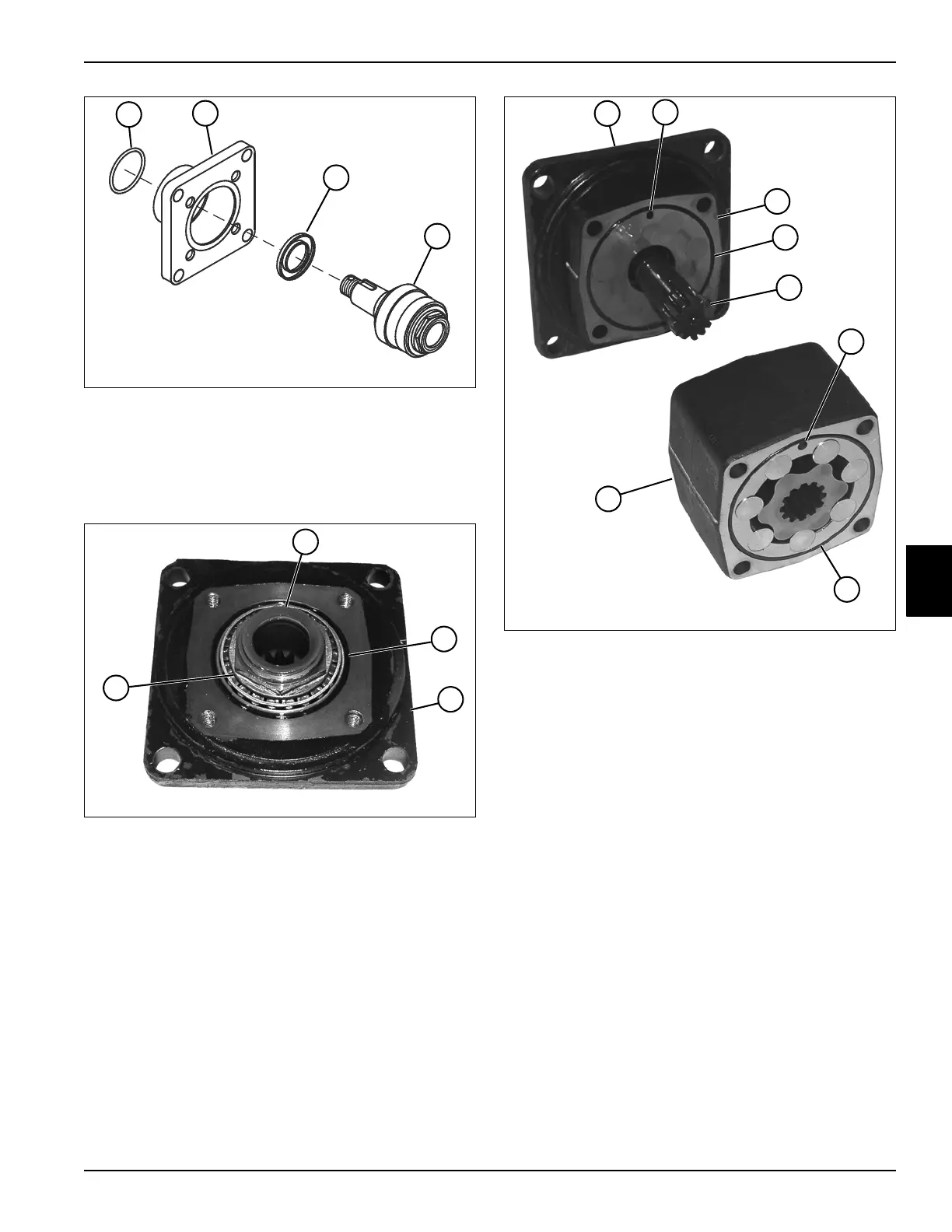

Figure 5-76
1. Install a new shaft seal (3) in bearing housing (2).
2. Install a new O-ring (1) in the bearing housing (2).
3. Install the shaft assembly (4) in the bearing housing
(2).
Figure 5-77
4. Place the spring washer (5) on the motor output shaft
(8).
5. Install new O-ring (6) in the bearing housing (7).
Figure 5-78
6. Install a new O-ring (12) in the intermediate plate
(11).
7. Install the intermediate plate (11) on the bearing
housing assembly (9).
8. Install cardan shaft (13) in the intermediate plate
(11).
9. Install the gear wheel set (16) over the cardan shaft
(13) and on the intermediate plate (11), aligning the
port (14) on the gear wheel set with the port (10) on
the intermediate plate.
10. Install a new O-ring (15) in the gear wheel set (16).
TN1306
1
2
3
4
TN1298
5
8
6
7
TN1296
11
16
13
9
12
15
10
14
