CUTTING UNITS
4181384 First Edition 8-43
8
Disassembly, Inspection, and Assembly

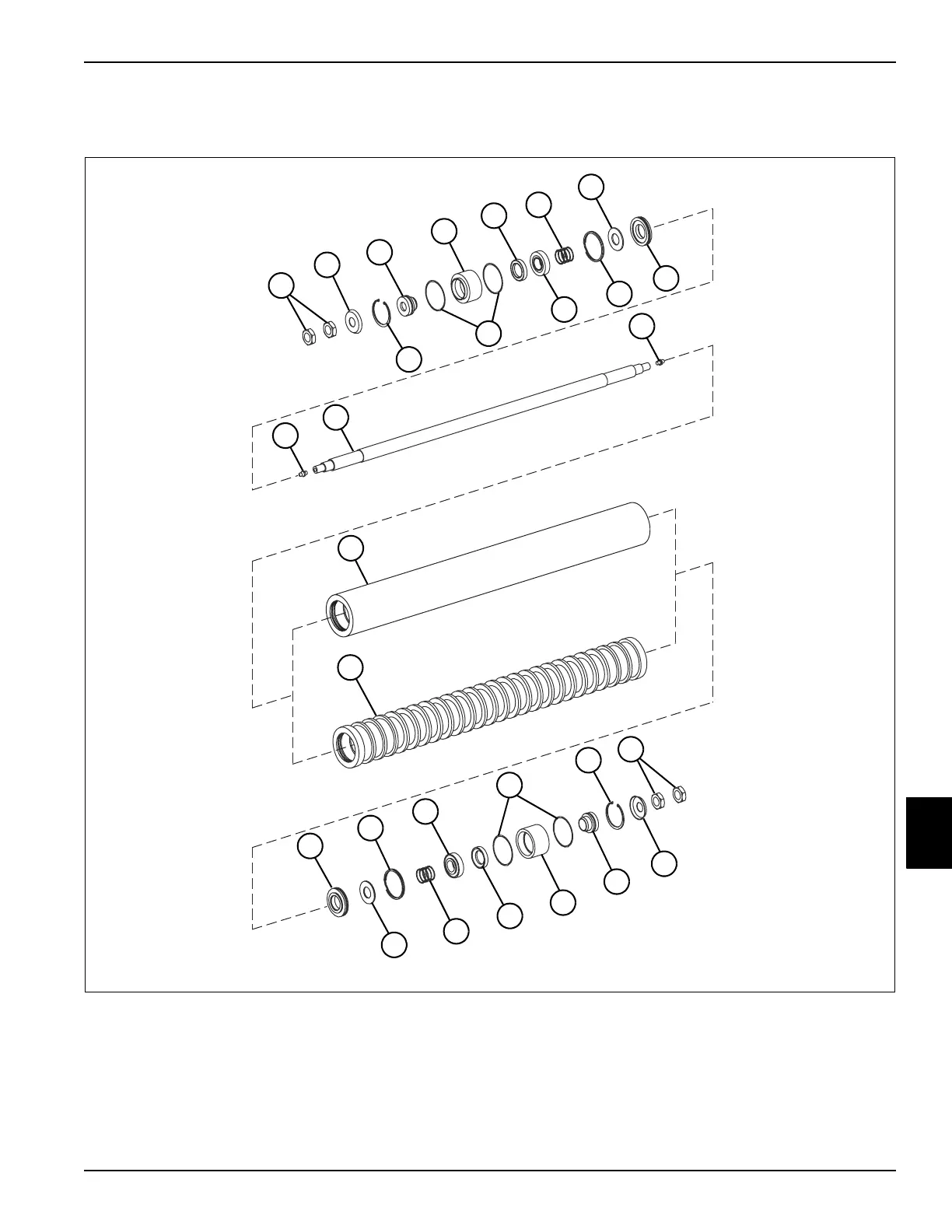

See Figure 8-41.
Figure 8-41
1 Jam Nut (4) 5 Rotary Lip Seal (2) 9 Seal Ring (2) 13 Grease Fitting (2)
2 Shield (2) 6 Spring (2) 10 Taper Roller Bearing (2) 14 Shaft
3 Seal Journal (2) 7 Washer (2) 11 O-Ring (4) 15 Plain Roller
4 Bearing Housing (2) 8 Ring Carrier (2) 12 Circlip (2) 16 Grooved Roller
TN1272
8
15
16
7
4
5
14
6
3
2
9
10
11
12
1
1
2
3
4
5
6
7
12
10
9
8
13
13
11
