ACCESSORIES AND MISCELLANEOUS REPAIR
4181384 First Edition 9-7
9

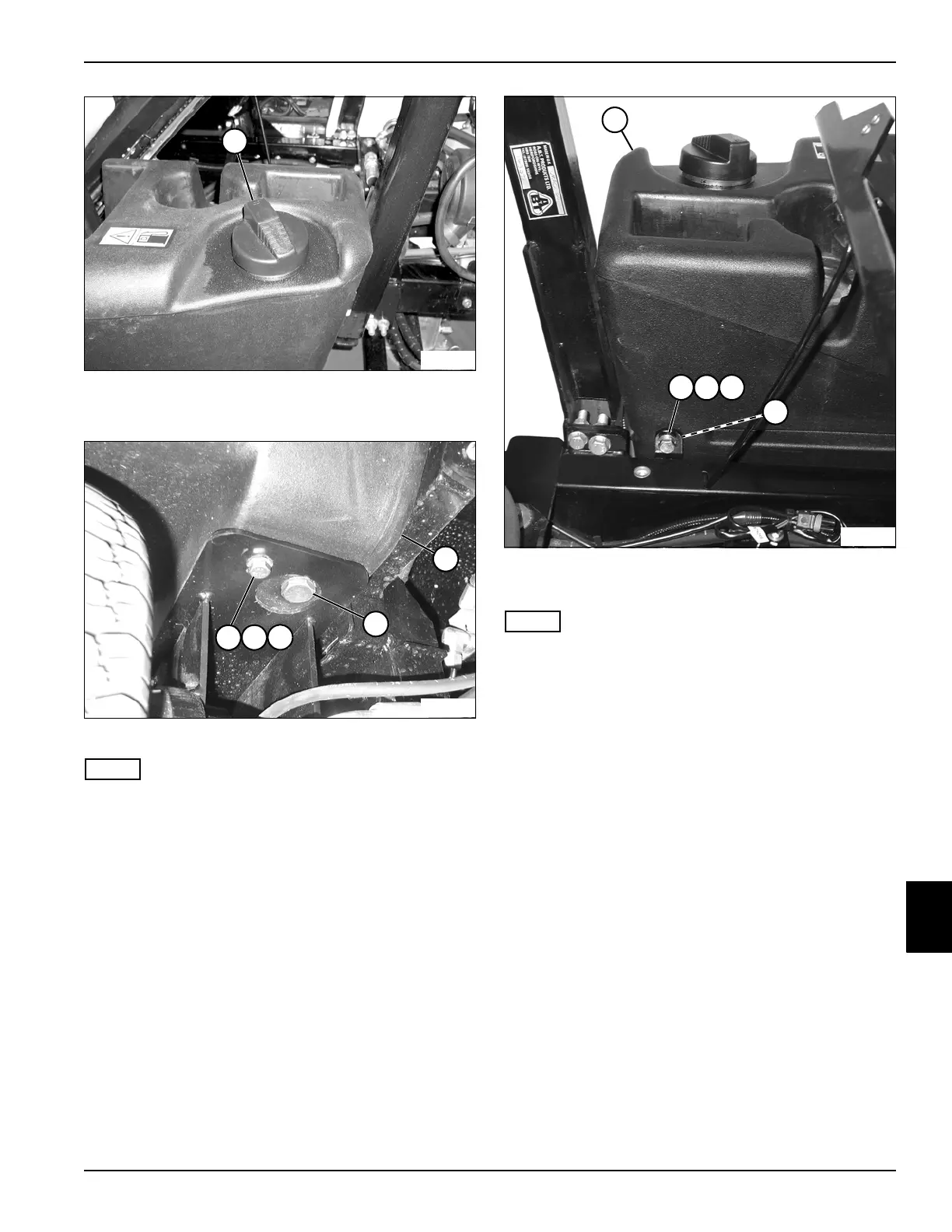

Figure 9-11
4. Remove filler cap (1).
Figure 9-12
NOTE
The fuel tank capacity is 6.6 gal (25 L).
5. Place a suitable container under the fuel tank (2).
6. Remove the drain plug (3) and allow fuel to drain into
container.
7. Replace the fuel filler cap (1) and drain plug (3).
8. Remove screw (4), lock washer (5), and flat washer
(6) from fuel tank (2).
Figure 9-13
9. Support the fuel tank (7).
NOTE
One flat washer is placed between the mounting bracket
and the fuel tank.
10. Remove screw (8), lock washer (9), and flat washers
(10 and 11) from the rear of the fuel tank (7).
1
TN1019
3
TN1020
2
4
5
6
8
TN1023
7
9
10
11
To Next Page
