ACCESSORIES AND MISCELLANEOUS REPAIR
4181384 First Edition 9-17
9

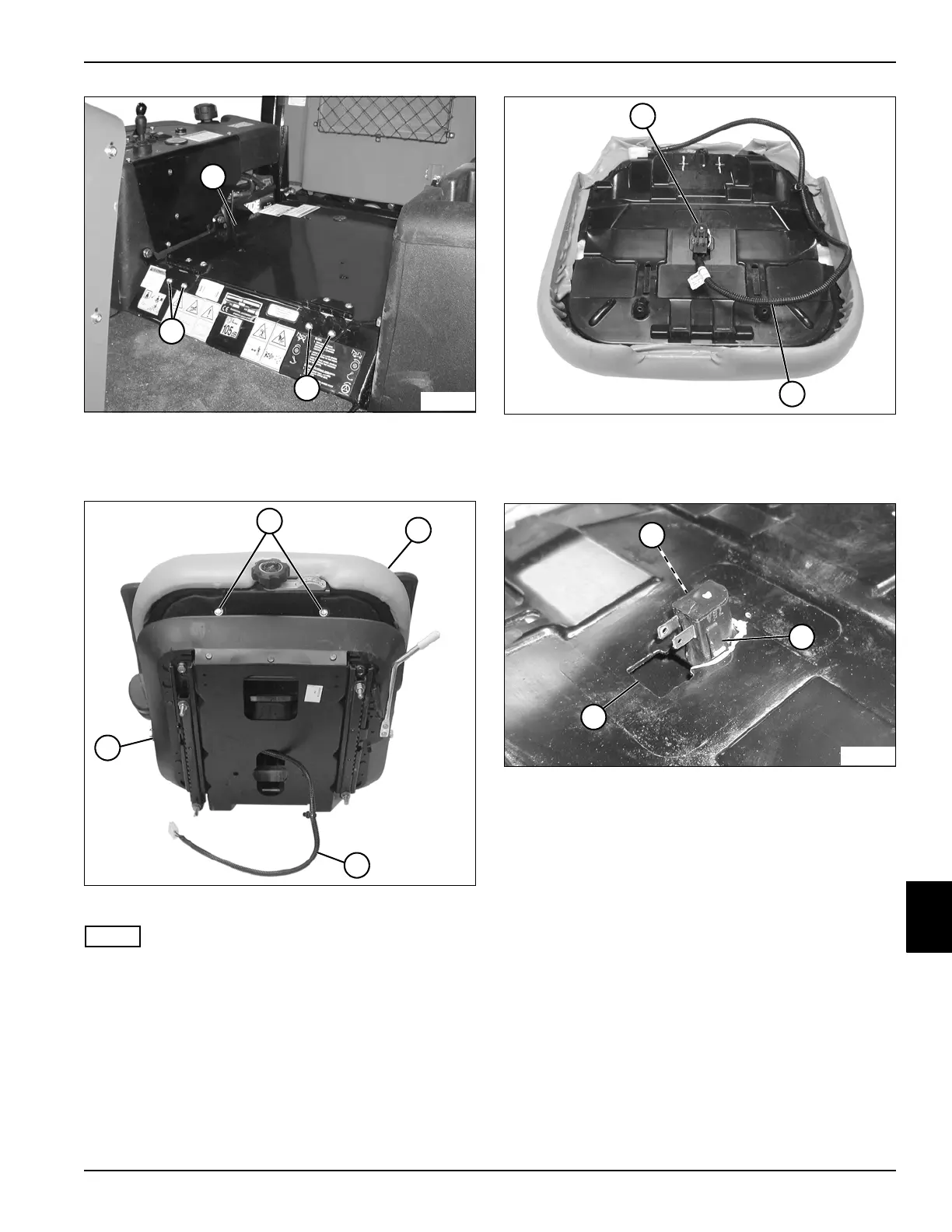

Figure 9-42
10. Remove four Torx
®
screws (16), and remove the seat
platform (15).
Figure 9-43
NOTE
Perform steps 11 through 15 if the seat switch is to be
removed.
11. Place the seat on a solid working surface.
12. Remove two screws (17) from the seat frame (20).
13. Remove the seat cushion (18), routing the seat
switch wiring harness (19) through the seat frame
(20).
Figure 9-44
14. Disconnect the wiring harness (22) from the seat
switch (21).
Figure 9-45
15. Depress the tabs (23) on both sides of the seat
switch, and remove the switch through the opening
(24) in the bottom of the seat cushion.
Installation Note
Install the seat switch and seat by reversing the order of
removal.
15
TN1028
16
16
18
TN1030
17
20
19
21
TN1031
22
TN1032
23
24
23
