ENGINE
4181384 First Edition 3-15
3

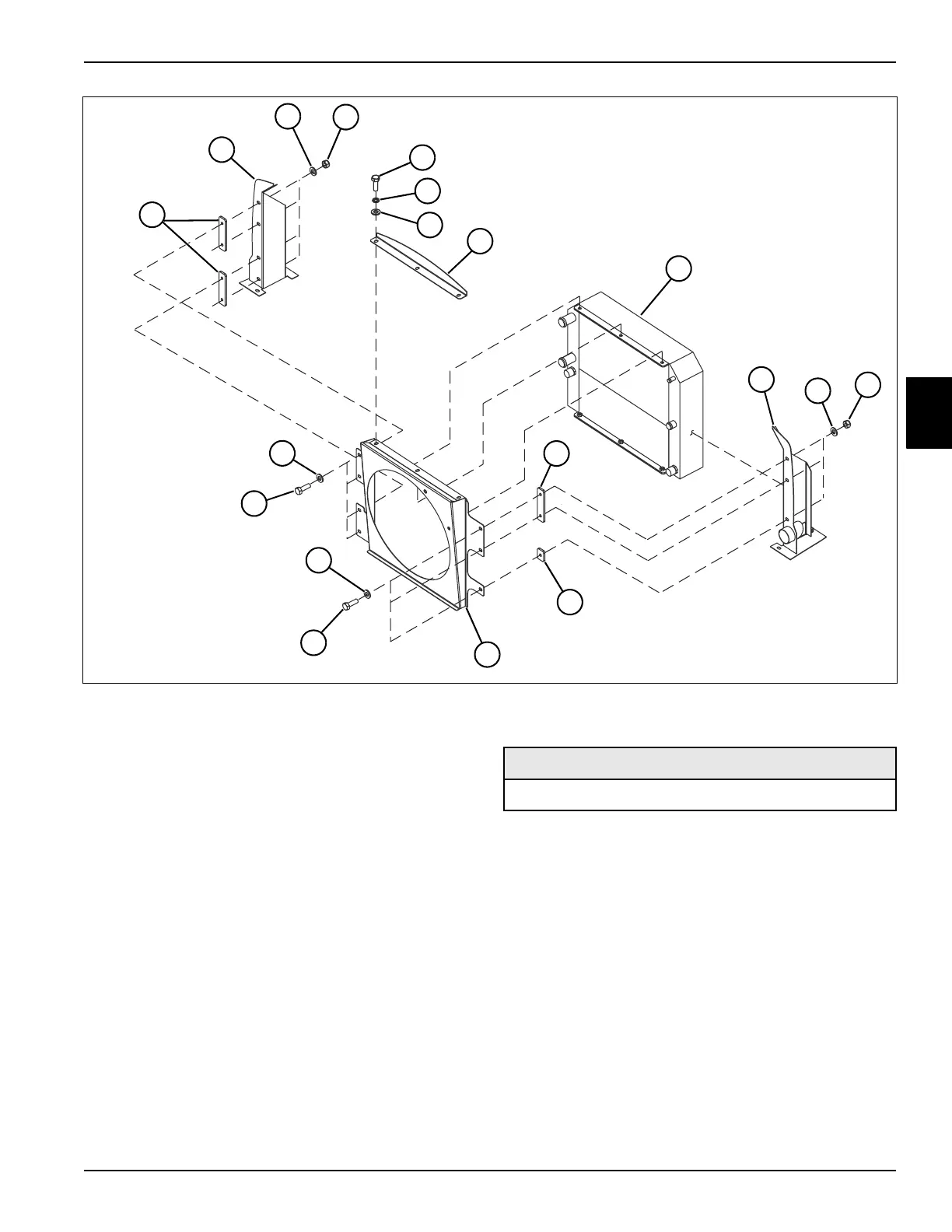

Figure 3-24
21. Remove RTV sealant from all seams and joints.
22. Remove three screws (39), lock washers (40), and
flat washers (41), and remove top flange (42) from
radiator/hydraulic oil cooler (43).
23. Remove four lock nuts (38), flat washers (37), screws
(51), and lock washers (52), and remove two spacers
(35) and right radiator support (36) from
radiator/hydraulic oil cooler (43).
24. Remove four lock nuts (46), flat washers (45), screws
(49), and lock washers (50), and remove two spacers
(35 and 47), left radiator support (44), and cowling
(48) from radiator/hydraulic oil cooler (43).
Installation Notes
• Install the radiator/hydraulic oil cooler by reversing
the order of removal.
• Apply RTV sealant to all joints and seams after the
radiator/hydraulic oil cooler has been installed.
TN1190
35
43
36
37
38
39
40
41
42
35
44
45
46
47
48
49
50
51
52
Required Materials
RTV Sealant
To Next Page
