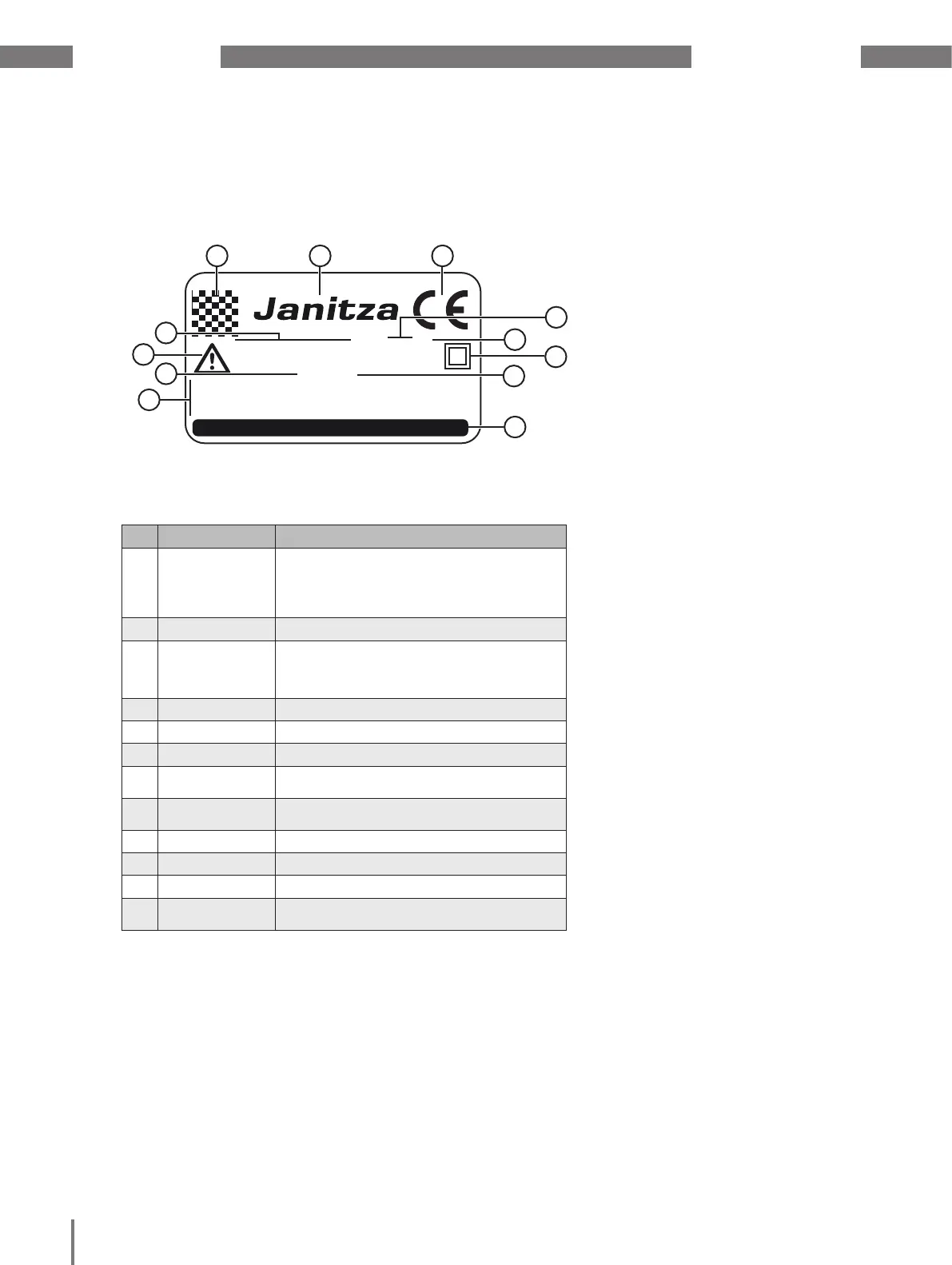

4.3 Identification of the device (rating plate)
Item Designation Description
1 Operational data
· Supply voltage, AC in V
· Nominal frequency in Hz
· Power consumption in VA
· Overvoltage category
· Rated current
2 Part number Manufacturer’s part number
3
Symbol for
“Danger sign”
General hazard symbol.
Be certain to observe the warning notices applied
to the device and shown in the documentation in
order to avoid possible injury or even death.
4 Device type Device designation
5 Data matrix code Coded manufacturer data
6 Manufacturer’s logo Logo of the device manufacturer
7
CE conformity
marking
see section „Warning“ on page 11.
8
Manufacturer-
specific data
Manufacturer data
9 Hardware version Hardware version of the device
10 Protection class II, protective insulation
11 Type/serial number Number for identification of the device
12
Designation of ori-
gin/web address
Country of origin and manufacturer’s web address
Tab.: Rating plate
Supply: 1 phase: 115-277V, 3 phases 80 - 227V; 50/60Hz; 1.5VA
Voltage m.:3 phase - 4 wire: 277/480V(300V
CAT III) 45 ..65 Hz
Current m. : 6A max. (300V CAT II)
Made in Germany • www.janitza.com
UMG 103-CBM
XXXX/XXXX1234567
10H • 1
UMG 103-CBM UMG 96-PA
MID
M19
0366
3 x 230/400 V
.
0,01-1(6) A
.
50 Hz
.
2018
Cl.B
.
10000 Imp/kWh
.
-10 °C...+55 °C
Janitza electronics GmbH
Vor dem Polstück 6
.
D-35633 Lahnau
UMG96-PA-MID
VDE-40048947
3
2
4
5 6 7
10
12
11
9
8
1
