5. Mounting
· The device meets the operating conditions ac-
cording to DIN IEC 60721-3-3 and is intended
for weather-protected, stationary use.
· Mount the meter in switch cabinets or small
distribution boards according to DIN 43880.
The device is to be mounted on a 35-mm
mounting rail to DIN EN 60715.

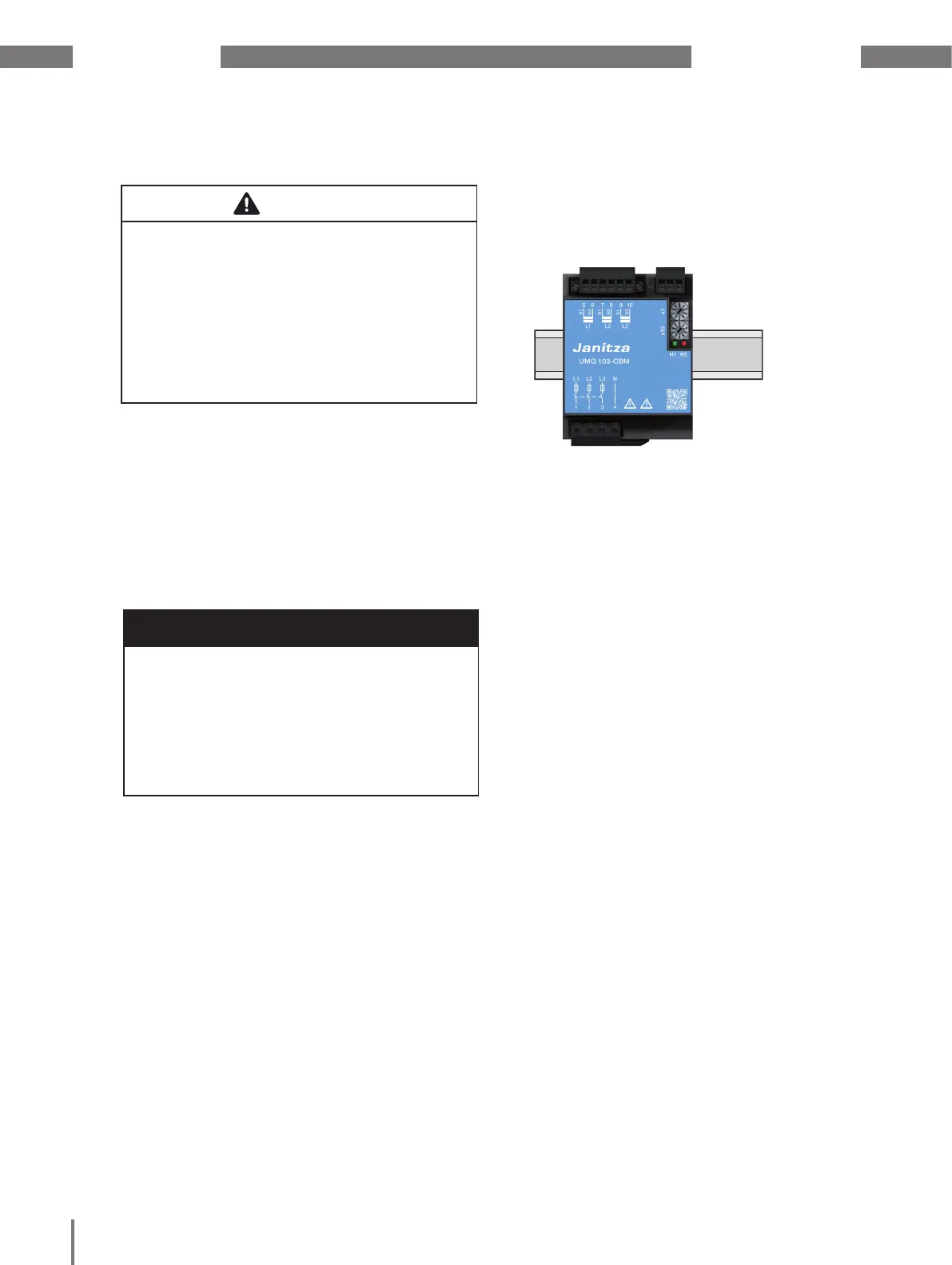

Fig. Device on mounting rail to DIN EN 60715.
5.1 Mounting orientation
• The mounting orientation is arbitrary.
• Forced ventilation is not required
ATTENTION
Material damage due to improper handling or
disregard of the assembly instructions!
Disregard of the installation instructions can dam-
age or destroy your device.
· Use suitable mounting rails according to DIN
EN 60715 for mounting the meter!
· Provide adequate air circulation in your installa-
tion environment and, as needed, cooling when
the temperatures are high.
5.2 Installation location
DANGER
Danger of electric shock!
Electric shocks lead to serious injuries, including
death.
· Disconnect your system from the power supply
before mounting and connecting the device!
· Secure it against being switched on!
· Check to be sure it is de-energized!
· Ground and short circuit!
· Cover or block off adjacent live parts!
· The installation must only be carried out by
qualified personnel with electrical training!
